Blum

The most versatile system of face frame hinges.

Sold per plate — without screws**

Sold per plate — without screws**

• Recommended screws: #6 flat head
• Available while supplies last.

The COMPACT CLIP hinge combines more than 50 years of innovations into a single hinge. Featuring Blum's proven CLIP technology, doors can be removed and reattached quickly and tool free. The hinge comes pre-attached to the plate. Designed with soft-close BLUMOTION and three-dimensional cam adjustments, COMPACT CLIP is user-friendly for cabinetmakers and installers alike.

Sold per hinge — without screws **

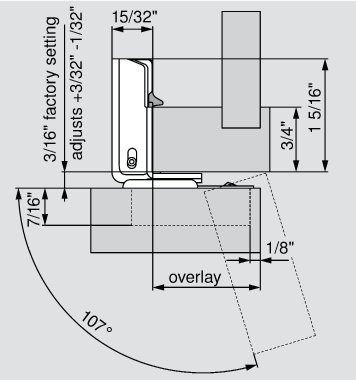

Restricts opening angle of 30/31/38/39 Compact Blumotion hinge to 86°. Used in areas where the cabinet door is next to a wall or hood. Angle restriction clip must be attached before the hinge is fastened to the face frame. This restriction clip will not work with non-soft-close Compact hinges.

Sold per clip

Great option to cover the Hinge Arm.

Sold per cover cap

1/16" Spacer for use under the hinge cup to reduce drilling depth on thin or profile doors.

Sold per spacer

The COMPACT CLIP hinge combines more than 50 years of innovations into a single hinge. Featuring Blum's proven CLIP technology, doors can be removed and reattached quickly and tool free. The hinge comes pre-attached to the plate. Designed with soft-close BLUMOTION and three-dimensional cam adjustments, COMPACT CLIP is user-friendly for cabinetmakers and installers alike. 31C158B.20

Sold per hinge — without screws**

Restricts opening angle of 30/31/38/39 Compact Blumotion hinge to 86°. Used in areas where the cabinet door is next to a wall or hood. Angle restriction clip must be attached before the hinge is fastened to the face frame. This restriction clip will not work with non-soft-close Compact hinges.

Sold per clip

1/16" Spacer for use under the hinge cup to reduce drilling depth on thin or profile doors.

Sold per spacer

The COMPACT CLIP hinge combines more than 50 years of innovations into a single hinge. Featuring Blum's proven CLIP technology, doors can be removed and reattached quickly and tool free. The hinge comes pre-attached to the plate with a pre-mounted screw to save time and improve installation accuracy. Designed with soft-close BLUMOTION and three-dimensional cam adjustments, COMPACT CLIP is user- friendly for cabinetmakers and installers alike.

Sold per hinge — without screws

Restricts opening angle of 30/31/38/39 Compact Blumotion hinge to 86°. Used in areas where the cabinet door is next to a wall or hood. Angle restriction clip must be attached before the hinge is fastened to the face frame. This restriction clip will not work with non-soft-close Compact hinges.

Sold per clip

Great option to cover the Hinge Arm.

Sold per cover cap

1/16" Spacer for use under the hinge cup to reduce drilling depth on thin or profile doors.

Sold per spacer

The COMPACT CLIP hinge combines more than 50 years of innovations into a single hinge. Featuring Blum's proven CLIP technology, doors can be removed and reattached quickly and tool free. The hinge comes pre-attached to the plate with a pre-mounted screw to save time and improve installation accuracy. Designed with soft-close BLUMOTION and three-dimensional cam adjustments, COMPACT CLIP is user- friendly for cabinetmakers and installers alike. 31C158BS20

Sold per hinge — screw-on without screws

Restricts opening angle of 30/31/38/39 Compact Blumotion hinge to 86°. Used in areas where the cabinet door is next to a wall or hood. Angle restriction clip must be attached before the hinge is fastened to the face frame. This restriction clip will not work with non-soft-close Compact hinges.

Sold per clip

1/16" Spacer for use under the hinge cup to reduce drilling depth on thin or profile doors.

Sold per spacer

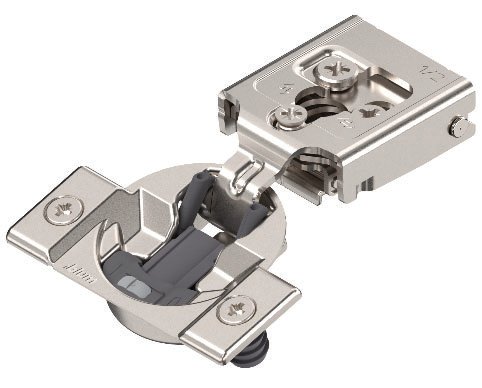

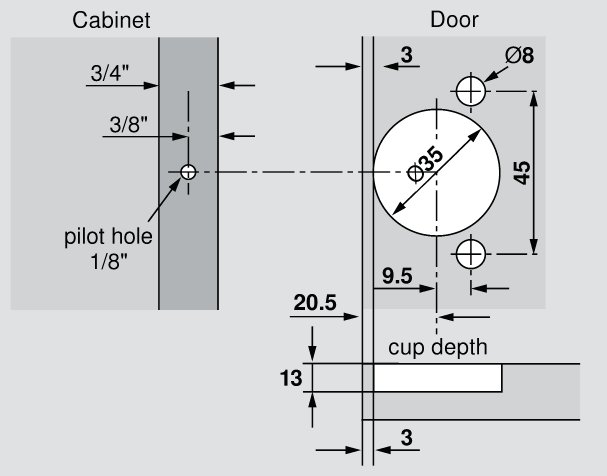

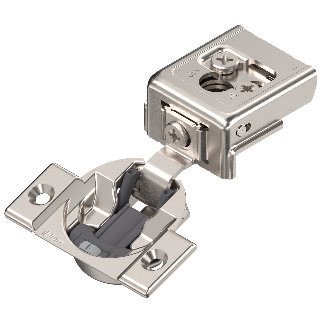

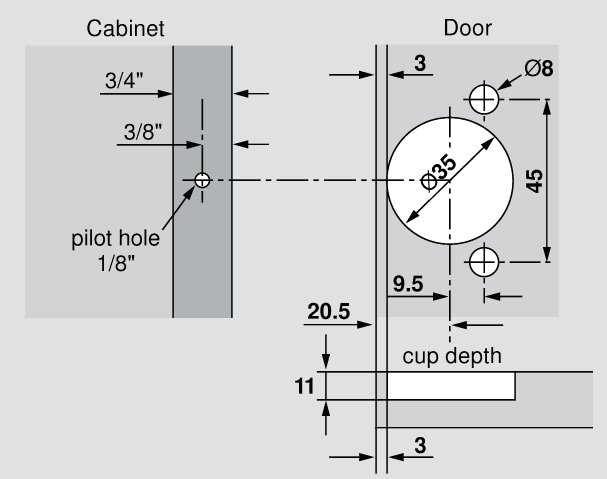

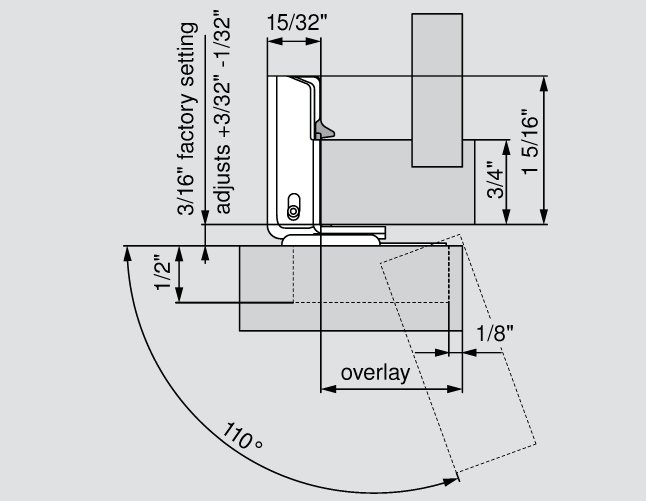

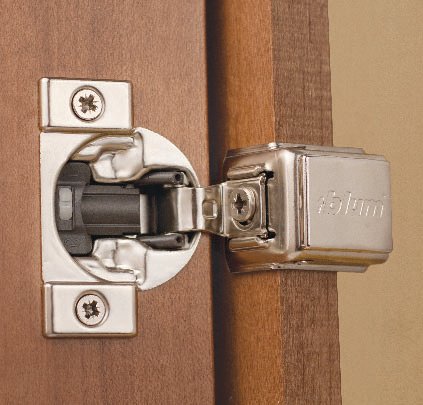

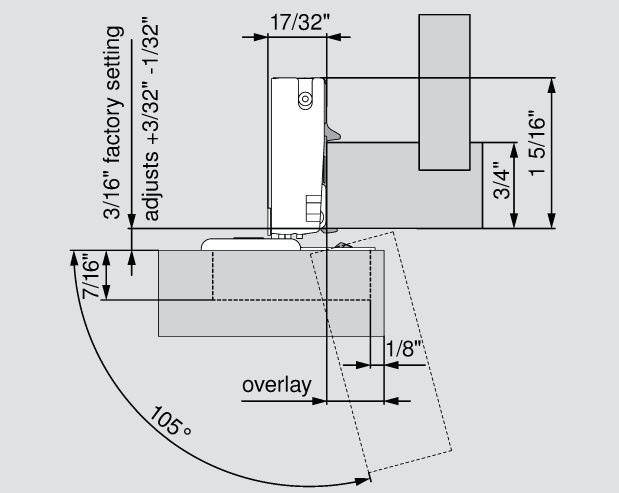

One piece design with adjustment for small overlays. Cover cap available for all 38N hinges. Please inquire. See page 114 for COMPACT 38N hinges with integrated BLUMOTION.

Sold per hinge — without screws**

• **Recommended screws: #10 pan head or #8 truss head (Also, #6 flat head for screw-on version)

Excellent for use on doors next to range hoods and anywhere the door needs to stop to avoid hitting deeper objects next to it.

Sold per hinge — without screws - Recommended screws: #10 pan head or #8 truss head.

Decreases door overlay in 1/32" increments. Can be stacked to achieve 1/16", 3/32", etc. overlay reduction. Zinc coated steel.

Sold per spacer

Cover caps available for all 38N hinges. Please inquire. This COMPACT concealed hinge features the new BLUMOTION soft closing mechanism that provides the quality of motion customers have come to expect from BLUM hardware. The overload protection feature saves the BLUMOTION mechanism from damage when the door is slammed. The BLUMOTION function can be easily deactivated on one of the hinges, allowing small or light doors to close with the same quality of motion.

Sold per hinge — without screws**

• Recommended screws: #10 pan head or #8 truss head (also, #6 Flat head for screw-on version.)
• Available while supplies last. Transitioning to Compact Clip.
• (Shown with cover cap)

Restricts opening angle of 38/39 Compact Blumotion hinge to 86°. Used in areas where the cabinet door is next to a wall or hood. Angle restriction clip must be attached before the hinge is fastened to the face frame. This restriction clip will not work with non-soft-close Compact hinges.

Sold per clip

1/16" Spacer for use under the hinge cup to reduce drilling depth on thin or profile doors.

Sold per spacer

Cover cap available for all 39C hinges. Please inquire. See page 116 for COMPACT 39C hinges with integrated

Sold per hinge — without screws**

• BLUMOTION.
• Recommended screws: #10 pan head or #8 truss head

Decreases door overlay in 1/32" increments. Can be stacked to achieve 1/16", 3/32", etc. overlay reduction. Zinc coated steel.

Sold per spacer

Sold per hinge — without screws - Recommended screws: #6 flat head.

• Available while supplies last. Transitioning to Compact Clip.

Cover caps available for all 39C hinges. Please inquire. This COMPACT concealed hinge features the new BLUMOTION soft closing mechanism that provides the quality of motion customers have come to expect from BLUM hardware. The overload protection feature saves the BLUMOTION mechanism from damage when the door is slammed. The BLUMOTION function can be easily deactivated on one of the hinges, allowing small or light doors to close with the same quality of motion.

Sold per hinge — without screws**

• Recommended screws: #10 pan head or #8 truss head (Also, #6 Flat head for screw-on version.)
• Available while supplies last. Transitioning to Compact Clip.
• (Shown with cover cap)

Restricts opening angle of 38/39 Compact Blumotion hinge to 86°. Used in areas where the cabinet door is next to a wall or hood. Angle restriction clip must be attached before the hinge is fastened to the face frame. This restriction clip will not work with non-soft-close Compact hinges.

Sold per clip

1/16" Spacer for use under the hinge cup to reduce drilling depth on thin or profile doors.

Sold per spacer

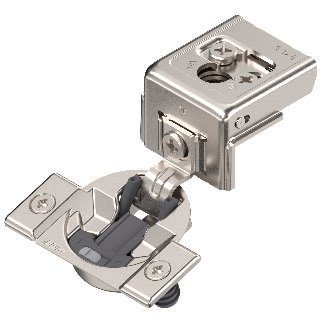

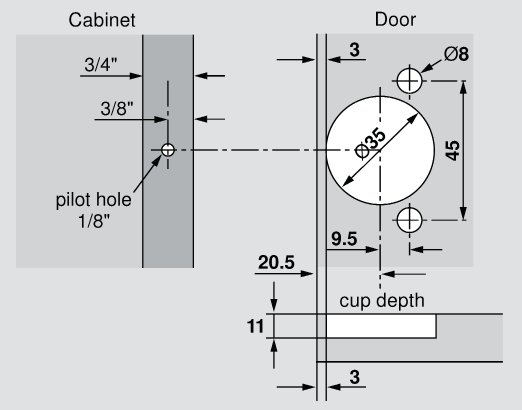

One piece design with side adjustment for large overlays. Cover caps available for all 38C hinges. Please inquire.

Sold per hinge — without screws**

• See page 118 for COMPACT
• 38C hinges with integrated
• BLUMOTION.
• Available while supplies last. Transitioning to Compact Clip.
• **Recommended screws: #10 pan head or #8 truss head (Also, #6 flat head for screw-on version)

Excellent for use on doors next to range hoods and anywhere the door needs to stop to avoid hitting deeper objects next to it.

Sold per hinge — without screws - Recommended screws: #10 pan head or #8 truss head.

Decreases door overlay in 1/32" increments. Can be stacked to achieve 1/16", 3/32", etc. overlay reduction. Zinc coated steel.

Sold per spacer

• Blum's selection of Face Frame Hinges.

Cover caps available for all 38C hinges. Please inquire. This COMPACT concealed hinge features the new BLUMOTION soft closing mechanism that provides the quality of motion customers have come to expect from BLUM hardware. The overload protection feature saves the BLUMOTION mechanism from damage when the door is slammed. The BLUMOTION function can be easily deactivated on one of the hinges, allowing small or light doors to close with the same quality of motion. This hinge fastens to the face of the cabinet and can be used to achieve overlays greater than 1 3/8".

Sold per hinge — without screws**

Sold per hinge — without screws - Recommended screws: #6 Flat head.

• Recommended screws: #10 pan head or #8 truss head (Also, #6 Flat head for screw-on version.)
• Available while supplies last. Transitioning to Compact Clip.

(Shown with cover cap) Restricts opening angle of 38/39 Compact Blumotion hinge to 86°. Used in areas where the cabinet door is next to a wall or hood. Angle restriction clip must be attached before the hinge is fastened to the face frame. This restriction clip will not work with non-soft-close Compact hinges.

Sold per clip

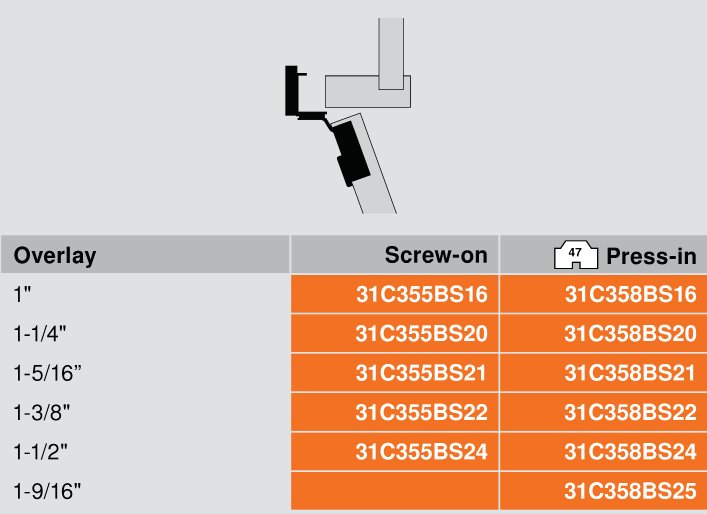

Use the overlay tables to determine which mounting plate works for your project. Cross reference the Bore Distance with the Plate Height to determine the overlay millimeters. (White boxes.) 110° 110° + 120° + 170°

Sold per hinge

Mounting Plates listed on page 145.

• **Recommended screws: #6 flat head.

Reduce the opening angle of the CLIP top hinge. Installs quickly and easily without tools.

Sold per clip

For frameless application, use For frameless application, use 175H7190 mounting plate. 175H7190 mounting plate.

Sold per hinge

• **107° and 110° hinge will not contact the frame when opened
• Available while supply lasts. Use 71T3680 for replacement.
• Recommended screws: #6 Flathead

Reduce the opening angle of the CLIP top hinge. Installs quickly and easily without tools.

Sold per clip

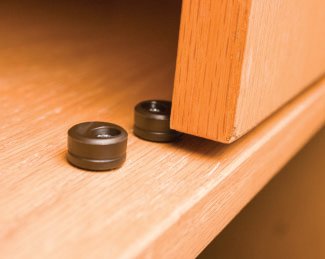

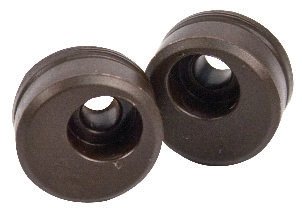

Designed for use with Euro Style frameless cabinets or can be used in face frame cabinets by attaching a block behind the frame. Eccentric cam stop is easily rotated to where you want the door to stop. Great for inset applications. Available in brown or white.

Sold per stop

Sold per hinge

* *

Sold per hinge

• Recommended screws: #6 Flathead

Sold per hinge

Sold per hinge

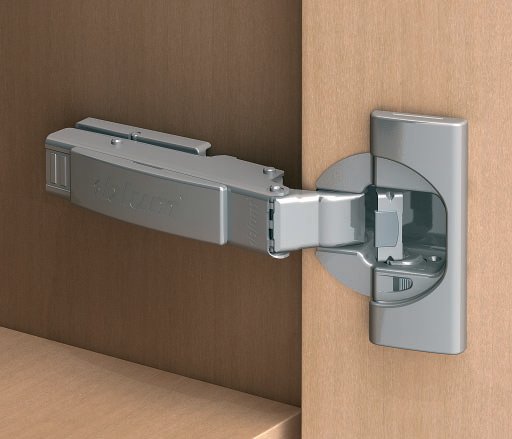

Reduce the opening angle of the CLIP top BLUMOTION hinge. Installs quickly and easily without tools.

Sold per clip

BLUMOTION integrated into the hinge arm Deactivation switch for small/light doors Zero Protrusion, suitable for interior rollouts Three-dimensional adjustment For door thicknesses up to 30 (1-3/16") Angle restriction clips available All metal hinge, nickel-plated Hinge arm / cup cover caps available

Mounting plates listed on page 131.

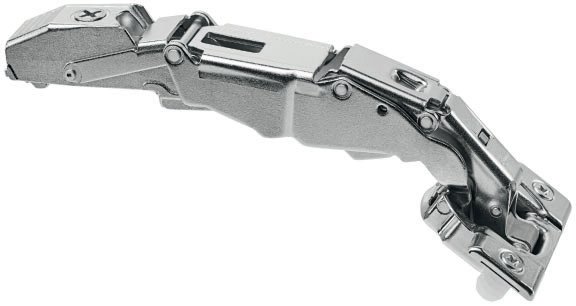

Reduce the opening angle of the Zero Protrusion Hinge. Installs quickly and easily.

Sold per clip

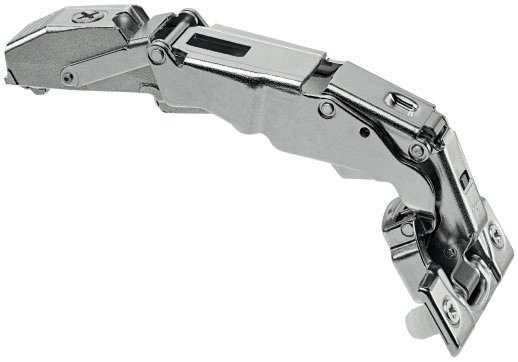

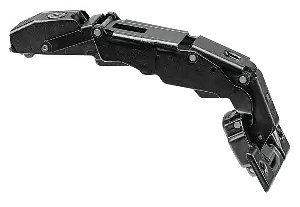

71B7580 71B7580-ONYX

• See page 124
• Use the overlay tables to determine
• for additional
• which mounting plate works for your
• applications of
• project. o
• 155 hinges.
• Cross reference the Bore Distance
• with the Plate Height to determine the
• overlay millimeters. (White boxes.) Use this overlay table for

Sold per hinge

• Recommended screws: #6 Flathead

Reduce the opening angle of the Zero Protrusion Hinge. Installs quickly and easily.

Sold per clip

Use under the hinge cup for retrofitting existing doors with a cup depth of less than 13mm. Works with screw-on or press-in hinges only.

Sold per spacer

Nickel Nickel (Shown (Shown with with cover cover cap) cap) Onyx Onyx Black Black

Sold per hinge

Sold per hinge

Sold per hinge

(Shown with cover cap)

Sold per hinge

Mounting plates listed on page 145.

Sold per hinge

Mounting plates listed on page 145.

Sold per hinge

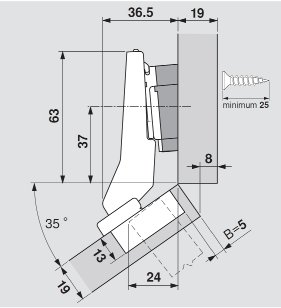

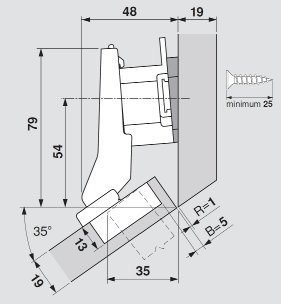

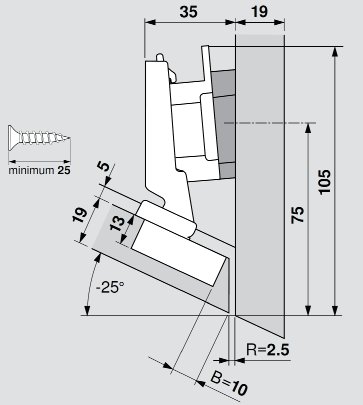

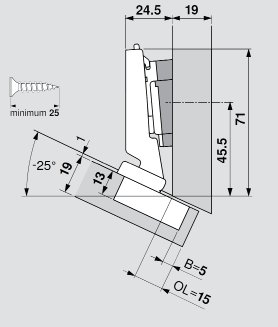

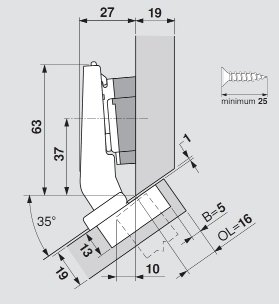

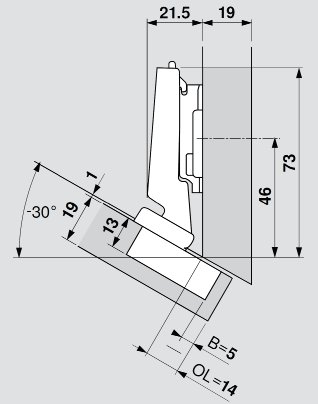

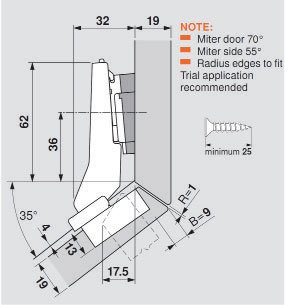

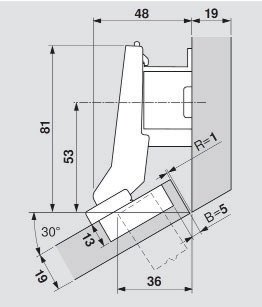

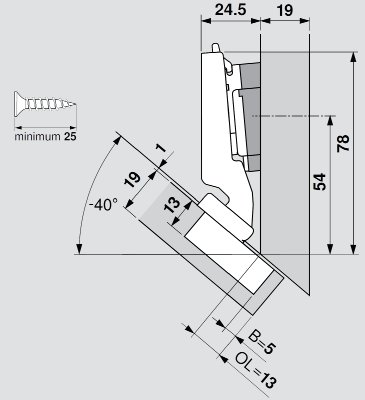

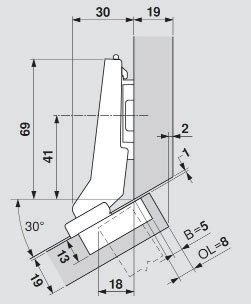

• These angled hinges are marked I,
• II, or III on the hinge arm for
• differentiation

Sold per hinge

(Shown with cover cap)

Sold per hinge

• Recommended screws: #6 flat head

Sold per plate

• Attached with premounted screws and 5mm EXPANDO dowels.

Blum's thin front solution is suitable for attaching Blum hardware to thin front materials in cabinet manufacturing. Areas of application could include particleboard, MDF, HDF, HPL., plus various composite materials. With sufficient stability and strength, front materials of 8-14mm may be used.

Sold per hinge

Mounting Plates listed on page 145.

Reduces the opening angle of the Thin Door hinge. Installs quickly and easily.

Sold per hinge

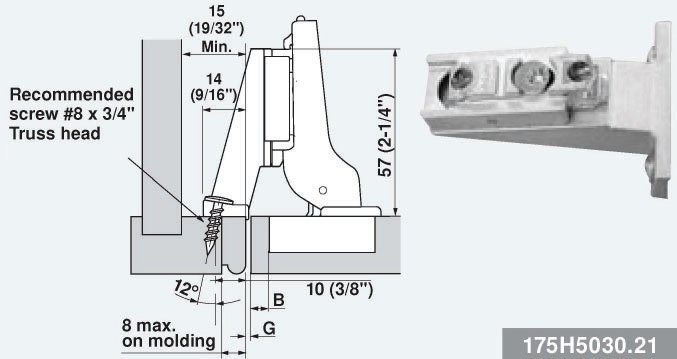

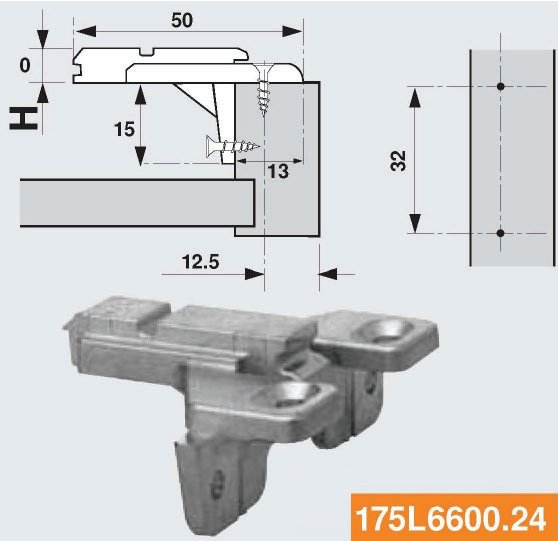

Sold per plate — without screws - Recommended screws: #7 flat head.

• Identical to BL-175L6600.22 plate except it has an additional flange that wraps around the back
• side of the frame for increased stability. Recommended when using 170° and zero protrusion hinges.

Sold per plate — without screws - Recommended screws: #7 flat head.

Sold per plate — without screws - Recommended screws: #8 truss head.

Sold per plate — without screws** - Recommended screws: #6 flat head.

1. Attached with premounted screws with 5mm EXPANDO dowels.

Sold per screw

Mounts under frameless mounting plate to reduce overlay by 3mm. Gray nylon.

Sold per spacer

By using one of the following combinations, a face frame inset application for various recess amounts can be achieved without the need to block out behind the frame or the use of the inset face frame adapter plate (175H5030.21). A trial application is recommended for each application to avoid an incorrect bore distance and damage to a finished door.

Sold per plate — without screws**

• Recommended screws: #7 flat head or 5mm system

Sold per hinge

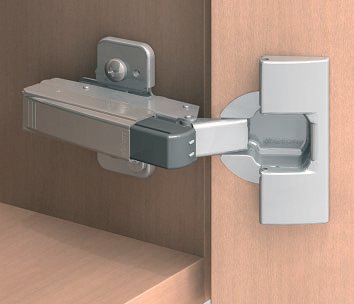

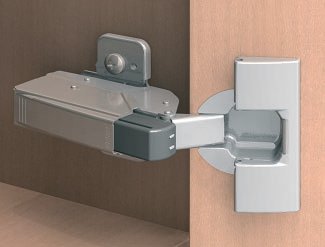

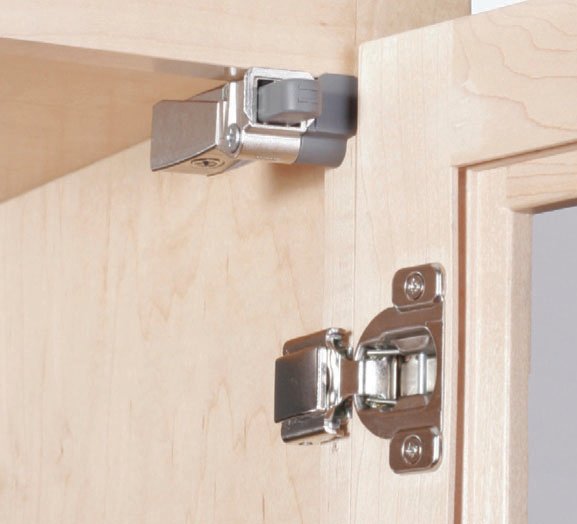

BLUMOTION for doors is quick and easy to install and does not require any change to the hinge assembly. Features a braking system that expands according to the force which regulates the travel speed of the mechanism. This technology enables BLUMOTION to adjust itself automatically to each door size, weight and closing speed, which provides a perfect closing motion every time. The integrated overload safety feature protects the system from damage through abuse.

Sold each

Sold each

1. Set includes Blumotion mechanism, spacer and mounting screws.

BLUMOTION for doors senses how hard the cabinet door is being closed, then adjusts resistance to keep it from slamming shut. That's Blum's way of perfecting motion. Like all Blum products, BLUMOTION for doors is guaranteed for life. BLUMOTION for doors installs into end panels with the boring of 10 mm hole or with various adapters.

Sold per mechanism

Sold per adapter — without screws - Recommended screws: #6 flat head.

• Recommended to be used on the hinge side of cabinet to create a softer close.

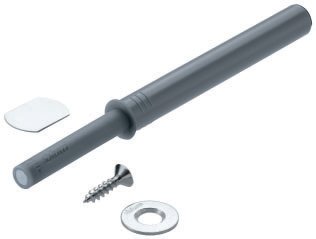

A magnetic touch latch with easy opening and secure closing. Designed to work with panel cabinet applications and CLIP top free-swing hinges. Quick and easy installation with increased design options. Set includes TIP-ON mechanism and self adhesive, and screw-on magnetic catch plate. TIP-ON for doors installs into end panels by boring a 10mm hole or with an adapter plate.

Sold per set

Sold per plate — without screws - Recommended screws: #6 flat head

• For use with BL-956.1004 TIP-ON mechanism.

For pre-boring TIP-ON for doors adapter plate. Simply locates mounting screw positions.

Sold per template

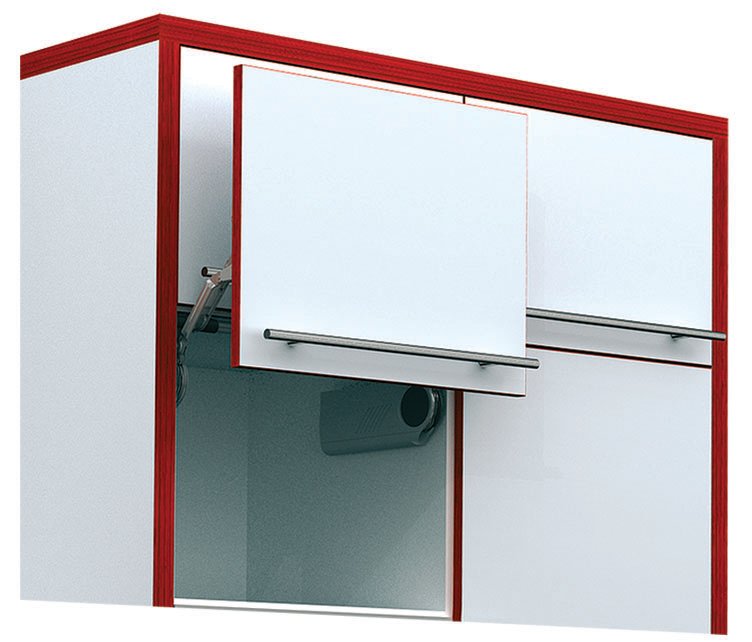

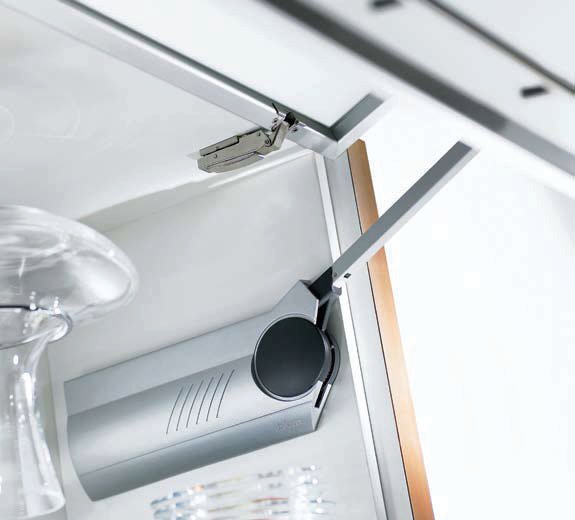

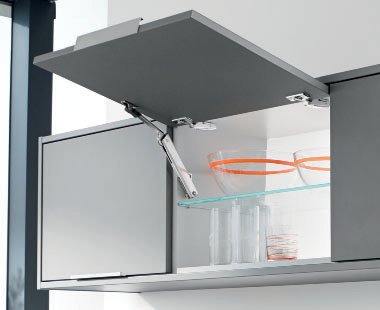

AVENTOS HK-XS is a smaller, cost-effective lift system which can be used in applications ranging from shallow depth wall cabinets above a refrigerator to pantries - all with varying front designs and materials. The symmetrical lift mechanism can be used on one or both sides, for the widest range of applications including face frame or panel design. The variable stop allows the lift system to remain in any desired position and always within reach. Features a robust spring that provides a high level of stability and durability. Designed for use with the CLIP top BLUMOTION or COMPACT BLUMOTION hinges. Works in cabinets up to 72" wide and 9 3/8" to 24" high. Choose the lift mechanism for your application by determining the power factor. This is calculated by multiplying the cabinet height in inches by the door weight including twice the weight of the handle. Order the mechanism and mounting plates separate.

Sold per lift — without screws - Recommended screws: #6 flat head

Sold per plate — without screws - Recommended screws: #6 flat head

Sold per plate

• **For use on large overlay 5 pc. doors

The TIP-ON Lift mechanism is designed for use with Free-swing hinges for a touch-to-open feature. Works in cabinets up to 72" wide and 9 3/8" to 24" high. Choose the lift mechanism using the weight conversion chart and power factor range listed above. Order the TIP-ON Lift mechanism, mounting plates and the TIP-ON mechanism separate.

Sold per lift

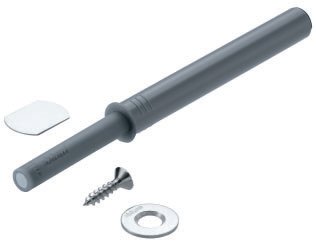

The TIP-ON mechanism includes a self-adhesive screw-on catch plate and screw. Works for both overlay and inset applications. Use the large door set for door heights greater than 15 3/4" (400 mm).

Sold per set

• REMEMBER: FOR A COMPLETE AVENTOS HK-XS SET, YOU WILL NEED A
• LIFT MECHANISM, CABINET AND DOOR MOUNTING PLATES, PLUS CLIP
• TOP BLUMOTION OR COMPACT BLUMOTION HINGES.

As with all AVENTOS, AVENTOS HK top provides an excellent view into the cabinet interior enabling comfortable and ergonomic access to stored items. AVENTOS HK top is compact in design, easy to install, and can be used in frameless and face frame applications. Features an integrated opening angle adjustment between 75° and 107° .Works in cabinets from 10" to 24" in height and a minimum of 7 3/8" deep. Choose the lift mechanism for your application by determining the power factor. This is calculated by multiplying the cabinet height in inches by the door weight including twice the weight of the handle. A maximum front weight of 39 lbs is recommended for two lift mechanisms. When using a third lift mechanism, a trial application is recommended. Order the lift mechanism and hardware set separate.

Sold per set

Sold per set

Sold per set

Sold per set

Sold per plate

For use with AVENTOS HK for thin doors.

Using the AVENTOS HK top TIP-ON Lift Mechanism allows for a touch-to-open feature. Choose the lift mechanism for your application by determining the power factor. This is calculated by multiplying the cabinet height in inches by the door weight including twice the weight of the handle. Order the TIP-ON Lift Mechanism, hardware set and TIP-ON Mechanism Set seperate.

Sold per set

• *Non-Stock Allow 7-10 days for delivery.

The TIP-ON mechanism includes a self-adhesive screw-on catch plate and screw. Works for both overlay and inset applications. Use the large door set for door heights greater than 15 3/4" (400 mm).

Sold per set

Used to easily determine the location for the arm assembly mounting plate on AVENTOS HK top. Features a calibrated scale for accurate settings.

Sold per template

• REMEMBER: FOR A COMPLETE AVENTOS HK top SET, YOU WILL NEED A
• LIFT MECHANISM, A HARDWARE SET AND COVER SET, PLUS A FACE FRAME

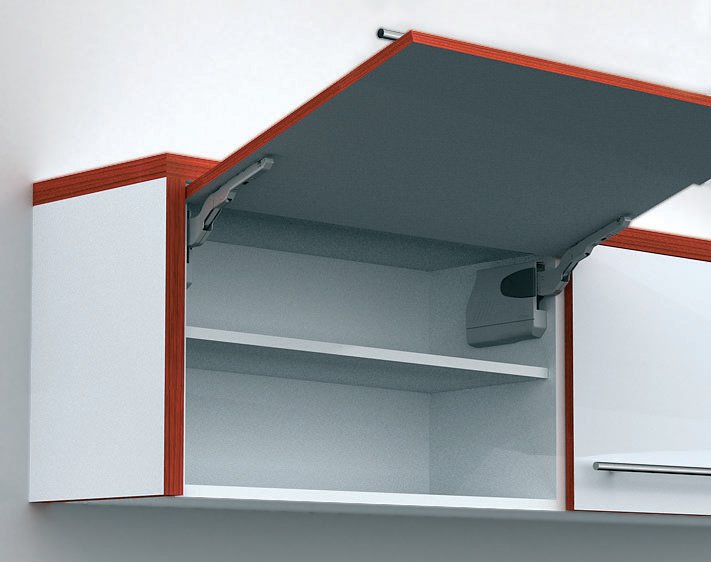

With the AVENTOS HK, doors are opened with comfort of motion and with integrated BLUMOTION (soft close) will come to a gentle halt. Equipped with the proven Clip technology and 3-dimensional adjustment feature. As with all Aventos hardware, the tension adjustment feature is used to fine tune the opening and closing power. Recommended for cabinets up to 72" wide and 24" high. Choose the lift mechanism that works best for your cabinets and doors by determining the power factor. This is calculated by multiplying the cabinet height in inches by the exact door weight (including twice the weight of the handle) in pounds. Order the lift mechanism, cover set and hardware set separate. Comes with complete mounting instructions.

Sold per set

Sold per set

Sold per set

Sold per set

Sold per plate

• **For use with large overlay 5-piece doors.
• For use with AVENTOS HK for thin doors.

Sold per clip

• REMEMBER: FOR A COMPLETE
• AVENTOS HK SET, YOU WILL NEED
• THE LIFT MECHANISM, COVER SET
• AND HARDWARE SET.
• Available while supplies last.

AVENTOS HK-S stay lift door system is designed for small wall cabinets such as above a refrigerator or pantry. Equipped with the same BLUMOTION and tension adjustment features as the AVENTOS HK system. Works in cabinets from 15" to 39" wide and 7 3/8" to 15 3/4" high. Choose the lift mechanism that works best for your cabinets and doors by determining the power factor. This is calculated by multiplying the cabinet height in inches by the exact door weight (including twice the weight of the handle) in pounds. Order the lift mechanism and hardware set separate.

Sold per set

Sold per set

Sold each

Sold per clip

• REMEMBER: FOR
• A COMPLETE *For use with large overlay 5-piece doors.
• AVENTOS HK-S Angle Restriction Clip (for AVENTOS HK-S)
• SET, YOU WILL
• NEED THE LIFT
• MECHANISM AND o

An exceptional easy-opening bi-fold lift system that provides quality and durability. Even heavy doors feel weightless and can be easily opened or will remain in position when left at any height. Can be used with all common door widths and heights by using different combinations of lift mechanisms and telescopic arms. Features Clip top technology for quick and easy adjustment and integrated BLUMOTION (soft close) for silent and effortless closing. Choosing the power factor is important for choosing the lift mechanism that works best with your cabinet and doors. This is calculated by multiplying the cabinet height in inches by the exact combined door weight (including handle) in pounds. Order lift mechanism set, cover set, telescopic arm set and hardware set separate. Comes with complete mounting instructions. Refer to page 154 for SERVO-DRIVE for AVENTOS HF. SERVO-DRIVE allows a cabinet with lift doors to open with just a light touch. Minimum Interior Cabinet Depth is 278 (10 15/16").

Sold per set

Sold per set

• REMEMBER: FOR A COMPLETE
• AVENTOS HF SET, YOU WILL NEED
• A LIFT MECHANISM, COVER SET,
• TELESCOPIC ARM AND HARDWARE Telescopic Arm

Provides accurate and simple positioning when mounting AVENTOS HF hardware in face frame cabinets.

Sold per set

Sold per set — includes hinges, mounting plates, etc.

• *For use with large overlay 5-piece doors.

Sold per template

• A jig used to pre-bore for AVENTOS locating pins. Requires a 5mm drill bit.

Sold per clip

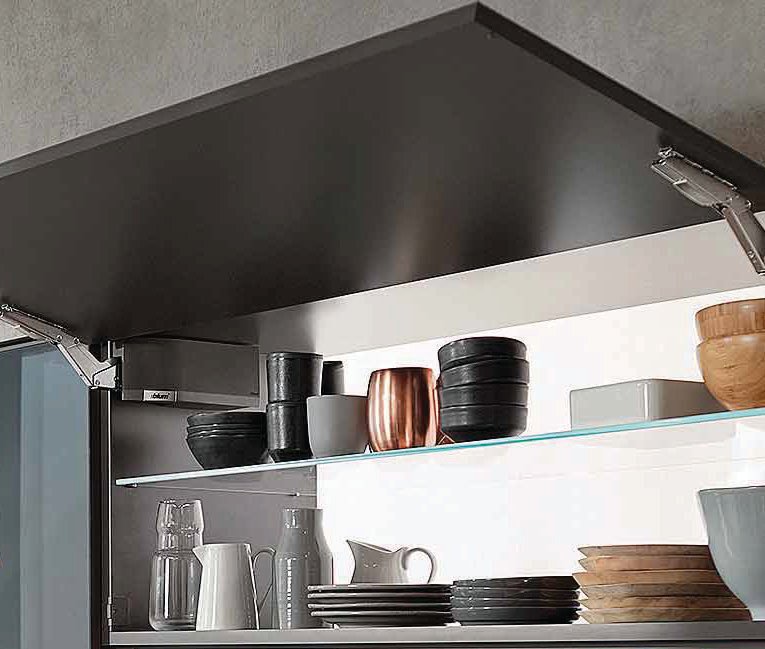

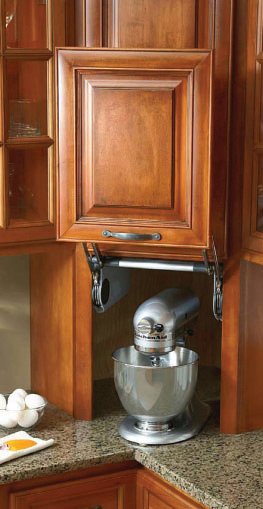

AVENTOS HL is a lift system providing comfort of motion that is sure to impress. Doors open effortlessly, and with the BLUMOTION feature, come to a gentle halt. Easy 3-way adjustments results in perfect alignment and tension adjustment. Aventos HL covers all common door widths and heights and is a great solution for upper cabinets and appliance garages. Designed so that it can be used with decorative molding, hardware, and etc. Order the lift mechanism, cover set, arm assembly, stabilizer bar and hardware set separate. Comes with complete mounting instructions. Refer to page 155 for SERVO-DRIVE for AVENTOS HL. SERVO-DRIVE allows a cabinet with lift doors to open with just a light touch. Minimum Interior Cabinet Depth is 278 (10 3/8"). *This line is used primarily for appliance garage applications.

Sold per set

Sold per set

Sold per set

Provides accurate positioning when mounting Aventos HL in a face frame cabinet.

Sold per set

Sold per rod

Sold per set

• *For cabinets wider than 48", a stabilizer rod connector set is required.

Sold per set

Sold each

• *For use with large overlay 5-piece doors.
• For use with AVENTOS HK for thin doors.
• REMEMBER: FOR A COMPLETE AVENTOS HL SET, YOU WILL NEED A LIFT
• MECHANISM SET, COVER SET, ARM ASSEMBLY, STABILIZER ROD AND
• HARDWARE SET.

Sold per template

• A jig used to pre-bore for AVENTOS locating pins. Requires a 5mm drill bit.

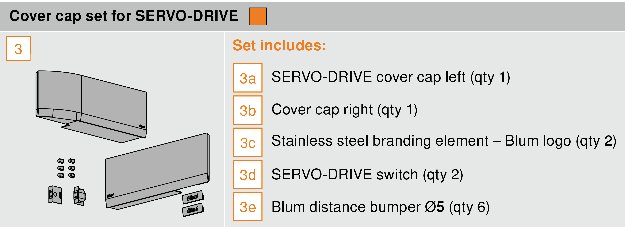

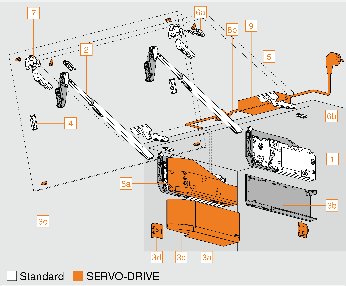

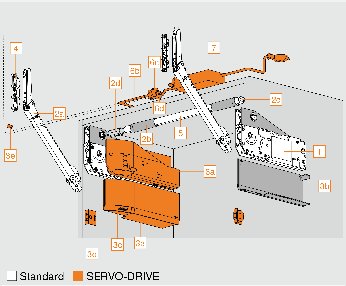

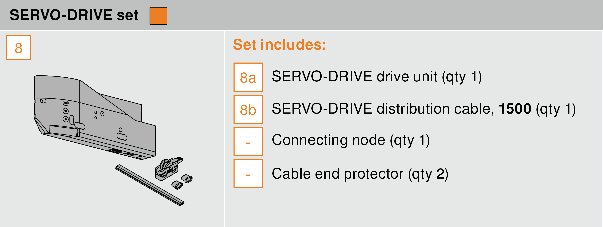

SERVO-DRIVE equipped AVENTOS lift systems open with just a light touch, then close again with the press of a button. This electrical support system for lift systems is an inspiring feature that is certain to impress. A light touch on the cabinet front with the hand or elbow is all that's required to open doors with SERVO-DRIVE for AVENTOS. Even large and heavy doors open effortlessly allowing for easy access to the cabinet interior. With the easy-to-reach switch on the side of the cabinet, doors close ergonomically no matter the cabinet height, plus the soft-close technology of BLUMOTION ensures doors close quietly and effortlessly. SERVO-DRIVE operates safely and will halt immediatly when an object appears between the cabinet and the door. Lift systems with SERVO-DRIVE open and close automatically, however, the motion can be interrupted at any time and can also be easily opened and closed manually at any time. Up to three drive units can be set for synchronized motion and is ideal for multiple cabinets that share one wide door. SERVO-DRIVE for AVENTOS also features a collision avoidance function, meaning the drive units can be set so that only one front can be opened at a time. The SERVO-DRIVE set features an adapter plate, allowing the unit to be attached to the left lift mechanism. The drive unit also features additional settings for synchronization and collision avoidance. The cover set includes a SERVO-DRIVE cover plate left and right, 2 wireless switches and distance bumpers. Refer to page 150 for AVENTOS HK top Stay Lift Door System.

Sold per set

• REMEMBER: FOR A COMPLETE SERVO DRIVE SYSTEM FOR AVENTOS HK,
• YOU WILL NEED A LIFT MECHANISM SET, SERVO DRIVE UNIT, SERVO-
• DRIVE COVER SET, HARDWARE SET, SERVO-DRIVE POWER SUPPLY AND
• OPTIONAL FACE FRAME BRACKET SET.

The SERVO-DRIVE set includes the drive unit that attaches to the left lift mechanism and features additional settings for synchronization and collision avoidance. The cover set includes a SERVO-DRIVE cover plate (left) that is extendable to cover the universal cable of the drive unit, plus a (right) cover plate, 2 wireless switches and distance bumpers. Refer to previous pages for AVENTOS HF & HL Bi-fold Lift System.

Sold per set

• REMEMBER: FOR A COMPLETE SERVO DRIVE SYSTEM FOR AVENTOS HF
• HL, YOU WILL NEED A LIFT MECHANISM SET, ARM SET, HARDWARE
• SET, SERVO-DRIVE UNIT, SERVO-DRIVE COVER SET, SERVO-DRIVE
• POWER SUPPLY AND OPTIONAL FACE FRAME BRACKET SET.

Sold per set

Sold per template

The Deluxe boring and insertion machine. Produces precise assembly results for cabinets, doors, drawer fronts and lift systems. Features front adjustable boring distance with digital counter, pneumatic hold-down clamps, depth adjustment and positioning stops. Includes tool kit and dust collection attachment. Recommended for boring and inserting press-in hinges, mounting plates and drawer fronts. Accepts optional 8 or 9 spindle boring heads.

Sold per machine

For production line boring with the MINIPRESS. Drills 9 holes, spaced 32mm apart, parallel to fence. Retractable index pins located on both sides permit continuous boring. Features quick- disconnect chucks. Requires 4 right hand bits and 5 left hand bits.

Sold per head

Use for inserting Press-in Hinges with the MINIPRESS. First the 8 mm holes for the dowels and the 35 mm hole for the hinge cup are drilled. Then the operator lowers the yoke with the Insertion ram attached. Operator clips the hinge of choice onto the matching ram and presses the hinge in place. Insertion rams available for various applications.

Sold per ram

• *Available while supplies last.

These stops can be used on the Blum Minipress machines for consistent drilling depth on all door thicknesses.

Sold per set of 2 stops

An essential manual tool for inserting CLIP top press-in hinges with BLUMOTION when not using the insertion ram. Can be used to insert all Blum press-in hinges.

Sold per tool

The 2mm drill bit and adaptor are designed to use in your hinge drilling machine to drill pilot holes for wood screws. This allows you to use screw-on hinges rather than press-in.

Sold each

Carbide tipped with 10 mm shank with locking flat and adjustable top screw. 35 mm, 26 mm and 8 mm bits are commonly used for concealed hinge boring. 5 mm and 6.35 mm (1/4") left and right hand bits are commonly used for inline boring machines for shelf supports. Additional bits available in 4 mm to 17 mm diameter x 57 mm or 70 mm length in left hand or right hand version.

Sold per bit

A POZI screwdriver is the most crucial tool you can use to assure the full torque is applied to all SR-DREH.PZDZ Blum adjustment screws. POZI screws can be identified by the distinctive "tick" marks located in the center of the screwhead recess. The Torx screwdriver is used in some Blum adjustment applications including Legrabox.

Sold each

For economical hinge drilling. A simple device for precisely drilling the Blum hinge pattern. Each drill bit is driven separately by a hand drill and retracts automatically. Clamps to various door thicknesses up to 40 mm (1 9/16") thick. Includes drill bits and 2 Torx driver bits.

Sold each

For above EcoDrill. Includes 3 Torx chucks, 2 Torx driver bits and 2 wrenches for changing chucks.

Sold per set

A boring jig for drilling pilot holes for inset and overlay face-frame adapter plates. Clamps to frame with cam lever. Reversible drill bushing insert permits 9.5 mm (3/8") or 12.5 mm (1/2") centerline backsets. Kit includes 2.5 mm pilot bit, drill bit extension and stop collar.

Sold each

A Jig used for drilling the 8mm dowel holes after the 35mm cup hole is bored. Also for drilling 5mm holes for system screw mounting plates. Drilling distance adjusts from 2 to 8mm. Includes a drill bushing to pilot bore 2.5mm for wood screw plates.

Sold per jig

For pre-boring hinge mounting plates, marking and pre-boring cabinet profiles, BLUMOTION, TIP-ON adapter plates and ADVENTOS locating pins. Calibrated scale for accurate setting. Requires a 5mm drill bit.

Sold per template

MOVENTO is the latest advancement in concealed runner technology. It brings together all the features, innovations and benefits that Blum has developed since first manufacturing drawer runners in the 1960s. MOVENTO runners come standard combined with TIP-ON BLUMOTION or SERVO-DRIVE touch-to-open system. This combination ensures that the drawers open with just a light touch, have smooth running action, and a silent and effortless closing action. Zinc Coated steel. Concealed roller carriage with permanently lubricated, synthetic rollers. Full extension concealed runners with BLUMOTION soft close. Designed to be used with TIP-ON BLUMOTION or SERVO-DRIVE touch-to-open system. Available in standard and heavy duty. Designed for drawers using 5/8" drawer material thickness. Elongated holes for depth adjustment. Tool-free tilt, height, front and rear side-to-side adjustment. Designed for the American 3" increment cabinet depth system in face frame and frameless applications. with soft-close BLUMOTION, and can be

Sold per pair — without screws** -order locking devices and brackets seperate.

Sold per pair — without screws** -order locking devices separate. Side mount only.

Sold per pair — without screws** -order locking devices separate. Side mount only.

• Recommended screws: #6 pan head

Sold each — without screws. Recommended screws: #6 pan head.

Sold per kit — with screws

1. Minimum inside drawer width of 3 3/4".
2. Depth Adjustment of ± 2mm (3/32").

Sold per set — includes locking devices, bottom mount spacers and screws.

• When adding TIP-ON BLUMOTION, use BL-T60L7570 TIP-ON mechanism

Increases lateral stability by synchronizing left and right runners to prevent drawer racking. Ideal for wide applications using MOVENTO 763H, 763. and 769. drawer runners. Recommended for opening widths 24" to 53 29/32" wide. Does not work on 769.7620S 30" drawer runners.

Sold per set

TIP-ON BLUMOTION for MOVENTO provides flexibility by offering the TIP- ON BLUMOTION unit in four different strengths. Use the table below to select the appropriate unit and trigger by finding the drawer runner length and estimating the total weight of the drawer when loaded. A synchronization rod is recommended for all cabinet widths for optimal function on TIP-ON BLUMOTION. Rods available for wide and narrow drawers. Note: Rod for narrow drawers does not utilize adapters.

Sold per set

Sold each

• For opening widths of 12 3/8" - 54 1/2" (Cut-to-size)
• For opening widths of 11 1/16" - 12" (Cut-to-size)

Use for creating a 3.5mm (1/8") front gap.

Sold per template

A pre-assembled bottom mount set for your waste/recycle unit. For face frame and panel cabinet applications. 135 lb. static load capacity. Add TIP-ON BLUMOTION or SERVO-DRIVE for a touch-to-open feature.

Sold per set — includes locking devices and screws

Enables Movento waste/recycle sets to be opened with just a light touch of the front. Fully mechanical, smooth running action with four - dimensional adjustment. Can be used with or without pulls. Sets include synchronization rod and adapters.

Sold per set

• **Does not use TIP-ON Blumotion synchronization adapters.

SERVO-DRIVE enables drawers to open automatically with just the touch of the drawer front or with a light pull of the handle. The unique feature is based on an electrical drive unit that, once activated, opens the drawer for you. This set provides all the accessories needed to turn your waste/recycle drawer into a SERVO-DRIVE unit. Use with MOVENTO waste/recycle sets. Includes Drive unit, double mount bracket, adapter plate, 110V power supply with 6' of cable, distant bumpers, INSERTA cable connectors, cable end protectors and cable clips, plus all screws, templates and instructions. See page 169-170 for additional SERVO-DRIVE information.

Sold per set

Blum's newest generation of TANDEM plus BLUMOTION concealed drawer runners brings together all of the features, innovations and benefits that Blum has developed since first manufacturing drawer runners in the early 1960's. TANDEM drawer runners can be used with SERVO-DRIVE for a touch-to-open feature. This new generation of concealed drawer runners offers four-dimensional adjustment, elongated holes for depth adjustment, bottom mount holes and exceptional load capacity. Features tool-free tilt adjustment and rear side-to-side adjustment. Locking devices offer self adjusting drawer length tolerance, tool-free height and side-to-side adjustment, and are also available with depth adjustment for inset drawer applications. Zinc coated steel. Concealed Roller carriage with permanently lubricated synthetic rollers. Full extension concealed runners with BLUMOTION soft close. Bottom mount holes on 15", 18" and 21" runners. 563H, 563. & 563F, 90 lb. dynamic and 100 lb. static.

Sold per pair — without screws ** -order locking devices and brackets separate.

• Uses special rear mounting sockets.

Sold per pair — without screws ** -order locking devices separate. Side mount only

Sold per pair — without screws ** -order locking devices and brackets separate.

for 3/4" drawer side material.

• **Recommended screw's #6 Flat head

Two sided locking for secure hold. The synchronization rod allows both locks to be released from on side. Easy installation with self-aligning components. Shelf is built 1 1/8" shorter then the equivalent drawer box for the runner.

Sold per set on locks — Each on Rods

Sold each — without screws - Recommended screw's #6 Pan head.

Refer to page 166 for additional mounting options.

1. Minimum inside drawer width of 3 3/4"
2. For use with BL-563H2290B with inside cabinet depth of 10 15/32" - 11 3/32"
3. For use with BL-563H2290B with inside cabinet depth of 11 5/32" - 11 25/32"

Sold per kit/set — with screws

Spacers are used for spacing out Tandem runners from the cabinet side for clearance on interior roll-out trays. End Caps are used to cover the front edge of Tandem cabinet profiles when used in an interior roll-out tray application. Can be used with all 563 and 569 runner lengths. Runner fastens to spacer with system screw.

Sold each

Increases lateral stability by synchronizing left and right runners to prevent drawer racking. Ideal for wide applications using 563 drawer runners. Recommended for opening widths 24" to 53 7/32" wide.

Sold each

An essential tool when using 563/569 series TANDEM runners. Use to bore holes for rear hook and locking devices at the required angle. Accessory Kit includes drill bit extension (A), stop collar (B), 32 Phillips screwdriver tip (C) and Allen wrench (D). Order template and accessory kit separate.

Sold each

Dutch Bracket offers a simple and effective solution for those unique drawer and roll-out applications. These side mount bracket kits allow for installation of frameless drawer slides in a face frame cabinet, eliminating the need for time consuming block-outs. Features an improved design to allow for installation with 5mm system screws on 32mm centers, gussets for added rigidity and strength, and inch 'tick' marks for precise alignment from front to back. Adjustable for side clearance to 1 1/2" on heavy duty slides or up to 4" on light duty or custom applications. Requires a 1/2" clearance between bottom of cabinet and bottom of slide. Adjustable for various applications and offsets, and will work with most drawer slides on the market, including undermount, ball bearing and epoxy slides. Single bracket set for most standard duty drawer slide applications.

Sold per kit

Double bracket set for heavy duty 135 lb. drawers or in applications where the front of the slide cannot be fastened to the face frame. Can be used for drawers and rollouts in inset applications.

Sold per kit

This template significantly reduces installation time and effort on Dutch Bracket Kits. Simply find your location on the cabinet side and clamp the template in place. Features numbered markings for a quick reference guide on the overlay applications with Blum undermount slides. Can be modified to use with other slides as well. Clamp is included with template. Works with SDMNTKIT and HDSDMNTKIT.

Sold per template

• *Free with your first order of 50 sets of Dutch Brackets

Designed to be used with the Blum 563 series 21", 18" and 15" runners utilizing the bottom mount holes in the bottom of the runners. Typically used in inset/rollout applications. Can also be used as a side mount rear slide bracket using the 1" washer.

Sold per kit

Sold each

Bottom mount brackets allow any runner to be mounted to the bottom of the cabinets rather than to the side. Offered in two versions to accommodate 1/8" and 1/4" recess.

Sold per kit

• SDMNTKIT Kit Contains: HDSDMNTKIT Kit Contains:
• 1. 2- #102 Cabinet Brackets 1. 4- #102 Cabinet Brackets 3.
• 2. 2- #101 Slide Brackets 2. 4- #101 Slide Brackets
• 3. 8- 8-32x1/4"Self Tapping Screws 3. 16- 8-32x1/4"Self Tapping Screws
• 4. 2- 10-32x1/4"Modified Pan Head Screws 4. 4. 2- 10-32x1/4"Modified Pan Head Screws 5. 5.
• 5. 2- T-Nuts 5. 2- T-Nuts
• 1. 1.
• 5. 5.
• BLROKIT Kit Contains: 18BMNTKIT and 14BMNTKIT Kits Contains:
• 1. 4- #102 Brackets 2. 1. 4- Bottom Mount Brackets
• 2. 4- 10-32x1/4"Modified Pan Head Screws 2. 16- 8-32x1/4"Self Tapping Screws
• 3. 4- T-Nuts
• 1. 1.
• 3. 3.

A nylon cover to help protect TANDEM Plus runners from dust and debris. A great solution for when protection is needed but don't have the time to remove the runner. Designed to t 562, 563 and 569 series runners. Available in 21" lengths only and can be cut to size.

Sold per cover

TANDEM edge joins Blum's newest generation of Runners, offering a high quality, soft-close runner for those low cost, economical applications. Now you can offer a low cost undermount runner in a name we have all come to trust. TANDEM edge is a 7/8 extension, full access, soft-close runner. TANDEM edge drawer runners can be used with SERVO-DRIVE for a touch to open feature. Zinc coated steel. 7/8 extension concealed runners with BLUMOTION soft-close. Concealed roller carriage with permanently lubricated,synthetic bearings. Available in 9" to 21" lengths. 1/2" to 5/8" drawer material thickness. Dynamic load capacity is 55 lb. on 21" length drawer box. Static load capacity is 75 lb. on 21" length drawer box.

Sold per pair — without screws*** -order locking devices and brackets separate

Sold each — without screws - Recommended screws: #6 pan head.

Sold per kit — with screws

• Note: The 554H cabinet member length differs from
• that of the 563 series runners and it is important to take
• that into consideration when building your cabinet.

1. Minimum inside drawer width of 3 3/4".
2. Depth Adjustment of ± 2mm (3/32").

SERVO-DRIVE is the new opening feature for TANDEM and MOVENTO drawers. By combining this feature with the silent and effortless closing action of BLUMOTION, Blum has taken perfecting motion to a new level. Whether heavy or light, wide or narrow, the gentle opening always remains the same. Drawers open automatically and effortlessly with just a touch of the drawer front or a light pull of the handle. This unique feature is based on an electrical drive unit that, once activated, opens the drawer for you. The basis for SERVO-DRIVE is an electrical drive that opens the drawer. However, the drawer is not connected to the drive unit, which enables the drawer to be stopped at any position. With SERVO-DRIVE, the drawer system remains functional with just the pull of the handle whether the power is on or off. All SERVO-DRIVE components are maintenance free and comply with all safety standards. People are amazed by the quality of SERVO-DRIVE and the ease of use. The power supply set contains everything needed to hookup power to the drive unit. One or two power supplies may be needed depending on the kitchen layout. Includes one each of three-prong power cord, wall mount bracket, power supply, 19' cable, cable connector, 3 each of cable end protector, 10 each of cable clips and technical information.

Sold per set

The drive unit is the mechanism that opens the drawer. Use with power supply set.

Sold per unit

The horizontal profile is used to go between the right and left adapters to hold the drive unit.

Sold each

Typically used in face frame applications along with the horizontal aluminum profile. Includes adapters to attach to TANDEM rear brackets, profile adapter, screws and installation instructions.

Sold per set

Used in the drawer front to provide the drawer a distance travel of 1/8" when touched to activate the drive unit. Two distance bumpers per drawer required unless the drawer is more than 12" in height, four distance bumpers required.

Sold each

This locking device features an adjustable stop with depth range for consistent accuracy and perfectly aligned drawer fronts. Features an integrated distance bumper for inset or overlay SERVO-DRIVE applications. Use with 563 or 569 series runners.

Sold each

Used to join cables that branch offthe main power supply line to each drawer.

Sold each

• NOT VISIBLE

Protectors used to cover exposed cable ends.

Sold each

An additional length of cable to use when the power supply doesn't provide enough. Includes 5 cable end protectors.

Sold each

Works great for bottom drawers such as a waste container roll-out. Use for one or two drive units, depending on the size or load of drawer.

Sold each

Orga-Line for TANDEM and MOVENTO drawers is a program of insert sets that fit into wood drawers that are built to the dimension standards of Blum's TANDEM and MOVENTO concealed drawer runners (21" overall drawer length). Sets include removable stainless steel trays, adjustable partitions and spring loaded side rails. Orga-Line divider sets are easily installed without tools. The spring loaded components fit into the drawers snugly and the connector pieces are assembled with dovetail slots. Plate holders are of high quality plastic and stainless steel with a non-slip bottom. Knife holders are of plastic and stainless steel construction and hold up to 9 knives. Angled spice trays keep spices organized and visible. Trays are easily removed from cabinet. Ask for brochures showing more creative ideas using Orga-Line Products.

Sold per set

Sold each

Sold each

Sold per set

A simple, sleek and stylish system for hanging file folders. Can be used with Blum METABOX drawer system or with any custom made file drawer box. Simply cut to desired length. Order as a set or as individual components.

Sold per set

Sold each

• Requires #6 flat head screw

A nylon housing with premounted 8-32 steel nut that can be mounted in the drawer front for height and side to side adjustment. For 4-sided drawer boxes only. Allows a 3/16" height and/ or side to side adjustment. Can be inserted manually or with a Minipress insertion ram.

Sold each

Sold each

• See page 129 for Minipress insertion ram.

The STANDARD drawer runner series is the runner of choice when function and cost effectiveness are desired. The 230M and 4000 series are a single extension bottom mounted drawer runner with ramp style self-closing action. The durable epoxy coated steel profiles are available in lengths from 10" to 26" with cabinet profiles compatible to the 32 mm line bore pattern.

Sold per pair — without screws. Recommended screws: #6 flat head. -rear mounting sockets not included.

• Available while supplies last.
• (1) For overlay drawer fronts. Space requirements for inset drawers will vary according to front thickness.

Sold per pair — without screws. Recommended screws: #6 pan head.

Euro slides come with a double stopper to prevent drawers from disengaging too easily. 3/4 extension with one side captive and 75lb. weight capacity. Cold rolled steel with White Powder coat epoxy. Available in 10-24".

Sold per pair — without screws. rear mounting sockets not included.

Sold each — without screws
