Ball Brg. Slides / Misc. Hardware

Sold per hinge/plate

• 243-1022, 1016-2,
• Angle Reduction Clip
• Face Frame Plate Frameless Plate

Fully adjustable concealed compact hinges that offer an economical alternative to the name brand hinges. These high quality hinges are designed for 3/4" face frame cabinet construction. Utilizes a standard Salice or Blum boring pattern. The soft-close 1/2" overlay version features a 3-way cam for ease of adjustment. Insertion rams are available. Please inquire.

Sold per hinge — without screws - Recommended screws: #10 pan head or #8 truss head

Sold per hinge

adjustment. An economical undermount slide offering easy installation. Comes with a limited lifetime warranty.

Sold per set — without screws.* Order locking devices and rear brackets separate

• Side Mount Only - Order locking devices separate
• *Recommended Screws: #7 flat head.

Sold per pair — without screws. Recommended Screws: #6 pan head.

Sold per piece — without screws. Recommended Screws: #6 pan head.

1. Side to side, up and down, in and out adjustment capability.
2. Up and down adjustment capability.
3. Side to side, up and down, in and out adjustment capability, vertical mount.

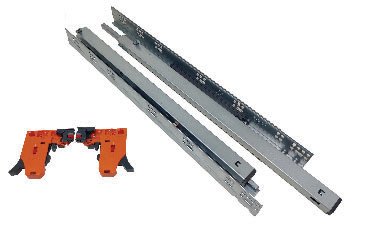

A silent, soft close full extension slide for frameless and face frame cabinets. Features side to side, up and down, and depth adjustment. A good quality economical undermount slide.

Sold per set — Includes locking devices and rear brackets - without screws

Sold per set — Locking Devices and runners sold separate

• 13220-19-282

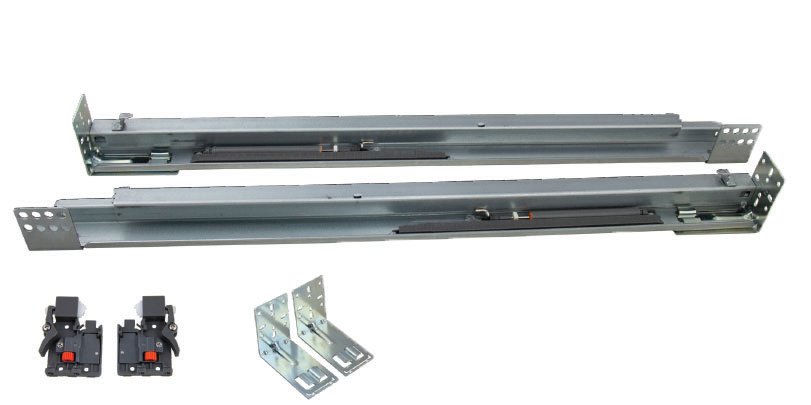

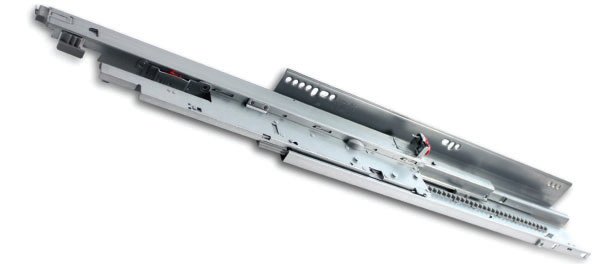

Undermounted concealed runners with full extension travel length. Smooth gliding motion with high rigidity and stability. Durable damping system with fast reponse capability. KMCA Certified load capacity of 120lb. Can be mounted either in face frame style using rear bracket, or in frameless style to the side of the cabinet.

Sold per set — Slides and Locking Devices sold separate - without screws

Sold per set — Includes locking devices and rear brackets

• 12945-02-206
• Economical 3/4 Extension soft-close slide. Comes with 2way locks and rear brackets. Additional bracket available
• for Frameless cabinets.

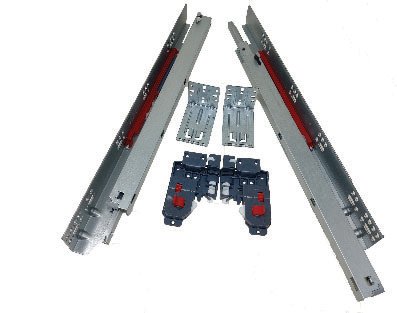

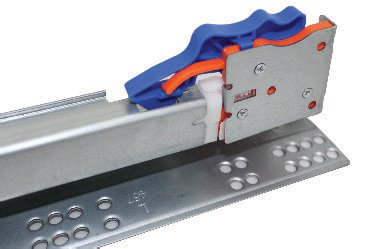

Silent soft-closing Undermount runner for Face Frame and Frameless cabinets with smooth gliding motion and rigid and stable design. Full extension travel length. Silent soft-closing with light opening force design. Durable damping system adjusts for light or heavy drawers. Designed for drawers with 1/2" or 5/8" sides. Only available with a 2 way locking device.

Sold per set — Locks and Rear Brackets sold separate

Sold per set — Locks included - 9" also include Rear Brackets

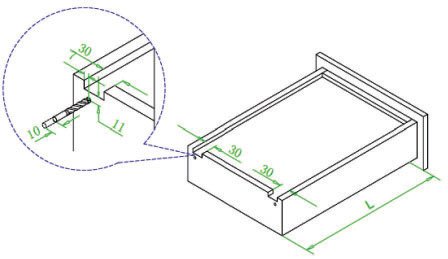

• Build the drawer box at 23 7/8" and set the cabinet member back 5/8". This drawer slide cannot be used
• with rear brackets and the locks are included.

Sold each

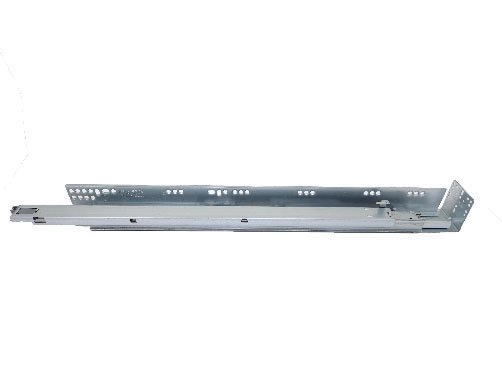

Ultra smooth soft-close undermount runner. One of the smoothest undermount runners in the world. Try one today! Tool-less drawer height. adjustment, side to side adjustment, and depth adjustment. Simple assembly and removal of the drawer with the metal front release latch. Designed for drawers with 1/2" or 5/8" sides.

Sold per set — Locks and Rear Brackets sold separate

Sold each

Sold per set — Sold in increments of 2 set - With Locks

• IF86F/1F86D 8-Way Adjustments
• Simlead undermount runners offer the latest in push open soft-close mechanisms. A push on the drawer
• front will activate the self open function and it stays active and can be repushed if it doesn't fully open. Soft-
• close activates for a smooth, quiet, side to side, depth, and tilt. Must be side mounted. Standard duty weight
• capacity is 90lb and the heavy duty weight capacity is 140lb.

Sold per set — Sold in increments of 2 pr. With Locks

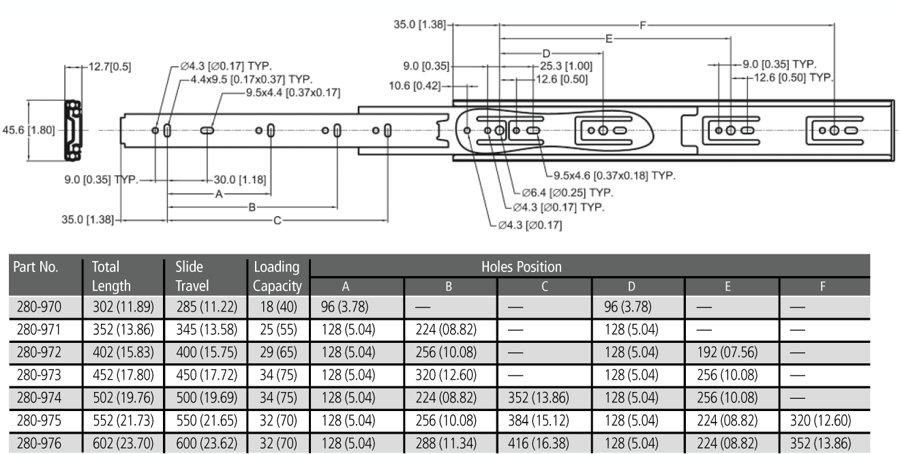

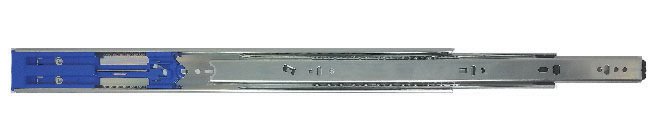

Premium quality, full extension ball bearing slide with an ultra smooth 2" length silent soft-closing feature. Smooth gliding motion with high rigidity design. Very light opening force due to the self- resetting soft close cylinder. The high quality fluid cylinder offers excellent resistance for heavy kitchen and office furniture, cabinets and workstations. Refer to page 166 for additional mounting options.

Sold per set — without screws - Recommended screws: #8 modified truss head.

• 3M52 loads. Center member stays extended for easy drawer insertion. 100 lb. rating for applications such as
• Soft-Close feature

Sold per bracket — without screws - Recommended screws: #6 pan head

Excellent quality 150 lb. Soft close drawer slides available in lengths from 10" to 28". Currently stocked in 22". Trigger release to separate the cabinet member from the drawer member. Ball bearing hold out feature improves reassembly ease. ANSI/BIFMA Tested & Certified.

Sold per set

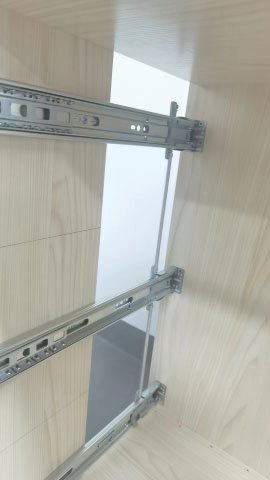

High quality ball bearing slides come with an interlock feature to allow one drawer at a time to open. This helps to meet the new standards assigned to bedroom furniture to reduce the risk of tip-over.

Only available in 10 set increments Each box comes with the runners, interlock clips, and rods.

Sold per set — without screws - #8 modified truss head recommended

Sold per bracket — without screws - Recommend #6 Pan Head

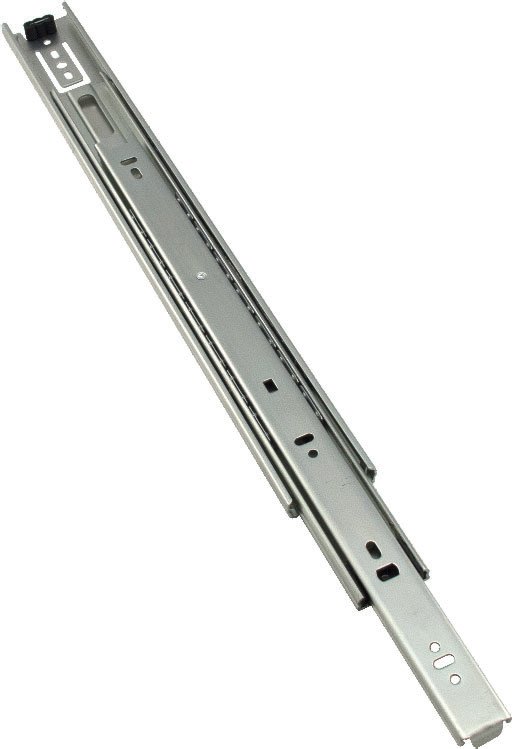

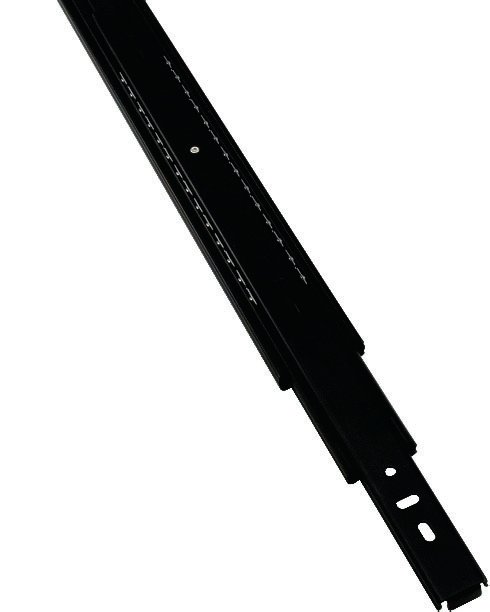

Full extension telescopic Ball Bearing side-mount slide. The preferred slide for file drawers. Only 1/2" thick and 1 3/4" high, this slide carries heavy loads, silently and smoothly. Superior action is guaranteed by double ball trigger releases. Rated at 100 lb. per pair on 18" length. Black slide now available for the elegant appearance furniture buyers have come to expect. Rear mounting brackets allow for slides to be attached to the cabinet back. Refer to page 166 for additional mounting options.

Sold per set — without screws*

Sold per bracket — without screws

Sold per bracket — without screws

Sold per bracket — without screws

• Easy Ea Face Frame Mounting bearing raceways. Available with or without a soft close feature. Easy drawer removal and insertion with front
• B4503C Series
• *Recommended screws: #8 modified truss head
• Recommended screws: #6 pan head

A high corrosion resistant full extension ball bearing slide with a 100 lb. load rating. Features a butterfly release for easy disconnect, and a hold-in detent. Compatible with 32mm screw system. Stainless Steel slides are ideal for outdoor or marine kitchens and furniture, restaurant and hospital equipment and appliances. Requires a 1/2" side spacing and is 1 13/16" high. Refer to page 166 for additional mounting options.

Sold per set — without screws

A medium duty side mount slide with a 1" over travel and a 100 lb. load rating on the 18" slide. This slide is compatible with the 32mm screw system and works great for commercial furniture, bedroom and office furniture, and kitchen cabinets. Slide needs 1/2" side spacing and is 1 13/16" high. Side mount only. Refer to page 166 for additional mounting options.

Sold per set — without screws. Recommended screws: #8 Modified Truss or 32mm system screws.

Sold per piece — without screws. Recommended screws: #6 pan head

• DS4658 DS Series

Full extension side mount ball-bearing slides with a 100 lb. load rating. Soft-close action makes this an ideal slide for kitchen cabinets, office, bedroom and commercial furniture. Features a push button release for easy drawer removal and is compatible with 32mm mounting system. Slide requires a 1/2" side spacing and is 1 13/16" high. Optional adjustable plate snaps into rear mounting bracket #13159 05 098 allowing for floating side to side adjustment. Refer to page 166 for additional mounting options.

Sold per set — without screws. Recommended screws: #8 Modified Truss or 32mm system screws .

Sold per piece — without screws. Recommended screws: #6 pan head

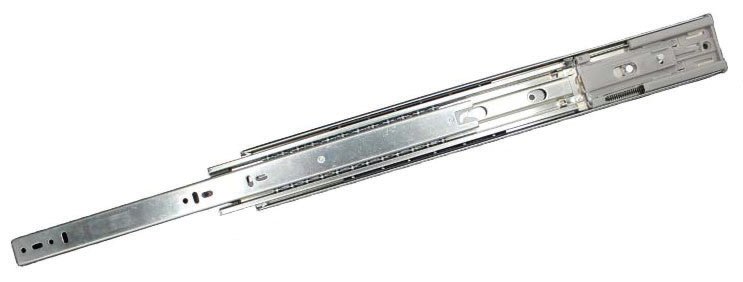

A heavy duty side mount slide for those heavy-duty needs. The exciting feature on this slide is the 200 lb. load rating in only 1/2" clearance. Will fit the same style box as other standard side mount slides. Works great for file drawers or waste container pull-outs. Slide is 1/2" thick x 2 1/4" high with a 200 lb. rating on the 18" length. Side mount only. Refer to page 166 for additional mounting options.

Sold per set — without screws. Recommended screws: #8 modified truss head

Heavy Duty slides for those over weight and longer length projects. 19mm (3/4") thick and 76mm (3") high slides provide 500lb of weight capacity and serious stability. Available in lengths up to 60" via special order. Please inquire.

Sold per set

Stainless Steel hinges and drawer slides are a good solution for those applications where there is a concern with regular hinges and slides rusting Please inquire about additional options. A variety of overlays are achievable with the hinge and plate options available from Sugatsune. Inset application can be achieved by blocking out from the side of the cabinet.

Sold per hinge/plate

Featuring soft close for a smooth, silent movement. Full extension with a front disconnect for easy installation.

Sold per hinge/plate

Stainless Steel Bar pulls and knobs offer a great look.

Sold per knob/pull

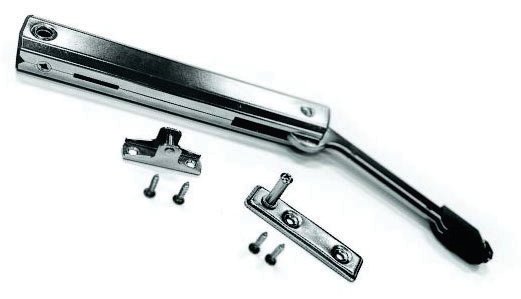

Introducing an innovative soft closing lift system - a seamless blend of functionality and design. Experience the perfect harmony of smooth and silent operation amd contemporary design, ensuring a closure every time. Where convenience meets style. Maximise the cabinet storage space. Soft closing utilizing soft close hinges. Adjustable to the weight of your door. Cabinet heights between 6 1/4" - 15 3/4". Minimum cabinet depth of 4". Quick and simple installation with quick disconnect. Elegant chrome finish. Includes lift mechanism and mounting plates.

Sold per kit

Sold per pair — with screws

• Modern design, semi-concealed hinge. Various other finishes available with a 25 pr. minimum.

Overlay and roller closing assembly features a nylon roller and pivot with two nylon washers that eliminate metal-to-metal contact.

Sold per pair — with screws

• BPR3429 Fully Adjustable. Locating tabs on door and stile parts. All hinges may be used for right or left hand mountings. Spring
• Inset
• Overlay
• YD5
• YD4

Cabinet and furniture butt hinge with decorative finial. Non-self closing.

Sold per pair — with screws -

Sold per hinge — without screws - Recommended screws: #4 flat head

• Bi-fold non-mortise cabinet and furniture hinge with slightly rounded corners. Non-self closing.
• Non-mortise cabinet and furniture butt hinge with decorative finial. Non-self closing.
• UL35400

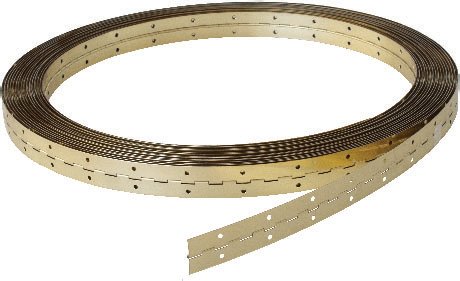

Steel hinge, coiled with parallel holes countersunk on 2 3/8" centers. .035 gauge steel.

Sold per roll/inch — without screws - Recommended screws: #5 flat head

• H1522B Feet Per Per Per
• Available while supplies last.

Sold per hinge — without screws - Recommended screws: #6 flat head.

• H116

Sold per hinge — without screws*

• H205 Steel sewing machine and flap hinge.

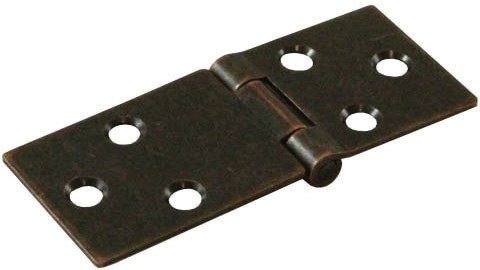

This hinge is designed for use on drop leaf table leaves. Hinge knuckle is rabbeted into the table top. Hardened steel.

Sold per hinge — without screws*

Sold per m (1000) / each

• H278L
• Recommended screws for above sewing machine and drop leaf table hinge.
• MFXP08058R2E

Drop leaves are held securely in place by spring tension. Also holds leaves in dropped position. SAF-T-RING release. Measure distance "A" (apron to hinge pin center), then determine "B" (table top to centerline of mounting hole) on the graph by matching "A" with the drop leaf support length.

Sold each — without screws - Recommended screws: #7 flat head

• DL110BR01

Used to hold the bench leg in the closed position in conjunction with the HD-DL112BR01 leg support.

Sold per set

• 3 11/16" 3 5/16" 2 15/16"

For holding open lids on chests, boxes, benches, etc. Snap-locks in open position. Steel construction.

Sold per pair — without screws - Recommended screws: #6 pan head

• CM9823B2G

Sold each — without screws - Recommended screws: #6 pan head.

• For holding open chest lids, boxes, etc. Heavy duty supports can be used on left, right or center of lid. Adjustable
• angle degree opening.

Non-swivel magnets with a 13 lb. pull.

Sold each — without screws - Recommended screws: #6 pan head.

Sold each — with screws

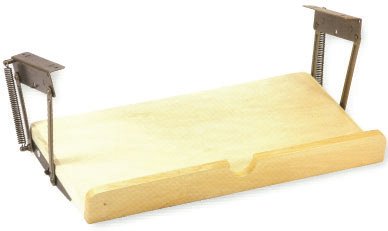

(shelf not included) wall cabinet to keep the counter clear of cook books. Hinges are spring loaded and left and right handed. Suggested shelf size is 9" deep x 18" wide.

Sold per pair

• 19-AB Create your own custom cook book shelf with these hinges. Especially designed to be mounted to the bottom of a

screw up and one screw down.

Sold each — without screws - Recommended screws: #7 flat head

• FIG8Z Stamped steel "figure 8" fastener to mount tops to pedestals. Counter sunk holes on reverse sides for driving one

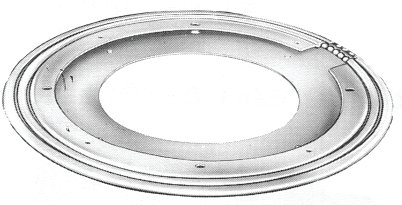

For turntables and fixtures of all kinds. Precision made ball bearings provide a smooth gliding rotation and maximum

Sold each — without screws - Recommended screws: #8 modified truss head

• TRC3
• TRC4 stability. One unit construction made of pressed steel and zinc plated.
• TRC6

X-72P X-725MMN X-72N Steel shelf supports for drilled holes.

Sold per m (1000) /each

• Steel shelf supports for drilled holes. Plastic coated arm in non-skid polyvinyl. Especially useful for glass shelving.
• An economical L-shaped shelf rest for drilled holes with a hole to fasten shelf to shelf rest.
• RL124-50BRASS An economical spoon-shaped shelf rest.

Decorative hooks with white porcelain knob tips. Cast metal alloy. 5 1/2" high x 4" projection. Front mounted with 2 screws.

Sold each — with screws

Sold each — with screws

• Decorative hooks with rounded tips. Zinc cast construction. HD37007: 4 1/2" high x 3 3/4" projection.
• H55451BBZ H55451CZ
• H55451MB

Includes all hardware necessary to mount shelves. Designed for shelves 2" thick or more. Wood stud application. 2-piece design for easy installation. Bi-directional adjustment. Available in 4", 6", 8" lengths. Weight bearing of up to 300 lbs per pair.

Sold per set

Multi-step drilling operation creates a hole tailored to the TIMBER-LOC brackets, ensuring a perfect fit. Automatically centers the hole in the back of the shelf, guaranteeing a straight hole and eliminating blowout. Adjusts to any shelf up

Sold per jig kit

• to 3" thick. Cam-lock secures the jig to the shelf for the entire operation.

Plate TLOC-2015 TLOC-1510 INNOVASHELF's floating shelf brackets are crafted from precision machined aluminum and formed galvanized steel for maximum strength and durability. Each bracket attaches with one double headed and one washer head lag screw. Floating shelf brackets are designed to rest on the shoulder of the double headed lag screw, allowing for installation on top of sheetrock and other materials that would otherwise be subject to crushing if using other designs of floating shelf brackets. The double headed lag screw on the bottom of the bracket can be adjusted in and out for leveling the shelf. With INNOVASHELF's floating shelf brackets, shelves can be installed wall to wall or open ended. Brackets come standard with a 10" arm length. Special Lengths are available upon request in 1" increments up to 20". Sets include 2 brackets/arms and all mounting hardware.

Sold per set

• The T-LOC is a 2 piece system including a base plate and a galvanized steel arm that slides onto the base plate. The
• Flush Mount T-LOC is a 2 piece system where the top of the base plate and the top of the arm are exactly flush when
• attached. Includes lag screws for mounting to the substrate.
• Drywall/Steel

The EZ-LOC is a 2 piece system including a galvanized steel arm and an aluminum base plate. Includes lag screws

Sold per set

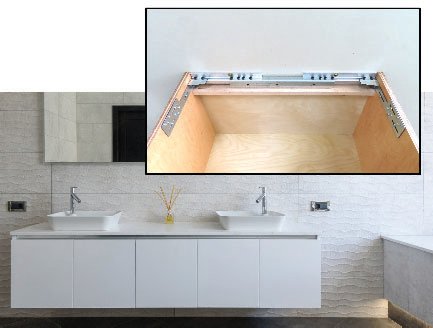

Patented rail system mounts on the wall before the cabinet. Cabinet brackets hook onto the rail for a simple, sturdy install. Cabinet weight is supported by rail while it is pushed against the wall and secured. Available in kits for cabinet 15"-84" wide. Kits include all the components necessary to hang a floating cabinet. 500-1000 lb. weight rating depending on which kit you order. All widths are outside to outside.

Sold per kit

Heavy duty metal bed rail fasteners designed for strength and easy mounting and unmounting of bed rails. All brackets are black powder coated.

Sold per bracket — without fastenings - Recommended fastenings - as indicated above.

• pan head screws in the bed rail.
• bolts in bed post and 3-#10 pan head screws.
• stability. Requires 3-#10x3/4" pan head screws.

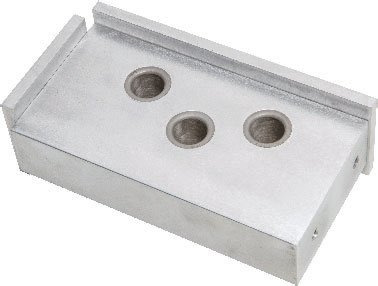

Drill precise mounting holes at the correct location each and every time with this precision made aluminum jig. Designed to used with the 5/8" counterbore bit with stop collar.

Sold each

These cast aluminum bed rail fasteners are designed for strength and ease of installation by the manufacturer and to simplify assembly by the home owner. The strength of these heavy duty fasteners is equaled only by the traditional bed bolt method. Contrary to the bed bolt method, here you need no wrenches or keeping track of loose fastening, etc. Fastenings can be same for all 3 styles - two 5/16" lag bolts in bed post and three #12 x 7/8" or #12 x 1" pan head screws in bed rail. (Fastenings not

Sold per bracket — without fastenings - Recommended fastenings - as indicated above.

• requires a saw kerf in the bed rail to prevent any twisting or sagging.
• prevent twisting and sagging.
• than a saw kerf. This flange will prevent any twisting or sagging.
• added stability. Recommended fastening is three #12 x 1" pan head screws.
• HD-SBP

Hex Lag Bolts are commonly used with bed hardware. Features a deep thread design for maximum holding power. Rubber head covers can be used on lag bolts for protection in shipping and installation. Order bolt and cover separate.

Sold per bolt

Sold per cover

• 516112

Pan Head Phillips Deep Thread Type 17 screws suited for use with the above bed rail brackets and fasteners.

Sold per 1000/each

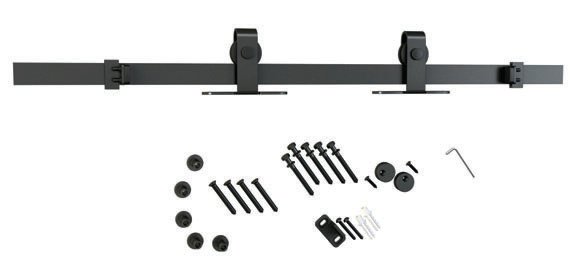

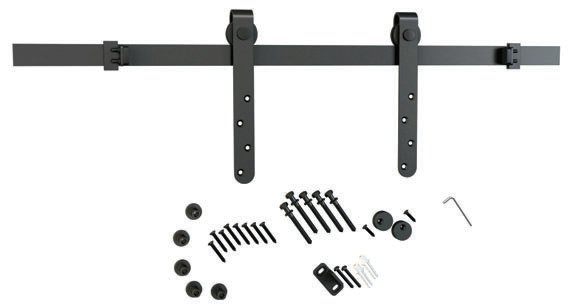

Decorative hardware to use in sliding door applications in kitchen islands, bathroom vanities, entertainment centers, and more. Features steel construction with matte black powder coat with a maximum door weight of 44 lbs. Top mount set is suitable for door thickness of 1" to 1 3/16". Surface mount set is suitable for door thickness of 1" to 1 3/4". Both sets include a 5' 10" rail with all stops, blocks and rollers, plus a floor guide and screws for a single door application. Additional components are available for double door applications using the same rail.

Sold per set

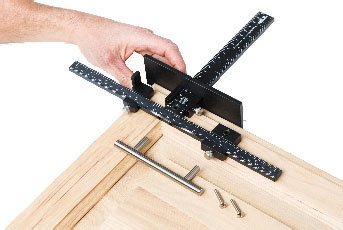

Save time, prevent mistakes. Install hardware 10 times faster with this True Position Hardware Jig. The days of wooden jigs and measuring each door and drawer by hand are over. Provides quick, accurate layouts every time. Features english/metric ruler and thumbscrews to tighten. Made of durable aircraft quality aluminum and 5mm case hardened steel bushings. Maximum center to center is 12" on the TP-1934 and 31 1/4" on the

Sold per set

• bit and cardboard case with handle. The TP-1935 set can also be setup for fast and accurate shelf pin holes
• in assembled cabinets.

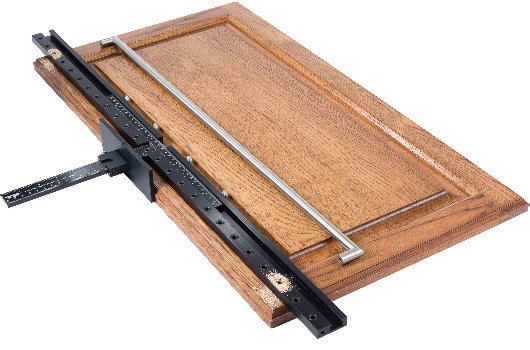

• CHJ PRO TP-CHJ-MAX Cabinet Hardware Jig with extension bars

Sold per jig

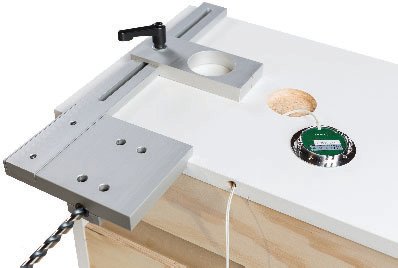

• Now you can install puck lights, strip lights and switches in 5/8" or 3/4" material with this patented 3/8" wire
• concealing kit. No need for "false bottoms" or "build up" to hide wire for lighting. Now you can conceal
• wires directly in the cabinet bottom or shelf. Features aluminum jig body with 3/8" case hardened steel
• bushings, and includes a 3/8" x 12" wire drill with stop collar, a 2 1/8" and 2 1/4" forstner bit with depth stops.
• Comes in a plastic case with handle.

Stem or plate mounted die cast metal alloy casters for use on office chairs, upholstered chairs, large cabinets, etc. Rubber treaded casters are recommended for use on hard surface flooring. Non-treaded casters are for use on carpeted floors.

Sold per caster

• Order as -01 for plate fastening, or -02 for stem fastening
• Available while supplies last.

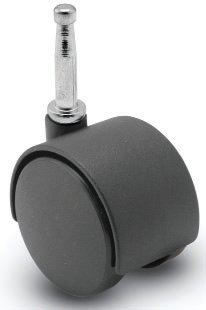

Dual Wheels place more wheel surface on the floor. Wheels move in opposite directions to minimize twist- ing. For use on furniture, office chairs, printer stands, etc. Urethane treads recommended to keep hard surface floors from being scratched and damaged.

Sold per caster

• Order as -01 for plate fastening, or -02 for stem fastening

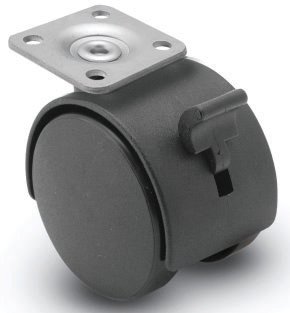

Black soft tread wheel (on 1 5/8" and hard rubber on 2") for both carpet and hard floors. For use on small furniture and chairs. Double race ball bearing construction. We stock these only in stem fastening. #13 plate fastening also available.

Sold per caster

Plastic or rubber wheel swivel casters with finished horns. For lightweight furniture. 1/2" x 3" is generally used for tea carts.

Sold per caster

• Order as -13 or -17 for plate fastening, or -02 for stem fastening
• Colors: WA (Windsor Antique), WH (White), BB (Bright Brass), ZC (Zinc), BL (Black), NL (Nickel),
• BR (Brown).

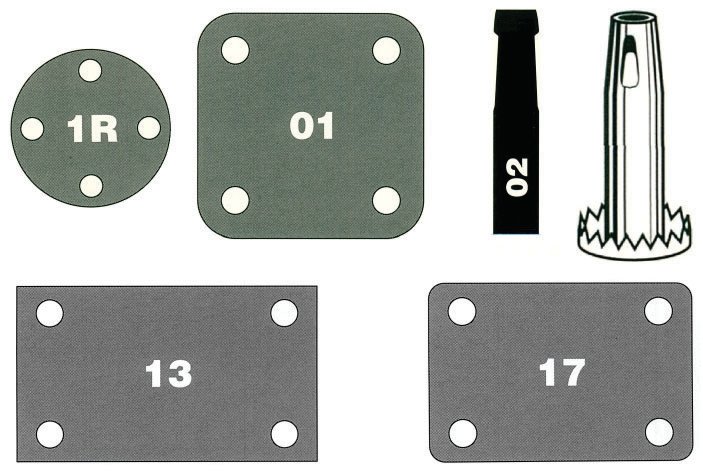

• -1R plates are 1 1/16" diameter. 25/32" x 25/32" hole spacing. 5/32" holes.
• -01 plates are 1 1/2" square. 1" x 1" hole spacing. 3/16" holes.
• -02 stems and sockets require 3/8" hole in wood.
• -13 plates are 2" x 1 3/16". 1 9/16" x 13/16" hole spacing. 3/16" holes.
• -17 plates are 1 3/4" x 1 3/16". 1 5/16" x 13/16" hole spacing. 3/16" holes.

Hard rubber wheels give mobility to heavy loads on smooth hard surfaces including finished concrete oors where quiet movement and maximum floor protection are major considerations. Swivel and rigid models available.

Sold per caster

Gray PERFORMA, abrasion resistant rubber on polypropylene wheels give a smooth-performa, effortless glide to any load. Great improvement and unbelievable quietness on shop carts, material carts, in offices or manufacturing. A 3/8" axle runs on ball bearings. Wheels are non-marking and surface resistance of less than 105 ohms. Plate size is 2 1/2" x 3 5/8" x 5/32" thick. Brakes are ordered separate and easily field installed as required. Works with swivel caster only.

Sold per caster/brake

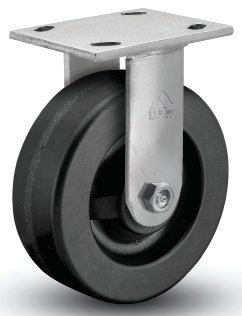

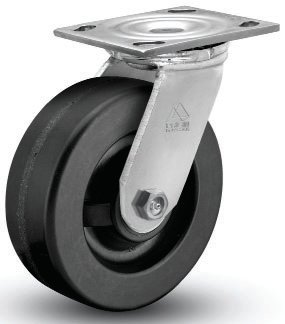

Heavy duty phenolic non-marking wheels impervious to water with good chemical resistance. 900 lb. weight capacity is an excellent choice for lumber crates.

Sold per caster

Nickel cushion glide for office and household furniture with 1/4" threads, 1" long stem. Ideal for leveling wood kitchen tables.

Sold each

Nickel cushion nail-on glide for wooden furniture legs. Moves smoothly over floor.

Sold per m (1000)/each

For wooden legs. Non-rust white or beige.

Sold per m (1000)/each

Works great on 3/4" thick wooden furniture bench legs.

Sold per m (1000)/each

Staple-on temporary glides for cabinets and furniture.

Sold per m (1000)/each

• Volume discounts available on large quantities. Call for quote.
• Colors: WH (White), ZC (Zinc), BL (Black), NL (Nickel), BR (Brown), BG (Beige).

Power Pack Kitchen ventilators featuring multispeed motors, push button controls, directional lights and halogen lamps. Comes with ducting, supply cords and filters. Order hood liners and ductless conversion kits separately.

Sold per ventilator

Sold per liner

• SY-HLT
• Special Order. Allow 2 weeks for delivery.
• Additional handling charges apply. Refer to page 282 for freight rates.
• 26.50" 1 Oversize package charge applies. Ships via truck freight. Refer to page 286 for freight rates.
• 32.50" 2
• 2.50" 13.75"
• 46.37" 2 SY-HLZ
• 40.37" 2
• 18.12" 34.37" 1
• 28.37" 1
