Woodchopper Pneumatic Routers
#2082 Woodchopper Router
Catalog p.218Compact and lightweight but hefty enough for the medium duty job. Spiral depth adjustment has 1/32" index. Fast and accurate set-up. Designed for the professional craftsman. 1/2 hp motor. Adapts to Porter Cable templet guide.
Sold per router
| Product # | Description | |
|---|---|---|
| WC-2082 | Router, 1/4" collet chuck | |
| WC-2082 |

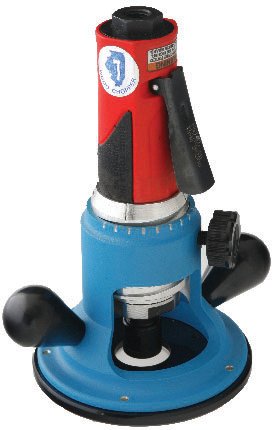

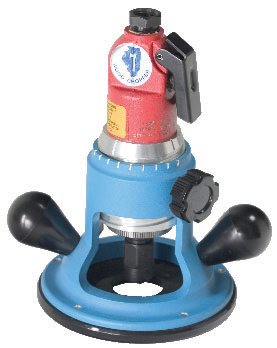

#1954 Woodchopper Router
Catalog p.218This hefty router is identical to the WC-2082 except with a 3/4 hp heavy duty motor designed for long life.
Sold per router
| Product # | Description | |
|---|---|---|
| WC-1954 | Router, 1/4" collet chuck |
#1025 Woodchopper Router
Catalog p.218This router utilizes the same easy adjusting base as the WC-2082 and WC-1954. Equipped with a 1 HP motor which makes this the most powerful 1/4" air router on the market today.
Sold per router
| Product # | Description | |
|---|---|---|
| WC-1954 | ||
| WC-1025 | Router, 1/4" collet chuck | |
| WC-1025 |

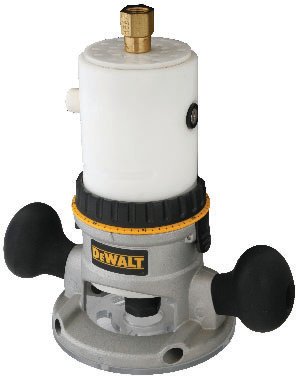

#900DB Woodchopper Router
Catalog p.218This new 2 hp router with a Dewalt base offers more power than the WC-198. Comes with clear sub-base and uses Porter-Cable style templet guides. 1/4", 3/8" and 1/2" collet capacities. Standard with 1/2" collet.
Sold per router
| Product # | Description | |
|---|---|---|
| WC-DA900DW-FB | Router, 1/2" collet chuck |

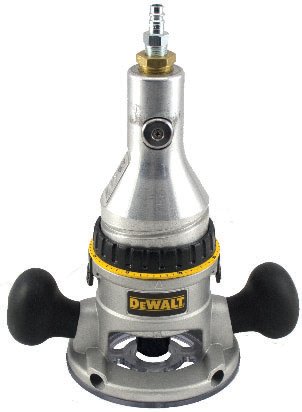

#W911 Woodchopper Router
Catalog p.218A NEW 2 1/4 HP router to make short and easy work of all your projects. Featuring an all American made motor utilizing hardened steel and engineered components for a durable long
Sold per router
| Product # | Description | |
|---|---|---|
| WC-900DB | lasting router. Comes standard with a 1/2" collet. 1/4" and 3/8" collets available. | |
| WC-W911-12 | Router, 1/2" collet chuck | |
| WC-W911-38 | Router, 3/8" collet chuck (for wall builders) |

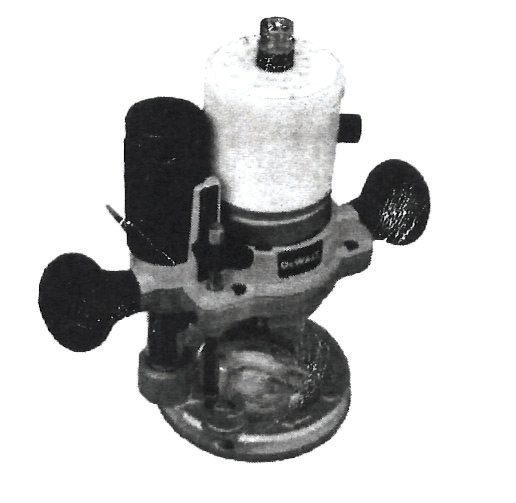

DA900DW-PB
Catalog p.218Designed for all types of routing operations. Smooth plunging action and micro height adjustment. Standard with 1/2" collet. 1/4" and 3/8" collets available. Adapts to Porta-Cable template guides. 2HP 23,000 RPM Motor.
Sold per router
| Product # | Description | |
|---|---|---|
| WC-W911 | ||
| WC-DA900DW-PB | Plunge router, 1/2" collet chuck |
Woodchopper Router Accessories
Templet Guide Plate
Catalog p.219Allows use of template guide adapter on older Woodchopper routers.
Sold each
| Product # | Description | |
|---|---|---|
| WC-10300 | Templet Guide Plate |
- DA900DW-PB
Threaded Template Guide Adapter
Catalog p.219Works with the Template Guide Plate listed above and also on older Bosch router systems to allow use of Porter-Cable Template Guides
Sold each
| Product # | Description | |
|---|---|---|
| WC-10300 | ||
| SB-RA1110 | ||
| SB-RA1110 | Template Guide Adapter |

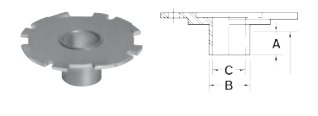

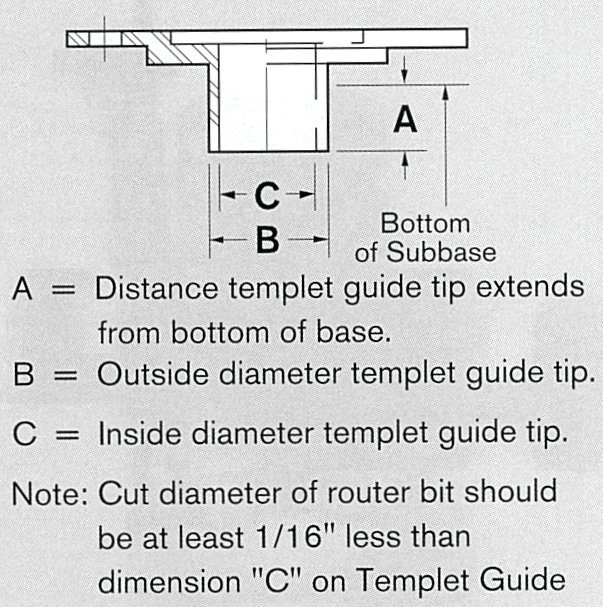

Porter-Cable Templet Guides
Catalog p.219For use with all Woodchopper Routers
Sold each
| Product # | A | Dimensions B | C | |
|---|---|---|---|---|
| PC-42237 | PC-42036 5/16" | 3/8" | 9/32" | |
| PC-42027 | 5/32" | 7/16" | 11/32" | |
| PC-42033 | 5/16" | 1/2" | 13/32" | |
| PC-42046 | 7/32" | 5/8" | 17/32" | |
| PC-42237 | Lock nut for Porter-Cable templet guides |
Router Collets
Catalog p.219Replacement collets for WC-900DB Router.
Sold per collet
| Product # | Description | |
|---|---|---|
| PC-42036 | - 42046 Replacement collets for WC-S198, WC-6985 and WC-W911Routers. | |
| ST-21126 | ST-21126 1/4" collet capacity | |
| ST-21125 | ||
| ST-21125 | 3/8" collet capacity | |
| ST-21124 | ||
| ST-21124 | 1/2" collet capacity | |
| FDR-14 | ||
| FDR-38 | ||
| FDR-12 | FDR-14 1/4" collet capacity | |
| FDR-38 | 3/8" collet capacity | |
| FDR-12 | 1/2" collet capacity |
Collet Reducer Bushings
Catalog p.219Use as a reducer in 1/2" router collets.
Sold per reducer
| Product # | Description | |
|---|---|---|
| SE-6400 | ||
| SE-6402 | SE-6400 1/2" OD x 1/4" ID reducer bushing | |
| SE-6402 | 1/2" OD x 3/8" ID reducer bushing |
Router Bits and Accessories

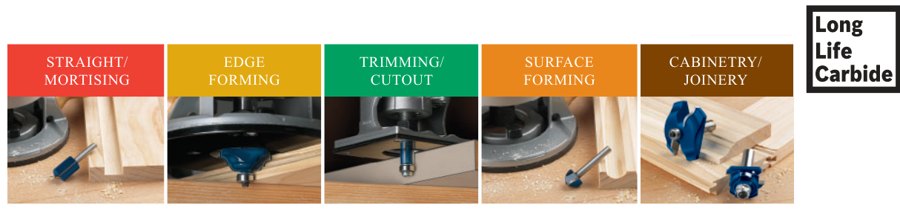

Industrial Router Bits
Catalog p.220Bosch uses its improved micrograin carbide and a special heat-treating process to provide router bit precision and durability. This accuracy is achieved across hundreds of profiles for mortising, spiral cuts and edging in wood, plus specialty cuts in plastic and laminate.
Straight/Mortising Router Bits

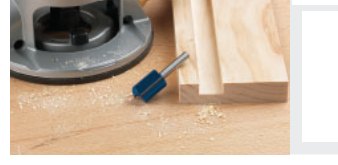

Laser Depth Scale
Catalog p.220Laser-engraved markings allow for fast, easy set up and precise depth of cut. This feature is only available on carbide- tipped straight bits.

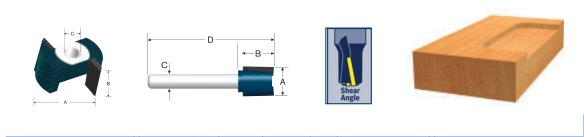

Carbide-Tipped Hinge Mortising Bits
Catalog p.220Micrograin bits cut fast for mortises when work is started at the edge and provide a smooth finish cut that is ideal for surfacing operations. Useful when good chip clearance is important, especially in gummy wood.
Specifications
- 82816 shank for use with 85234M cutter
- 92839 and 92840 are shanks for use with 85238M cutter
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | Thread | |
|---|---|---|---|---|---|---|
| 85249M | 1/2" ★ In stock | 3/4" | 1/4" | 2" | - | |
| SE1301 | 5/8" | 3/4" | 1/4" | 2" | - | |
| 85248M | 3/4" | 3/4" | 1/4" | 2" | - | |
| 85234B | 1/2" | 1/2" | - | - | 1/4"-28 | |
| SE13500 | - ★ In stock | 5/8" | - | - | 1/4"-28 | |
| 82816 | - ★ In stock | - | 1/4" | 1-13/16" | 1/4"-28 | |
| 85238M | 1-1/4" * ★ In stock | 5/8" | - | - | 5/16"-24 | |
| 92839 | - ★ In stock | - | 1/4" | 1-5/8" | 5/16"-24 | |
| 92840 | - | - | 1/2" | 1-13/16" | 5/16"-24 |
- *Features shear angle
- *Replacement for 85234M.
Carbide-Tipped Lock Mortising Bits
Catalog p.220For micrograin bits that work with lock mortisers using 1/4"-28 thread. Mount directly on the spindle shaft of Bosch item 1604LM or Porter-Cable® 513.
Specifications
- 82816 shank allows lock mortising cutters to be used in portable routers
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | Thread | Description | |
|---|---|---|---|---|---|---|
| 85634M | 3/4" | 1/2" | - | 1/4"-28 | Cutter * | |
| 85635M | 1" | 1/2" | - | 1/4"-28 | Cutter * | |
| 85636M | 1-1/4" | 5/8" | - | 1/4"-28 | Cutter * | |
| 82816 | - | - | 1/4" | 1/4"-28 | Arbor ★ In stock |
- *Features shear angle
Industrial Router Bits

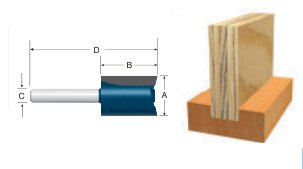

Carbide-Tipped Plywood Mortising Bits
Catalog p.220Micrograin bits designed with undersized cut diameters to match up to the actual thickness of 1/4", 1/2" and 3/4" plywood. Produces a tight fit when mortising standard plywood.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | Application | |
|---|---|---|---|---|---|---|
| 84601M | 31/64" | 3/4" | 1/4" | 2-1/4" | 1/2" plywood | |
| 84602M | 23/32" | 3/4" | 1/4" | 2" | 3/4" plywood | |
| 84603M | 23/32" | 1-1/4" | 1/2" | 2-7/8" | 3/4" plywood | |
| RBS024SXW | Down Shear plywood mortising set includes: (1) 1/4", (1) 1/2" | and (1) 3/4" | plywood bits with 1/2" | shank | ||
| RBS023XW | Plywood mortising set includes: (1) 84600M, (1) 84601M and (1) 84602M |

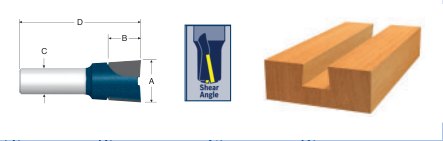

Carbide-Tipped Stair Routing Bit
Catalog p.220Micrograin bit cuts a dovetail-like joint for cutting stair stringers to accept stair treads.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | Angle | |
|---|---|---|---|---|---|---|
| SE1601 | 7/8" | 5/8" | 1/2" | 2-1/2" | 3° | |
| SE1645 | 7/8" | 7/8" | 1/2" | 2-3/4" | 7° |

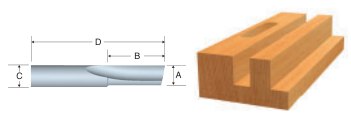

Solid Carbide Double-Flute Straight Bits
Catalog p.220Micrograin bits provide exceptional smoothness of cut and balanced cutting with minimal vibration. Positive hook angles cut efficiently; specially designed tips offer fast plunge cutting. Strong webbing and heavy cutter backing provide superior bit life.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 85213M | 1/8" | 1/2" | 1/4" | 2" | |
| SST210 | 3/16" | 1/2" | 1/4" | 2" | |
| 85617M | 1/4" | 1" | 1/4" | 3" |

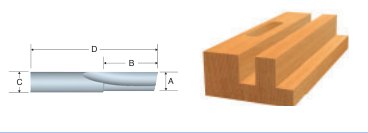

Solid Carbide Single-Flute Straight Bits
Catalog p.220Designed for operations where high production feed rates are essential.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| SST100 | 1/16" | 1/4" | 1/4" | 1-1/2" | |
| 85209M | 1/8" | 7/16" | 1/4" | 2" |

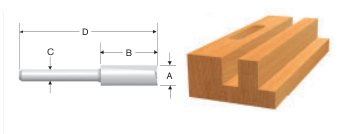

High-Speed Steel Double-Flute Straight Bits
Catalog p.221Provide smooth and balanced cutting with minimal vibration. Positive hook angles cut efficiently while specially designed tips provide fast plunge cutting. Strong webbing and heavy cutter backing extend bit life.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 85180 | 1/4" | 1-1/8" | 1/4" | 2-3/8" | |
| 85102 | 5/8" | 5/8" | 1/4" | 1-5/8" | |
| 85104 | 3/4" | 5/8" | 1/4" | 1-5/8" |

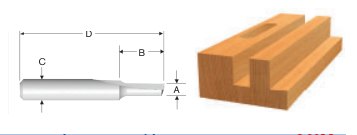

High-Speed Steel Single-Flute Straight Bits
Catalog p.221Designed for applications where high production feed rates are essential. Optimum chip clearance and specially designed tip offers fast plunge cutting.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | Quantity | |
|---|---|---|---|---|---|---|
| 85152 | 1/8" | 5/8" | 1/4" | 1-31/32" | 1 | |
| 85152B100 | 1/8" * | 5/8" | 1/4" | 1-31/32" | 100 | |
| 85153B100 | 3/16" * | 3/4" | 1/4" | 2-1/32" | 100 |
- *Bulk item

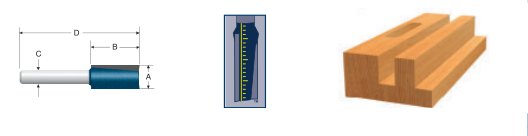

Carbide-Tipped Double-Flute Straight Bits
Catalog p.221Micrograin bits are designed for excellent smoothness of cut and balanced cutting with minimal vibration. Positive hook angles cut efficiently while specially designed tips provide fast plunge cutting. Strong webbing and heavy cutter backing extend bit life.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 85221M | 1/4" | 5/8" | 1/4" | 2" | |
| 85250M | 1/4" ★ In stock | 7/8" | 1/4" | 2-1/8" | |
| 85460M | 1/4" * | 3/4" | 1/2" | 2-1/2" | |
| 85613M | 1/4" * ★ In stock | 1" | 1/4" | 2-1/4" | |
| 85459M | 1/4" * | 1" | 1/4" | 2-7/8" | |
| 85224M | 5/16" ★ In stock | 1" | 1/4" | 2-1/4" | |
| SE1061 | 3/8" | 3/4" | 1/2" | 2-1/2" | |
| 85225M | 3/8" ★ In stock | 1" | 1/4" | 2-1/4" | |
| 85241M | 3/8" ★ In stock | 1" | 1/2" | 2-3/4" | |
| 85276M | 3/8" | 1" | 3/8" | 2-1/2" | |
| 84207M | 3/8" ★ In stock | 1-1/4" | 1/2" | 3" | |
| 85226M | 7/16" | 1" | 1/4" | 2-1/4" | |
| 85227M | 1/2" ★ In stock | 1" | 1/4" | 2-1/4" | |
| 85427M | 1/2" | 1" | 1/2" | 2-5/8" | |
| SE1043 | 1/2" | 1" | 3/8" | 2-1/2" | |
| 84210M | 1/2" | 1-1/4" | 1/2" | 2-7/8" | |
| 85242M | 1/2" ★ In stock | 1-1/2" | 1/2" | 3-1/8" | |
| 85256M | 1/2" | 1-1/2" | 1/2" | 4-1/4" | |
| 85251M | 1/2" ★ In stock | 2" | 1/2" | 4-1/4" | |
| 85252M | 1/2" * | 2-1/2" | 1/2" | 4-1/2" | |
| 85229M | 9/16" | 3/4" | 1/4" | 2" | |
| 85230M | 5/8" | 3/4" | 1/4" | 2" | |
| 85454M | 5/8" ★ In stock | 1-1/4" | 1/2" | 2-7/8" | |
| 85232M | 3/4" | 3/4" | 1/4" | 2" | |
| 85265M | 3/4" ★ In stock | 1-1/4" | 1/2" | 2-7/8" | |
| 85222M | 3/4" | 2" | 3/4" | 4" | |
| 85272M | 3/4" | 2" | 1/2" | 3-5/8" | |
| SE1107 | 3/4" | 2-1/2" | 3/4" | 4-1/2" | |
| SE1088 | 25/32" | 1-1/4" | 1/2" | 3" | |
| 85458M | 7/8" | 1-1/4" | 1/2" | 2-7/8" | |
| 85243M | 1" ★ In stock | 1-1/4" | 1/2" | 2-7/8" | |
| 85465M | 1-1/8" | 1-1/4" | 1/2" | 2-7/8" | |
| SE1097 | 1-1/4" | 1-1/2" | 1/2" | 3" | |
| SE1099 | 1-1/2" | 1-1/4" | 1/2" | 3" | |
| SE1100 | 1-3/4" | 1-1/4" | 1/2" | 3" | |
| SE1101 | 2" | 1-1/4" | 1/2" | 3" |
- *Not guaranteed against breakage due to extreme length

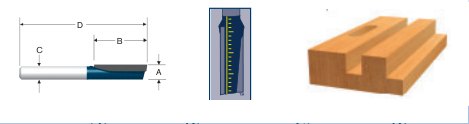

Carbide-Tipped Single-Flute Straight Bits
Catalog p.221Micrograin bits designed for applications where high production feed rates are essential. Optimum chip clearance and specially designed tip offer fast plunge cutting.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 84206M | 1/4" | 3/4" | 1/4" | 2" | |
| 85404M | 1/4" | 3/4" | 1/2" | 2-1/2" | |
| 85410M | 1/4" ★ In stock | 1" | 1/4" | 2-1/4" | |
| SE1035 | 3/8" | 1" | 3/8" | 2-1/2" | |
| SE1036 | 3/8" | 1-1/4" | 3/8" | 2-7/8" | |
| 85409M | 3/8" ★ In stock | 1" | 1/2" | 2-3/4" | |
| 85426M | 1/2" | 1-1/4" | 1/2" | 3-1/8" | |
| SE1054 | 1/2" | 1-1/2" | 1/2" | 3-1/8" | |
| 85264M | 1/2" | 2" | 1/2" | 4-1/4" |

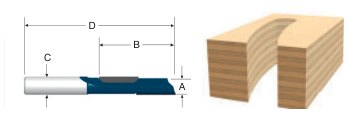

Staggertooth Bit
Catalog p.221Micrograin bits with staggered cutting flutes give two-flute balance with single-flute chip clearance for fast plunge cutting.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 85278M | 1/2" ★ In stock | 2-3/16" | 1/2" | 4-1/2" |
Plastic Cutting Router Bits

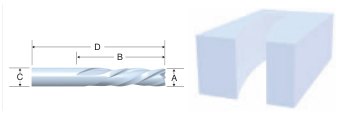

Solid Carbide Double-Flute Chipbreaker Spiral Bit
Catalog p.221Appropriate for use when faster feed rates and chip removal are desired. Available in up or down spirals to suit all applications.
Specifications
- Industrial/CNC bit for high-duty cycle applications
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | Spiral | |
|---|---|---|---|---|---|---|
| SRU155CB | 1/2" | 1-1/8" | 1/2" | 3" | Up |

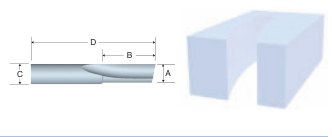

Solid Carbide Single-Flute O-Flute Bit
Catalog p.221Micrograin bit for fast plastic cutting at high speeds. Ideal for soft plastics such as ABS, polycarbonate, polyethylene and PVC. The single- flute design accommodates a faster feed rate.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| SPL130 | 3/8" | 1" | 3/8" | 3" |

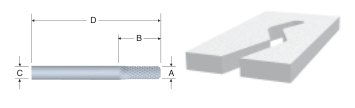

Solid Carbide Fiberglass Bit/Burr Bit
Catalog p.221Useful for cutting fiberglass, epoxy resins and similar composite material.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 85619M | 1/4" | 3/4" | 1/4" | 2" |

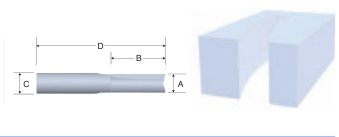

Solid Carbide Double-Flute Straight Bit
Catalog p.221Micrograin bit for general-purpose routing of difficult-to-cut materials, particularly when smaller diameters are required.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 85987M | 1/4" | 1" | 1/4" | 2-1/2" |

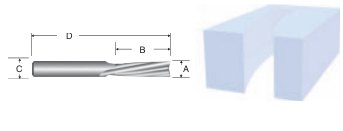

Solid Carbide Double-Flute Acrylic Bits
Catalog p.222Provides smooth finishing in acrylic materials, both soft and hard plastics.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 85611M | 1/4" | 1" | 1/4" | 2 1/2" |

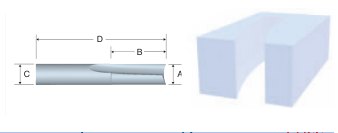

Solid Carbide Double-Flute O-Flute Bits
Catalog p.222Micrograin bits for fast, smooth plastic cutting at high speeds. Two- flute design provides an exceptional edge finish. Good for soft plastics such as ABS, polycarbonate, polyethylene and PVC.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 86007M | 1/8" | 1/2" | 1/4" | 2" | |
| 86010M | 1/4" | 1" | 1/4" | 2-1/2" |
Spiral Router Bits

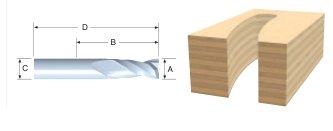

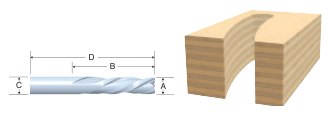

Solid Carbide Double-Flute Downcut Spiral Bits
Catalog p.222For use when material needs to be pushed away from the router motor. Excellent bits for template cutting when downward pressure is advantageous.
Specifications
- Industrial/CNC bit for high duty cycle applications
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| SRD202MD | 1/8" | 1/2" | 1/4" | 2" | |
| SRD210 | 3/16" | 3/4" | 1/4" | 2" | |
| SRD218MD | 1/4" | 3/4" | 1/4" | 2-1/2" | |
| 85903M | 1/4" | 1" | 1/4" | 2-1/2" | |
| 85905M | 3/8" | 1-1/4" | 1/2" | 3" | |
| 85906M | 1/2" | 1-1/4" | 1/2" | 3" | |
| SRD260 | 1/2" | 1-5/8" | 1/2" | 3-1/2" |
Solid Carbide Triple-Flute Downcut Spiral Bit
Catalog p.222Ideal for penetrating hard-to-route materials under reduced spindle speeds or horsepower. The downcut holds the material and forces chips down during routing.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| SRD555T | 1/2" | 1 1/4" | 1/2" | 3" | |
| SRD560T | 1/2" | 1 5/8" | 1/2" | 3 1/2" | |
| SRD565T | 1/2" | 2" | 1/2" | 4" |

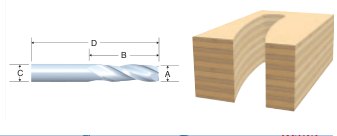

Solid Carbide Double-Flute Upcut Spiral Bits
Catalog p.222For use when material needs to be pulled in an upward motion toward the router motor, improving chip removal. Excellent when dust collection is required.
Specifications
- Industrial/CNC bit for high duty cycle applications
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 85908M | 1/8" | 1/2" | 1/4" | 2" | |
| SRU110 | 3/16" | 3/4" | 1/4" | 2" | |
| SRU118 | 1/4" | 3/4" | 1/4" | 2-1/2" | |
| 85911M | 1/4" | 1" | 1/4" | 2-1/2" | |
| 85913M | 3/8" | 1-1/4" | 1/2" | 3" | |
| SRU155 | 1/2" | 1-1/4" | 1/2" | 3" | |
| SRU160 | 1/2" | 1-5/8" | 1/2" | 3-1/2" |

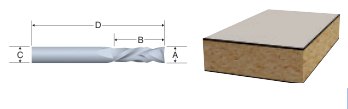

Solid Carbide Double-Flute Compression Spiral Bit
Catalog p.222Ideal for general use with difficult-to-route materials. Route rigid hard plastics, double- sided plywood and melamine.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 86026M | 1/4" | 7/8" | 1/4" | 2-1/2" |
Edge Forming Router Bits

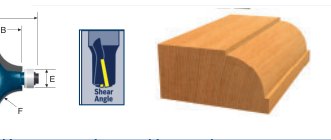

Carbide-Tipped Beading Bits
Catalog p.222Micrograin control-cut bits create attractive, decorative edging. Items 84413M and 85493M are not control-cut bits.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | F. Radius | |
|---|---|---|---|---|---|---|---|
| 84413M | / 7/8" | 1/2" | 1/2" | 2-7/16" | 3/8" | 3/16" | |
| SEBE2005 | / 7/8" | 1/2" | 1/2" | 2-7/16" | 3/8" | 3/16" | |
| 85493M | 7/8" ★ In stock | 1/2" | 1/4" | 2" | 3/8" | 3/16" | |
| 85494M | 1" ★ In stock | 1/2" | 1/4" | 2" | 3/8" | 1/4" | |
| 85496M | 1-1/4" ★ In stock | 5/8" | 1/4" | 2-1/8" | 3/8" | 3/8" | |
| 85497M | 1-1/2" ★ In stock | 3/4" | 1/4" | 2-1/4" | 3/8" | 1/2" |

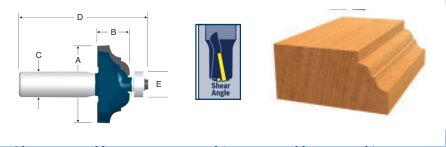

Carbide-Tipped Classical Bits
Catalog p.222Micrograin control-cut bits add classic beauty with decorative edging.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | |
|---|---|---|---|---|---|---|
| 85579M | 1-1/4" ★ In stock | 1/2" | 1/4" | 2-3/32" | 1/2" | |
| 85580M | 1-1/4" | 1/2" | 1/2" | 2-3/8" | 1/2" | |
| 85581M | 1-1/2" ★ In stock | 5/8" | 1/4" | 2-3/16" | 1/2" | |
| 85582M | 1-1/2" ★ In stock | 5/8" | 1/2" | 2-9/16" | 1/2" |

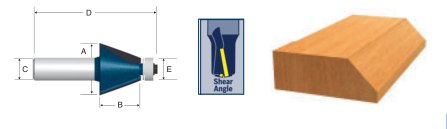

Carbide-Tipped Chamfer Bits
Catalog p.222Micrograin control-cut bits for beveling and decorative edging.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | Angle | |
|---|---|---|---|---|---|---|---|
| 85299M | 1-1/4" | 15/16" | 1/2" | 2-7/8" | 1/2" | 22.5° | |
| SE2305 | 1-3/8" ★ In stock | 1/2" | 1/2" | 2-3/8" | 3/8" | 45° | |
| 85298M | 1-5/16" ★ In stock | 1/2" | 1/4" | 2" | 3/8" | 45° | |
| 85593M | 2-13/32" | 1" | 1/2" | 3" | 1/2" | 45° |

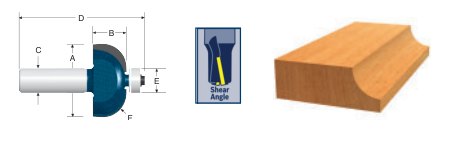

Carbide-Tipped Cove Bits
Catalog p.222Micrograin control-cut bits for decorative edging and period furniture.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | F. Radius | |
|---|---|---|---|---|---|---|---|
| 85205M | 7/8" ★ In stock | 9/16" | 1/4" | 2" | 3/8" | 1/4" | |
| 85206M | 1-1/8" ★ In stock | 9/16" | 1/4" | 2-3/32" | 3/8" | 3/8" | |
| 85207M | 1-3/8" ★ In stock | 5/8" | 1/4" | 2-1/8" | 3/8" | 1/2" | |
| 84437M | 2" | 1" | 1/2" | 3" | 1/2" | 3/4" |

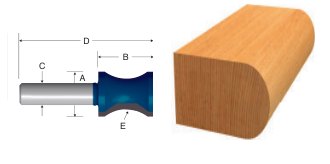

Carbide-Tipped Convex Edging Bit
Catalog p.223Micrograin bits create a shallow bullnose. Cutters above and below bit creates a top and bottom fillet on thicker stock.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Radius | |
|---|---|---|---|---|---|---|
| 84440M | 13/16" | 1-1/4" | 1/2" | 2-3/4" | 23/32" |

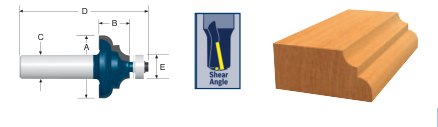

Carbide-Tipped Cove and Bead Bits
Catalog p.223Micrograin bits used to create an attractive accent with a classic woodworking design.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Bearing Diameter | |
|---|---|---|---|---|---|---|
| 85604M | 1-3/8" ★ In stock | 11/16" | 1/4" | 2-1/4" | 1/2" | |
| 85605M | 1-3/8" | 11/16" | 1/2" | 2-5/8" | 1/2" |
Carbide-Tipped Edge Beading Bits
Catalog p.223Versatile micrograin bits add attractive edging on new pieces and match many older molding cuts for remodeling work.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | F. Radius | |
|---|---|---|---|---|---|---|---|
| 85631M | 7/8" ★ In stock | 9/16" | 1/4" | 2-1/8" | 1/2" | 1/8" | |
| 85668M | 1-1/4" ★ In stock | 3/4" | 1/4" | 2-5/16" | 16mm | 1/4" |

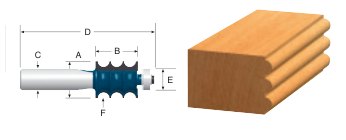

Carbide-Tipped Multi-Bead/Reed Bit
Catalog p.223Micrograin control-cut bits create classic triple beading with fillets in one pass.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | F. Radius | |
|---|---|---|---|---|---|---|---|
| 84611M | 7/8" | 1" | 1/2" | 3" | 16mm | 1/8" |

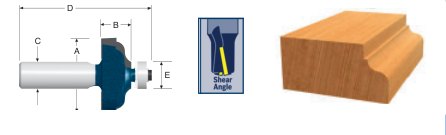

Carbide-Tipped Ogee Bits with Fillet
Catalog p.223Micrograin control-cut bits offer three distinct cuts with one bit. Graceful lines of the ogee cut can be accented with one or two fillets by lowering the depth setting or using 3/8" bearing (item 3600900501).
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | Radius | |
|---|---|---|---|---|---|---|---|
| 85584M | 1-3/8" ★ In stock | 9/16" | 1/4" | 2-1/8" | 1/2" | 5/32" | |
| 85586M | 1-5/8" ★ In stock | 3/4" | 1/2" | 2-3/4" | 1/2" | 1/4" |

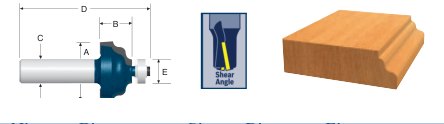

Carbide-Tipped Wavy Edge Bit
Catalog p.223Micrograin bit has a unique pattern to create soft, rounded corners.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | Radius | |
|---|---|---|---|---|---|---|---|
| 85606M | 1-1/4" ★ In stock | 11/16" | 1/4" | 2-1/4" | 1/2" | 5/32" |

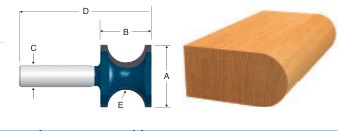

Carbide-Tipped Bullnose Bits
Catalog p.223Micrograin bits for window sills, shelves or stair treads.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Radius | |
|---|---|---|---|---|---|---|
| 84432M | 19/32" | 1/2" | 1/2" | 2" | 1/8" | |
| 84434M | 1-1/4" | 1-5/16" | 1/2" | 2-3/4" | 3/8" | |
| 84436M | 1-21/32" | 1-9/16" | 1/2" | 3-1/16" | 1/2" |

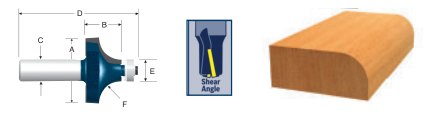

Carbide-Tipped Roundover Bits
Catalog p.223Micrograin bits for smooth, uniformly rounded edges. A lower depth setting produces a rounded corner with a decorative bead.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | F. Radius | |
|---|---|---|---|---|---|---|---|
| 85289M | 5/8" ★ In stock | 5/16" | 1/4" | 1-7/8" | 1/2" | 1/16" | |
| 85290M | 3/4" ★ In stock | 3/8" | 1/4" | 2" | 1/2" | 1/8" | |
| 85588M | 3/4" | 3/8" | 1/2" | 2-5/16" | 1/2" | 1/8" | |
| 85616M | 13/16" ★ In stock | 5/16" | 1/4" | 1-29/32" | 1/2" | 5/32" | |
| 85293M | 7/8" ★ In stock | 1/2" | 1/4" | 2" | 1/2" | 3/16" | |
| 85294M | 1" * ★ In stock | 1/2" | 1/4" | 2" | 1/2" | 1/4" | |
| 84405M | 1" * | 1/2" | 1/2" | 2-7/16" | 1/2" | 1/4" | |
| SE2006 | 1" ★ In stock | 1/2" | 1/2" | - | 1/2" | 1/4" | |
| 85295M | 1-1/8" * ★ In stock | 1/2" | 1/4" | 2-1/16" | 1/2" | 5/16" | |
| 85296M | 1-1/4" * ★ In stock | 5/8" | 1/4" | 2-3/16" | 1/2" | 3/8" | |
| 85594M | 1-1/4" * ★ In stock | 5/8" | 1/2" | 2-9/16" | 1/2" | 3/8" | |
| 85297M | 1-1/2" * ★ In stock | 11/16" | 1/4" | 2-1/4" | 1/2" | 1/2" | |
| 85595M | 1-1/2" ★ In stock | 3/4" | 1/2" | 2-5/8" | 1/2" | 1/2" | |
| 85596M | 1-3/4" * ★ In stock | 7/8" | 1/2" | 2-7/8" | 1/2" | 5/8" | |
| 85434M | 2" * ★ In stock | 1" | 1/2" | 2-15/16" | 1/2" | 3/4" | |
| 85432M | 2-1/4" * | 1-1/4" | 1/2" | 3-1/16" | 1/2" | 7/8" | |
| 85433M | 2-1/2" * | 1-1/4" | 1/2" | 3-1/4" | 1/2" | 1" |
- *Control-cut bit
- *Replacement for 84405M.
Carbide-Tipped Ogee and Bead Bit
Catalog p.223Classic architectural molding micrograin bit for making furniture and cabinet molding, door and window casing and other millwork.
Specifications
- Recommended for use with a router table
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | F. Large Radius | G. Small Radius | |
|---|---|---|---|---|---|---|---|---|
| 84621M | 1" | 1-11/16" | 1/2" | 3-1/4" | 1/2" | 3/8" | 1/8" |
Carbide-Tipped Reverse Curve Ogee and Bead Bit
Catalog p.223Classic architectural molding micrograin bit for making furniture and cabinet molding, door and window casing and other millwork.
Specifications
- Recommended for use with a router table
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | F. Large Radius | G. Small Radius | |
|---|---|---|---|---|---|---|---|---|
| 84620M | 7/8" | 1-1/2" | 1/2" | 3-3/8" | 1/2" | 5/16" | 5/32" |

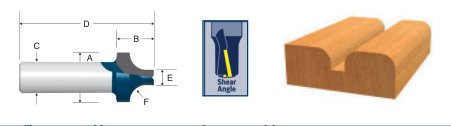

Carbide-Tipped Plunge Roundover Bit
Catalog p.224Micrograin control-cut bit for special decorative grooving and edging.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Tip Dia. | F. Radius | |
|---|---|---|---|---|---|---|---|
| 85478M | 3/8" ★ In stock | 5/16" | 1/4" | 1-15/16" | 1/8" | 1/8" |

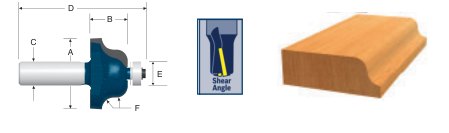

Carbide-Tipped Roman Ogee Bits
Catalog p.224Micrograin control-cut bits for decorative edging and period furniture.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | F. Radius | |
|---|---|---|---|---|---|---|---|
| 85270M | 1" ★ In stock | 5/8" | 1/4" | 2-1/8" | 3/8" | 5/32" | |
| 85591M | 1" ★ In stock | 5/8" | 1/2" | 2-1/2" | 1/2" | 5/32" | |
| 85271M | 1-3/8" ★ In stock | 3/4" | 1/4" | 2-1/4" | 3/8" | 1/4" | |
| 85592M | 1-3/8" ★ In stock | 7/8" | 1/2" | 2-5/8" | 3/8" | 1/4" |

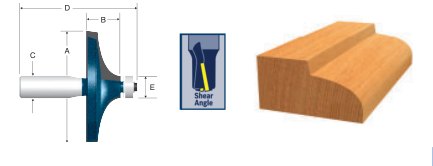

Carbide-Tipped Table Edge Bit
Catalog p.224Creates a wide profile for attractive edging and curve for tables or handrails.
Specifications
- Recommended for use with a router table
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Bearing Diameter | |
|---|---|---|---|---|---|---|
| 84515M | 2-3/4" | 5/8" | 1/2" | 3" | 1/2" |

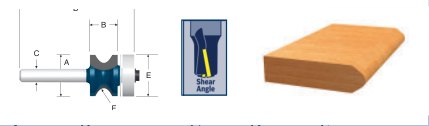

Carbide-Tipped Chair Mat Edge Bit
Catalog p.224Micrograin control-cut bits cut out and edge form chair mats and other items fabricated from softer plastic, such as vinyl and acrylic, in a single operation. The bit is designed to help minimize edge cracking in such materials and, it's also suitable for use with 1/4" and thinner wood and plywood.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | F. Radius | |
|---|---|---|---|---|---|---|---|
| 85612M | 23/32" | 1/2" | 1/4" | 2-3/4" | 19mm | 3/32" |

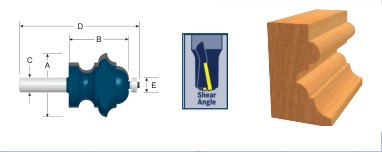

Carbide-Tipped Multi-Form Bit
Catalog p.224The micrograin bit achieves many profiles and architectural designs. With a simple adjustment to the cutter height and fence position, 50 molding patterns are available.
Specifications
- Recommended for use with a router table
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Bearing Diameter | |
|---|---|---|---|---|---|---|
| 85700M | 2-1/4" | 1-7/8" | 1/2" | 4-1/8" | 1/2" |

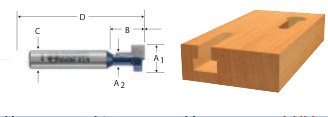

Carbide-Tipped Keyhole Bit
Catalog p.224For plunge and slots cut plus route mounting slots in picture frames and plaques.
Sold each
| Product # | A1. Large Diameter | A2. Small Diameter | B. Cutting Edge | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|---|
| 85608M | 3/8" ★ In stock | 3/16" | 7/16" | 1/4" | 1-9/16" |
Trimming/Cutout Router Bits

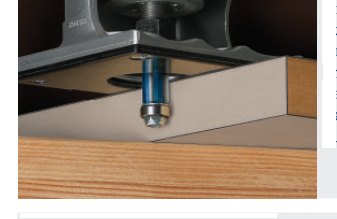

Smooth Contour
Catalog p.224Provides a smooth contour edge on laminate surfaces. Small radius eliminates the need to file the edge, saving time and possible damage to the work surface.
Extra-Clean Router Bit
Catalog p.224Shear angle provides improved cut quality, speed and extended life. For longer life For speed and long life For extra clean finish For improved edge quality
Specifications
- Heat-treated shank Premium sharpness Shear angle Bosch carbide

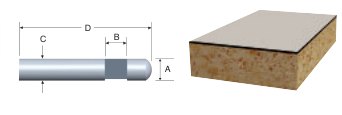

Solid Carbide Flush-Trim Bit
Catalog p.224Self-piloting bit makes flush, trim and edge cuts.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | Quantity | |
|---|---|---|---|---|---|---|
| 85285 | 1/4" ★ In stock | 1/4" | 1/4" | 1-1/2" | 1 | |
| 85285B100 | 1/4" | 1/4" | 1/4" | 1-1/2" | 100 |

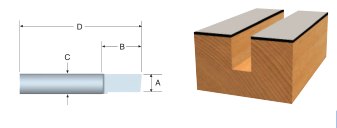

Solid Carbide Rip and Slotter Bit
Catalog p.224Used for slotting or ripping sheets of laminates, woods and paneling.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 85280 | 1/4" ★ In stock | 5/16" | 1/4" | 1-1/2" |

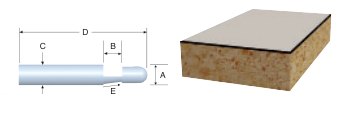

Solid Carbide Bevel-Trim Bit
Catalog p.224Provides a 7-1/2° bevel on the trim edge of plastic laminate surfaces. The self-pilot eliminates guide assembly.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Angle | Quantity | |
|---|---|---|---|---|---|---|---|
| 85286 | 1/4" ★ In stock | 1/4" | 1/4" | 1-1/2" | 7° | 1 | |
| 85286B100 | 1/4" | 1/4" | 1/4" | 1-1/2" | 7° | 100 |

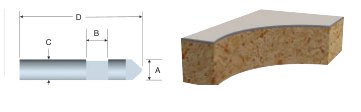

Solid Carbide Hole and Flush Trim Bit
Catalog p.225Bit drills through surface lamination into precut openings and trims edges flush in one operation.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 85287 | 1/4" ★ In stock | 1/4" | 1/4" | 1-1/2" |

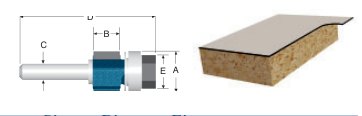

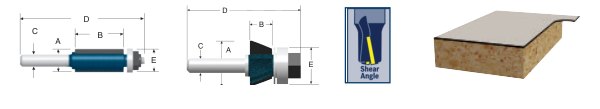

Carbide-Tipped Double-Flute Flush and Bevel Laminate Trim Bits
Catalog p.225Micrograin bits ideal for fast, smooth, accurate trim cuts with a shielded, compact ball-bearing pilot.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | Angle | |
|---|---|---|---|---|---|---|---|
| 84501M | 1/4" | 1" | 1/4" | 2-9/16" | 1/4" | Flush | |
| 85269M | 3/8" | 1/2" | 1/4" | 2-1/8" | 3/8" | Flush | |
| 85268M | 3/8" ★ In stock | 1" | 1/4" | 2-5/8" | 3/8" | Flush | |
| 85437M | 11/16" | 3/8" | 1/4" | 2-5/64" | 1/2" | Flush or 22° | |
| 85267M | 1/2" | 5/8" | 1/4" | 2-1/4" | 1/2" | Flush | |
| 85441M | 1/2" ★ In stock | 1" | 1/2" | 3-1/4" | 1/2" | Flush | |
| 85442M | 1/2" | 2" | 1/2" | 4-3/8" | 1/2" | Flush | |
| 85266M | 1/2" | 1" | 1/4" | 2-1/2" | 1/2" | Flush | |
| 84500M | 3/4" | 5/8" | 1/2" | 2-3/4" | 3/4" | Flush |
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | Angle | |
|---|---|---|---|---|---|---|---|
| 85269SM | 3/8" | 1/2" | 1/4" | 2" | 3/8" | - | |
| 85268SM | 3/8" | 1" | 1/4" | 2" | 3/8" | - | |
| 85266SM | 1/2" | 1" | 1/4" | 2" | 1/2" | - | |
| RBS020XW | Shear angle laminate trim set includes (1) 85269SM, (1) 85268SM and (1) 85266SM |

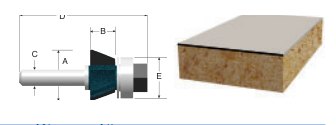

Carbide-Tipped Triple-Flute Flush and Bevel Laminate Trim Assemblies
Catalog p.225Micrograin bits for extra smooth production trimming. Assembly includes an arbor, replaceable three- wing cutter and ball bearing.
Specifications
- Replacement arbor 82808
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | Angle | Fits | |
|---|---|---|---|---|---|---|---|---|
| 85420M | 7/8" | 3/8" | 1/4" | 2" | 5/8" | 22° | - | |
| 85511M | 7/8" * | 3/8" | 1/4" | - | - | 22° | 85420M |
- *Replacement cutters

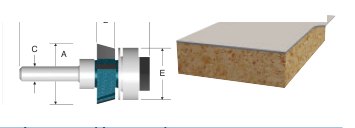

Carbide-Tipped Four-Flute Flush and Bevel Laminate Trim Assemblies
Catalog p.225Micrograin bits for ultra-smooth finish trimming. Ball bearing is equipped with a glue shield and individual assembly components are replaceable.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | Angle | |
|---|---|---|---|---|---|---|---|
| 85414M | 7/8" | 5/16" | 1/4" | 2-1/4" | 7/8" | Flush | |
| 85415M | 1" | 5/16" | 1/4" | 2-1/4" | 7/8" | 15° | |
| 85417M | 7/8" * | 5/16" | 5/16" | - | - | Flush |
- *Replacement cutter

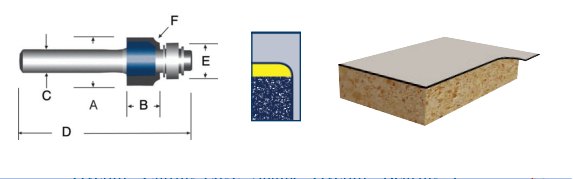

Smooth Edge Laminate Trim Bit
Catalog p.225Micrograin carbide tips provide an extra-fine finish with maximum sharpness and edge retention. Smooth contour bit routes laminate edges flush and rounded in a single pass. The slight radius produces a smooth edge which eliminates filing, saving the user time, hassle and possible damage to work.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | F. Radius | |
|---|---|---|---|---|---|---|---|
| 85316M | 1/2" * | 3/8" | 1/4" | 2" | 3/8" | 1/16 |
Carbide-Tipped Double-Flute Flush and Bevel Laminate Trim Assemblies
Catalog p.225Micrograin bits ideal for fast, accurate trim cuts.
Specifications
- Shank replacement arbor
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | Angle | |
|---|---|---|---|---|---|---|---|
| 85431M | 3/4" ★ In stock | 3/8" | 1/4" | 2" | 5/8" | 10° | |
| 85430M | 5/8" | 3/8" | 1/4" | 2" | 5/8" | Flush |

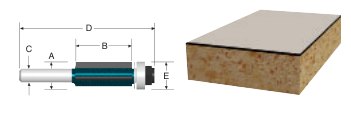

Carbide-Tipped Triple-Flute Flush Laminate Trim Bits
Catalog p.225Micrograin bit provides chatter- free production trimming with an extra-smooth, flush trim cut. Compact ball-bearing assembly is equipped with a glue shield.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Bearing Diameter | |
|---|---|---|---|---|---|---|
| 85216M | 1/2" ★ In stock | 1" | 1/4" | 2-1/2" | 1/2" | |
| 85439M | 1/2" | 1" | 1/2" | 3-1/4" | 1/2" |

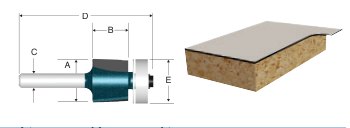

Carbide-Tipped Helical Laminate Trim Bit
Catalog p.225Provides extra smooth production trimming.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | Angle | |
|---|---|---|---|---|---|---|---|
| 85452M | 3/4" | 5/8" | 1/4" | 2-1/4" | 3/4" | Flush |

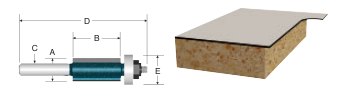

Carbide-Tipped Overhang Cutoff Bits
Catalog p.225Micrograin bits for rough sizing of plastic laminates prior to gluing, without scribing or sawing. Bit leaves a slight overhang and is ideal for tops with irregular shapes.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | Overhang | |
|---|---|---|---|---|---|---|---|
| 85217M | 3/8" * | 1/2" | 1/4" | 2-7/16" | 3/4" | 3/16" | |
| 85210M | 1/2" ** | 1" | 1/4" | 2-11/16" | 5/8" | 1/16" |
- *Single flute. **Double flute.

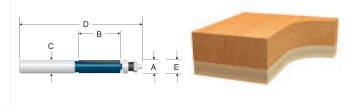

Carbide-Tipped Double-Flute Template Trim Bit
Catalog p.225Micrograin bit provides smooth cuts for laminate trimming, cutouts and pattern cutting. Comes with two ball bearings. Use two ball bearings to widen the bearing surface and reduce template wear.
Specifications
- Extra ball bearing 2610906500
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Bearing Diameter | |
|---|---|---|---|---|---|---|
| 85601M | 1/2" | 1-1/2" | 1/2" | 4-1/4" | 1/2" | |
| SE2408 | 1/2" | 2" | 1/2" | 4-1/4" | 1/2" |

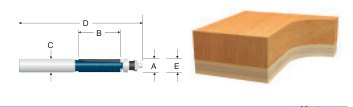

Carbide-Tipped Triple-Flute Template Trim Bit
Catalog p.226Micrograin bit for laminate trimming and trim cuts on heavier work when cutting with a template. Can be used with two ball bearings to widen the bearing surface and reduce template wear.
Specifications
- Extra ball bearing 2610906500
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Bearing Diameter | |
|---|---|---|---|---|---|---|
| 85602M | 1/2" | 1-1/2" | 1/2" | 4-3/8" | 1/2" | |
| SE2505 | 1/2" | 2" | 1/2" | 4-1/4" | 1/2" |

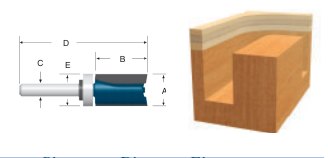

Carbide-Tipped Top Bearing Straight Trim Bits
Catalog p.226Micrograin bits with top-mounted ball bearing ride against template for pattern routing.
Specifications
- Replacement collar 3600231500
- Replacement set screw
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Bearing Diameter | |
|---|---|---|---|---|---|---|
| 85680M | 1/2" ★ In stock | 1" | 1/4" | 2-1/2" | 1/2" | |
| 85672M | 1/2" | 1-1/4" | 1/4" | 2-3/4" | 1/2" | |
| 85681M | 5/8" | 1" | 1/4" | 2-1/2" | 5/8" | |
| 85682M | 3/4" | 1" | 1/4" | 2-1/2" | 3/4" | |
| 85671M | 1-1/8" | 1-1/2" | 1/2" | 3-1/2" | 1-1/8" |

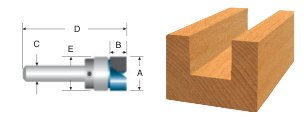

Carbide-Tipped Top Bearing Dado Clean Out Bit
Catalog p.226Short 1/4" cutting edge for dado clean out.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Bearing Diameter | |
|---|---|---|---|---|---|---|
| 85674M | 1/2" | 1/4" | 1/4" | 1-5/8" | 1/2" |

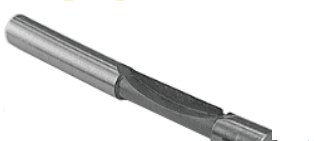

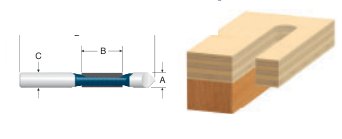

Carbide-Tipped Two Flutes Pilot Panel Bits with Drill-Through Point
Catalog p.226Two flutes deliver smooth cuts and even feed rates without chatter.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 85428M | 3/8" | 1" | 3/8" | 3-5/32" | |
| 85429M | 1/2" | 1-3/16" | 1/2" | 3-1/2" |

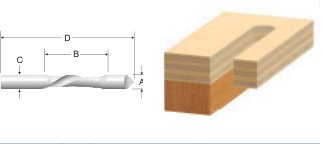

Pilot Panel Down Spiral Bits with Drill-Through Point
Catalog p.226High-speed steel bit for cutting aluminum sheets, wall panels, plywood, chip boards, insulation sheeting and other synthetic boards.
Specifications
- Pushes chips down while cutting to eliminate chip build-up and clogging
- Eliminates chipping and upward tearing of material
- Eliminates vibration and extends bit life
Sold each
| Product # | A. Cut Diameter | B. Flute Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 85183 | 1/4" ★ In stock | 5/8" | 1/4" | 2-3/4" | |
| 85184 | 3/8" ★ In stock | 3/4" | 3/8" | 3-1/8" | |
| 85185 | 1/2" | 2-1/8" | 1/2" | 4-1/2" | |
| 85187 | 1/2" | 1-1/4" | 1/2" | 3-13/16" |

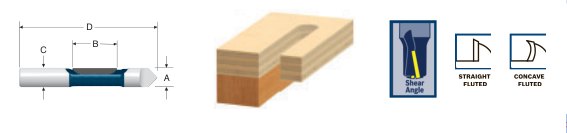

Single-Flute Pilot Panel Bits with Drill-Through Point
Catalog p.226For window and door cutouts in abrasive insulation materials, plywood and paneling.
Specifications
- Drill-through pilot for guiding on template or framing after panel has been mounted
- The concave grind offers a faster cut over the straight grind pilot panel bits
- Shear angle provides improved cut quality, speed and extended life
Sold each
| Product # | A. Cut Diameter | B. Flute Length | C. Shank Diameter | D. Overall Length | Qty. | |
|---|---|---|---|---|---|---|
| SE1700 | 1/4" ★ In stock | 3/4" | 1/4" | 2-9/16" | 1 | |
| 85245 | 3/8" ★ In stock | 1" | 3/8" | 3" | 1 | |
| 85245B50 | 3/8" | 1" | 3/8" | 3" | 50 | |
| 85246 | 1/2" | 1-3/16" | 1/2" | 3-1/2" | 1 | |
| 85246B50 | 1/2" | 1-3/16" | 1/2" | 3-1/2" | 50 | |
| 85407M | 1/2" | 2" | 1/2" | 4-3/4" | 1 |
| Product # | A. Cut Diameter | B. Flute Length | C. Shank Diameter | D. Overall Length | Qty. | |
|---|---|---|---|---|---|---|
| 85244MC | 1/4" ★ In stock | 3/4" | 1/4" | 2-1/2" | 1 | |
| 85245MB50 | 3/8" | 1" | 3/8" | 3-5/32" | 50 | |
| 85246MB50 | 1/2" | 1-3/16" | 1/2" | 3-1/2" | 50 |
| Product # | A. Cut Diameter | B. Flute Length | C. Shank Diameter | D. Overall Length | Qty. | |
|---|---|---|---|---|---|---|
| 85146 | 1/4" | 3/4" | 1/4" | 2-5/8" | 1 | |
| 85146B50 | 1/4" | 3/4" | 1/4" | 2-5/8" | 50 | |
| 85147 | 3/8" | 7/8" | 3/8" | 3" | 1 | |
| 85147B50 | 3/8" | 7/8" | 3/8" | 3" | 50 | |
| 85188 | 1/2" | 1-1/8" | 1/2" | 3-5/8" | 1 | |
| 85188B50 | 1/2" | 1-1/8" | 1/2" | 3-5/8" | 50 |
Surface Forming Router Bits

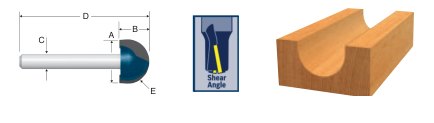

Carbide-Tipped Core Box Bits
Catalog p.226Micrograin bits for cutting rounded grooves used in a variety of applications, including doors and columns.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Radius | |
|---|---|---|---|---|---|---|
| 85444M | 1/4" ★ In stock | 1/4" | 1/4" | 1-5/8" | 1/8" | |
| 85445M | 3/8" ★ In stock | 1/4" | 1/4" | 1-1/2" | 3/16" | |
| 85446M | 1/2" ★ In stock | 3/8" | 1/4" | 1-1/2" | 1/4" | |
| 85448M | 3/4" ★ In stock | 7/16" | 1/4" | 1-9/16" | 3/8" |

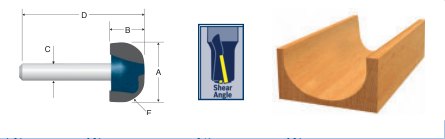

Carbide-Tipped Dish Carving Bit
Catalog p.226Micrograin bits for removing large amounts of wood in making trays, coasters, raised-letter signs, etc.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Radius | |
|---|---|---|---|---|---|---|
| SE2964 | 1-1/8" | 1/2" | 1/2" | 2-7/8" | 3/8" |

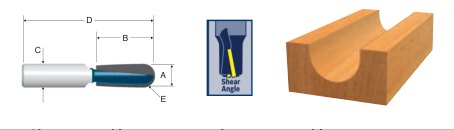

Carbide-Tipped Extended Round Nose Bits
Catalog p.227Deep-cut, round nose bits for cutting rounded grooves used in a variety of applications, including doors and columns.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Radius | |
|---|---|---|---|---|---|---|
| 85449M | 1/2" | 1-1/4" | 1/2" | 2-7/8" | 1/4" | |
| 85451M | 1" * | 1-1/4" | 1/2" | 2-3/4" | 1/2" |
- *Control-cut bit

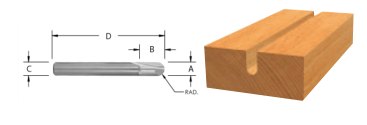

Solid Carbide 2 Flute Veining Bit
Catalog p.227Provincial design veining bits are intended for recessed design veining in fine cabinet surfaces and used extensively for door-front grooving.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | Radius | |
|---|---|---|---|---|---|---|
| SCRV275 | 1/8" | 5/16" | 1/4" | 2" | 1/16" | |
| SCRV277 | 3/16" | 3/8" | 1/4" | 2" | 3/32" | |
| SCRV279 | 1/4" | 3/8" | 1/4" | 2" | 1/8" |

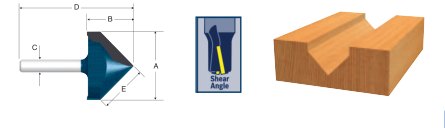

Carbide-Tipped V-Groove Bits
Catalog p.227Micrograin bits ideal for door-front grooving, lettering and sign work. Shear angle provides improved cut quality, speed and extended life.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Bevel | |
|---|---|---|---|---|---|---|
| 84300M | 3/8" | 7/16" | 1/4" | 1-5/8" | 1/4" (90°) | |
| 84303M | 5/8" | 1/2" | 1/2" | 2" | 5/16" (90°) | |
| 84306M | 3/4" | 5/8" | 1/2" | 2-1/8" | 3/8" (90°) | |
| 85219M | 9/16" ★ In stock | 5/8" | 1/4" | 1-3/4" | 3/8" (90°) | |
| 84309M | 1" | 5/8" | 1/2" | 2-1/4" | 1/2" (90°) | |
| 85220M | 1-1/4" | 1" | 1/4" | 2-3/16" | 7/8" (90°) |

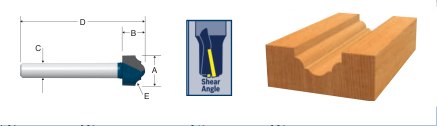

Carbide-Tipped Classical Groove Bit
Catalog p.227Micrograin bits are used for beautiful, decorative grooving, which adds a quality accent to any project. Also recommended for edge forming with a router guide.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Radius | |
|---|---|---|---|---|---|---|
| 85468M | 3/4" ★ In stock | 1/2" | 1/4" | 2-1/16" | 9/64" |
Cabinetry/Joinery Router Bits

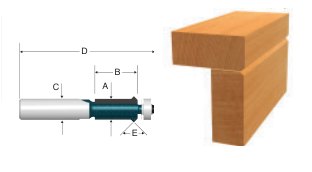

Carbide-Tipped Flush-Trim V-Groove Bit
Catalog p.227Micrograin bits used to flush-face frame to cabinet side while at the same time cutting a V-groove down cabinet joint. Also used for creating a decorative V-groove cut.
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Angle | Bearing Dia. | |
|---|---|---|---|---|---|---|---|
| 85647M | 5/8" ★ In stock | 1" | 1/2" | 3" | 90° | 1/2" | |
| SE2425 | 5/8" ★ In stock | 1" | 1/4" | 2 3/4" | 90° | 1/2" |
- Available while supplies last.

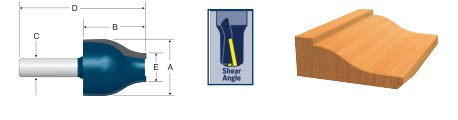

Carbide-Tipped Ogee Vertical Raised Panel Bit
Catalog p.227Micrograin bit used to create beautiful shadow lines for cabinet doors.
Specifications
- Recommended for use with a router table. Minimum recommended panel thickness is 3/4"
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Small Diameter | |
|---|---|---|---|---|---|---|
| 85712M | 1-3/16" | 1-5/8" | 1/2" | 3-1/8" | 7/16" |

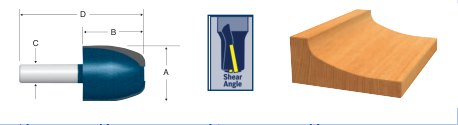

Carbide-Tipped Cove Vertical Panel-Raiser Bit
Catalog p.227Micrograin bit with a long, sloping radius (1/4"-2-1/2") for creating beautiful panels.
Specifications
- Recommended for use with a router table
- Minimum recommended panel thickness is 3/4"
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 85708M | 1-1/8" | 1-5/8" | 1/2" | 3-1/8" |

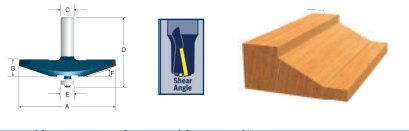

Carbide-Tipped Traditional Raised Panel Bits
Catalog p.227Micrograin control-cut bit used to create clean, simple lines to accentuate a surface.
Specifications
- Recommended for use with a router table
- Minimum recommended panel thickness is 3/4"
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | F. Angle | Cutting Width | |
|---|---|---|---|---|---|---|---|---|
| 85583M | 1-5/8" ★ In stock | 1/2" | 1/2" | 2-3/8" | 1/2" | 25° | 9/16" | |
| 85637M | 2-3/4" | 5/8" | 1/2" | 2-17/32" | 1/2" | 26° | 1-1/8" | |
| 85639M | 3-3/8" ★ In stock | 1/2" | 1/2" | 2-13/16" | 1/2" | 15° | 1-7/16" |

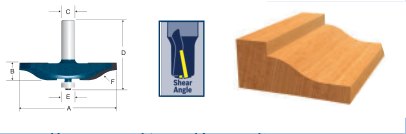

Carbide-Tipped Ogee Raised Panel Bits
Catalog p.227Micrograin bits produce raised-panel cuts along straight- and curved-panel edges.
Specifications
- These bits are not for use in hand-held routers. Use with a router table only
- Minimum recommended panel thickness is 3/4"
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | F. Angle | Cutting Width | |
|---|---|---|---|---|---|---|---|---|
| 85638M | 2-5/8" | 5/8" | 1/2" | 2-1/2" | 1/2" | 3/4" | 1-1/16" | |
| 85640M | 3-3/8" ★ In stock | 9/16" | 1/2" | 2-29/32" | 1/2" | 7/8" | 1-7/16" |

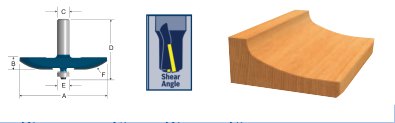

Carbide-Tipped Cove Raised Panel Bit
Catalog p.228Micrograin control-cut bit used to create clean, simple lines to accentuate a surface.
Specifications
- Recommended for use with a router table
- Minimum recommended panel thickness is 3/4"
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | F. Angle | Cutting Width | |
|---|---|---|---|---|---|---|---|---|
| 85641M | 3-3/8" | 1/2" | 1/2" | 2-7/8" | 1/2" | 1-9/16" | 1-7/16" |

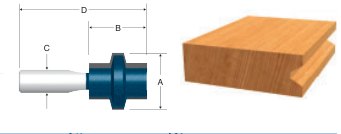

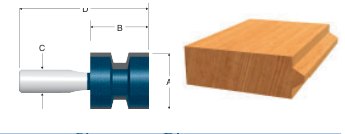

Carbide-Tipped Wedge Tongue Bit
Catalog p.228Micrograin control-cut bit for making tongue-style wedge cuts.
Specifications
- Recommended for use with a router table
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 84509M | 1-1/4" | 1-1/4" | 1/2" | 2-3/4" |
Carbide-Tipped Wedge Groove Bit
Catalog p.228Micrograin control-cut bit for making groove-style wedge cuts.
Specifications
- Recommended for use with a router table
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 84510M | 1-1/4" | 1-1/4" | 1/2" | 2-3/4" |

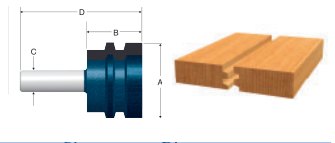

Carbide-Tipped Reversible Glue-Joint Bit
Catalog p.228Micrograin control-cut bit used for making glue-ups and strong joints in door panels, tabletops and more.
Specifications
- Recommended for use with a router table
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 84505M | 1-7/8" | 1-3/32" | 1/2" | 2-5/8" |

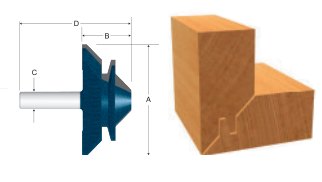

Carbide-Tipped Lock Miter Bit
Catalog p.228Micrograin control-cut bit for making right-angle joints and glue joints.
Specifications
- Recommended for use with a router table
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 84508M | 2-11/16" | 1-3/16" | 1/2" | 2-5/8" |
Carbide-Tipped Drawer Lock Joint Bit
Catalog p.228Micrograin control-cut bit for constructing durable drawer joints.
Specifications
- Recommended for use with a router table
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| 84512M | 1" | 1/2" | 1/2" | 1-5/16" |

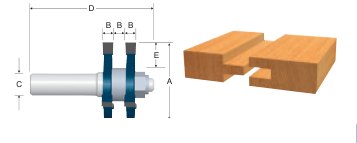

Carbide-Tipped Tongue and Groove Bits
Catalog p.228Micrograin bits designed to cut tongue and grooves on 1/2" through 3/4" thick material. To cut the tongue, use the complete assembly to cut the groove by removing one slotting cutter.
Specifications
- Recommended for use with a router table
- For 1/4" replacement arbor assembly use 84626
- 84623M replacement cutter is 85610M; arbor is 84626
- 84624M replacement cutter is 85610M
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Cutting Width | |
|---|---|---|---|---|---|---|
| 84623M | 1-7/8" | 1/4" | 1/4" | 2-27/32" | 1/2" | |
| 84624M | 1-7/8" | 1/4" | 1/2" | 3" | 1/2" |
Carbide-Tipped Dovetail Bits
Catalog p.228Micrograin bits for making dovetail joints.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | Degree | |
|---|---|---|---|---|---|---|
| 84709M | 1/2" ★ In stock | 1/2" | 1/2" | 2-5/16" | 14° | |
| 85240M | 17/32" ★ In stock | 1/2" | 1/4" | 1-7/8" | 15° |

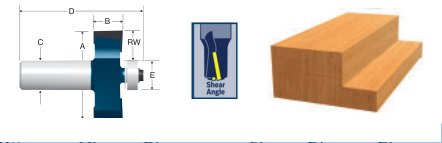

Carbide-Tipped Rabbeting Bits
Catalog p.228Micrograin control-cut bits for making rabbeting cuts without the use of a router guide.
Specifications
- To increase the width of rabbet by 1/16" for 85218M and 85590M, purchase 3/8" diameter bearing 3600900501 and dust shield 3600120507
Sold each
| Product # | RW Rabbet Width | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Bearing Dia. | |
|---|---|---|---|---|---|---|---|
| 85218M | 3/8" ★ In stock | 1-1/4" | 1/2" | 1/4" | 2" | 1/2" | |
| 85590M | 3/8" ★ In stock | 1-1/4" | 1/2" | 1/2" | 2-3/8" | 1/2" | |
| 85614M | 1/2" ★ In stock | 1-3/8" | 1/2" | 1/4" | 2" | 3/8" | |
| 85615M | 1/2" ★ In stock | 1-3/8" | 1/2" | 1/2" | 2-3/8" | 3/8" |

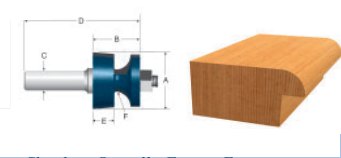

Carbide-Tipped Doorlip Bit
Catalog p.228Micrograin bit achieves a popular shaper-quality, door-lip cut with a router.
Specifications
- Recommended for use with a router table
Sold each
| Product # | A. Overall Dia. | B. Cutting Edge Length | C. Shank Dia. | D. Overall Length | E. Angle | F. Radius | |
|---|---|---|---|---|---|---|---|
| 85603M | 1-9/16" ★ In stock | 1" | 1/2" | 3" | 5.5° | 3/8" |

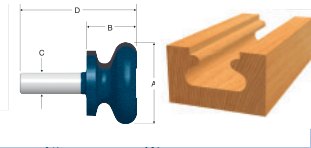

Carbide-Tipped Finger Pull Bit
Catalog p.228Micrograin control-cut bit creates easy-open door or drawer edges that eliminate metal pulls and enhance the hardwood effect.
Specifications
- Recommended for use with a router table
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | |
|---|---|---|---|---|---|
| SE6026 | 1-1/2" | 7/8" | 1/2" | 2-5/16" | |
| SE6024 | 3/4" | 7/8" | 1/2" | 2-5/16" |

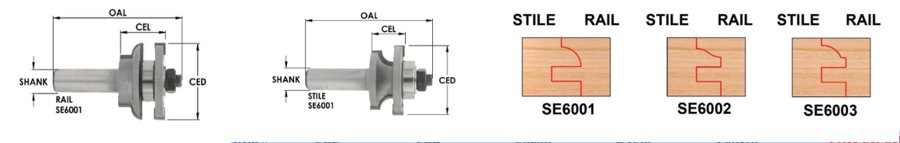

Carbide-Tipped Beading Stile and Rail Bit Sets
Catalog p.229Sold per set
| Product # | CED | CEL | Shank | Depth | Pattern | |
|---|---|---|---|---|---|---|
| SE6001 | 1-5/8" ★ In stock | 1" | 1/2" | 3/8" | Round | |
| SE6002 | 1-5/8" | 1" | 1/2" | 3/8" | Ogee | |
| SE6003 | 1-5/8" | 1" | 1/2" | 3/8" | Bead |
- 2-Piece Set, Bearing SBE125, Shim Kit SESK-012, Groover SE6000G Rail

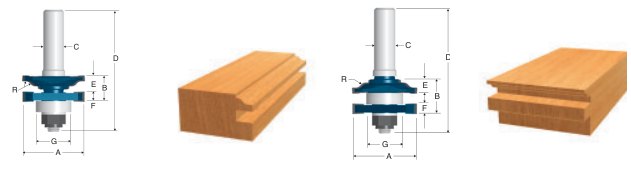

Carbide-Tipped Ogee Stile and Rail Bits
Catalog p.229Micrograin bits with shear-angle geometry, super sharp cutting edges and close-tolerance manufacturing to ensure consistently smooth, tight- fitting joints.
Specifications
- These bits are not for use in hand-held routers. Use with a router table only. Designed for 3/4" wood with a maximum wood thickness of 7/8"
- Both 85626M and 85627M assemblies are reversible. Either can be used to make both stile and rail cuts by order on the arbor. This requires one workpiece to be cut face up and the other workpiece face down
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | D. Overall Length | E. Decorative Cut Depth | F. Kerf | G. Bearing Diameter | R. Radius | |
|---|---|---|---|---|---|---|---|---|---|
| 85626M | 1-5/8" | 41/64" | 1/2" | 3" | 25/64" | 1/4" | 7/8" (22mm) | 3/16" | |
| 85627M | 1-5/8" | 13/16" | 1/2" | 3" | 5/16" | 1/4" | 7/8" (22mm) | 3/16" | |
| 85625M | Ogee stile and rail set includes 85626M and 85627M assemblies ★ In stock |
- Available while supplies last.

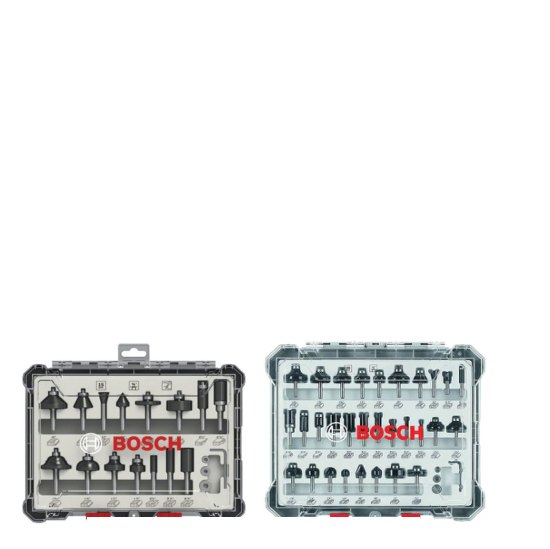

Router Bit Sets
Catalog p.229Sold each
| Product # | # of Pieces | Includes | Case Type | |
|---|---|---|---|---|
| RBS010 | 10 | Straight/mortising bits: (1) 85460M, (1) 85265M, (1) 85249M; surface forming bits: (1) 85444M, (1) 85219M; cabinetry/ joinery bit: (1) 84709M; edge forming bits: (1) 85594M, (1) 85592M, (1) 85597M; trimming/cutout bit: (1) 85441M | Wood base with clear plastic top | |
| RBS003 | 3 | Cabinetry/joinery bits: (1) 85626M, (1) 85627M, (1) 85640M | Wood base with clear plastic top | |
| RBS006 | 6 | Trimming/cutout bit: (1) 85268M; straight/mortising bits: (1) 85613M, (1) 85227M; edge forming bits: (1) 85294M, (1) 85298M; cabinetry/joinery bit: (1) 84703M | Wood base with clear plastic top | |
| RBS004 | 4 | Edge forming bits: (1) 85294M, (1) 85298M; trimming/cutout bit: (1) 85268M; straight/mortising bit: (1) 85613M plus bonus 3/8" bearing (when used on 85294M will make a beading bit) | Wood base with clear plastic top |
Slotting/Arbor Cutters

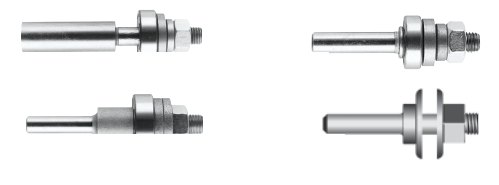

Arbors for Slotting Cutters
Catalog p.229For use with two-wing and three-wing slotting cutters.
Sold each
| Product # | Arbor Dia. | Bearing Dia. | Length | Shank Dia. | For Use With | Used on Part No. | |
|---|---|---|---|---|---|---|---|
| 82811 | 5/16" | 7/8" | 3" | 1/2" | Three-wing slotting cutters | All | |
| SAR250 | 5/16" | - | 2" | 1/4" | Three-wing slotting cutters | All | |
| 82808 | 1/4" ★ In stock | 5/8" | 1-29/32" | 1/4" | Two-wing slotting cutters | 85505M, 85506M, 85507M, 85508M | |
| 82810 | 5/16" ★ In stock | 7/8" | 2-5/8" | 1/4" | Two-wing slotting cutters | 85517M, 85520M, 92837 |

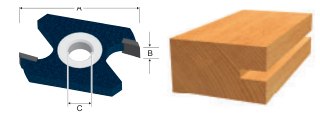

Carbide-Tipped Two-Wing Slotting Cutter
Catalog p.229Micrograin control-cut bits used for making slots for T-molding and weatherstripping.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | Depth of Cut | |
|---|---|---|---|---|---|
| 85505M | 1-3/16" | 1/4" | 1/4" | 9/32" |

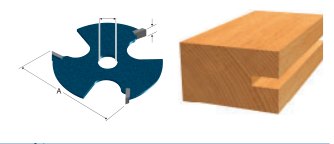

Carbide-Tipped Three-Wing Slotting Cutters
Catalog p.229Micrograin bits used for making slots for T-molding and weatherstripping.
Sold each
| Product # | A. Overall Diameter | B. Cutting Edge Length | C. Shank Diameter | Depth of Cut | |
|---|---|---|---|---|---|
| 85526M | 1-7/8" | 1/16" | 5/16" (bore) | 1/2" | |
| 85527M | 1-7/8" ★ In stock | 5/64" | 5/16" (bore) | 1/2" | |
| 85528M | 1-7/8" ★ In stock | 3/32" | 5/16" (bore) | 1/2" | |
| 85529M | 1-7/8" ★ In stock | 1/8" | 5/16" (bore) | 1/2" | |
| 85530M | 1-7/8" * | 5/32" | 5/16" (bore) | 1/2" | |
| 85609M | 1-7/8" | 3/16" | 5/16" (bore) | 1/2" | |
| 85610M | 1-7/8" ★ In stock | 1/4" | 5/16" (bore) | 1/2" |
- *85530M is used for biscuit joint cutting
Router Bit Components
Non-Marring Bearings
Catalog p.230Non-marring, high-precision bearings are specially engineered and fitted with sleeves to prevent scratching on all surfaces. Use with piloted router bits including laminate trim and edge-forming bits.
Sold each
| Product # | Inside Diameter | Outside Diameter | |
|---|---|---|---|
| NMB004 | 3/16" | 1/2" | |
| NMB005 | 1/4" | 5/8" | |
| NMB006 | 1/4" | 3/4" |
Non-Marring Bearing Set
Catalog p.230Sold each
| Product # | # of Pieces | Includes | |
|---|---|---|---|
| NMB300 | 3 | (1) NMB004, (1) NMB005, (1) NMB006 |
Bearing Enlargers
Catalog p.230Use Bosch bearing enlargers for changing profiles, widths and rabbeting depths of ball bearing-piloted router bits with 3/16" O.D. pilots.
Sold each
| Product # | Inside Diameter | Outside Diameter | |
|---|---|---|---|
| BE006 | 3/16" ★ In stock | 3/4" | |
| BE007 | 3/16" ★ In stock | 7/8" | |
| SBE147 | 3/16" ★ In stock | 1" | |
| BE009 | 3/16" ★ In stock | 1-1/8" |
Bearing Enlarger Set
Catalog p.230Sold each
| Product # | # of Pieces | Includes | |
|---|---|---|---|
| BE400 | 4 | (1) BE006, (1) BE007, (1) BE008, (1) BE009 |
Router Bit Component Parts
Catalog p.230| Product # | Bearing | Dust Shield | Lock Screw | Lock Washer | Washer | Nut | |
|---|---|---|---|---|---|---|---|
| 85205M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85579M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85604M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85206M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85580M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85605M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85207M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85581M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85606M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85218M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85582M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85607M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85270M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85583M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85614M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85271M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85584M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85615M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85289M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85586M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85616M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85290M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85587M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85631M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85293M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85588M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85632M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85294M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85590M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85637M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85295M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85591M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85638M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85296M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85592M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85639M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85297M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85594M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85640M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85298M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85595M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85649M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85434M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85596M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85666M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85441M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85597M | SBE115 (3/16" ID, 1/2" OD) Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85217M | 3 603 415 551 | 3 600 100 517 | NA | ||||
| 85210M | Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85668M | Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85212M | Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85669M | Oversize Bearing SBE135 (3/16" ID, 5/8" OD) | SDS115 | SE540-38 | NA | NA | NA | |
| 85601M | SBE115 (3/16" ID, 1/2" OD) Non-marring Bearing - NMB004 (3/16" ID, 1/2" OD) | SDS115 | NA | NA | Spacer 3 600 400 504 | 3 603 301 518 | |
| 85602M | SBE115 (3/16" ID, 1/2" OD) Non-marring Bearing - NMB004 (3/16" ID, 1/2" OD) | SDS115 | NA | NA | Spacer 3 600 400 504 | 3 603 301 518 | |
| 85216M | NA | NA | |||||
| 85622M | NA | NA | |||||
| 85627M | NA | NA | |||||
| 85621M | NA | NA | |||||
| 85626M | NA | NA | |||||
| 85266M | 3 600 900 507 (1/8" ID, 3/8" OD) | 3 600 120 509 | NA | NA | NA | 3 603 301 503 | |
| 85268M | 3 600 900 507 (1/8" ID, 3/8" OD) | 3 600 120 509 | NA | NA | NA | 3 603 301 503 | |
| 85267M | 3 600 900 507 (1/8" ID, 3/8" OD) | 3 600 120 509 | NA | NA | NA | 3 603 301 503 | |
| 85269M | 3 600 900 507 (1/8" ID, 3/8" OD) | 3 600 120 509 | NA | NA | NA | 3 603 301 503 | |
| 85420M | 3 600 900 506 (1/4" ID, 5/8" OD) Non-marring Bearing - NMB005 (1/4" ID, 5/8" OD) | NA | NA | ||||
| 85422M | 3 600 900 506 (1/4" ID, 5/8" OD) Non-marring Bearing - NMB005 (1/4" ID, 5/8" OD) | NA | NA | ||||
| 85421M | 3 600 900 506 (1/4" ID, 5/8" OD) Non-marring Bearing - NMB005 (1/4" ID, 5/8" OD) | NA | NA | ||||
| 85423M | 3 600 900 506 (1/4" ID, 5/8" OD) Non-marring Bearing - NMB005 (1/4" ID, 5/8" OD) | NA | NA | ||||
| 85430M | 3 600 900 506 (1/4" ID, 5/8" OD) Non-marring Bearing - NMB005 (1/4" ID, 5/8" OD | NA | NA | NA | 3 603 301 502 | ||
| 85431M | 3 600 900 506 (1/4" ID, 5/8" OD) Non-marring Bearing - NMB005 (1/4" ID, 5/8" OD | NA | NA | NA | 3 603 301 502 | ||
| 85493M | SBE110 (3/16" ID, 3/8" OD) | SE540-38 | NA | NA | NA | ||
| 85496M | SBE110 (3/16" ID, 3/8" OD) | SE540-38 | NA | NA | NA | ||
| 85600M | SBE110 (3/16" ID, 3/8" OD) | SE540-38 | NA | NA | NA | ||
| 85494M | SBE110 (3/16" ID, 3/8" OD) | SE540-38 | NA | NA | NA | ||
| 85497M | SBE110 (3/16" ID, 3/8" OD) | SE540-38 | NA | NA | NA | ||
| 85495M | SBE110 (3/16" ID, 3/8" OD) | SE540-38 | NA | NA | NA | ||
| 85599M | SBE110 (3/16" ID, 3/8" OD) | SE540-38 | NA | NA | NA | ||
| 85612M | 3 600 905 502 (5 mm ID, 19 mm OD) | SE540-38 | NA | NA | NA | ||
| 85682M | SBE120 (1/4" ID, 3/4" OD) Non-marring Bearing - NMB006 (1/4" ID, 3/4" OD | 3 603 415 551 | 3 600 100 517 | NA | NA | ||
| 85681M | 3 600 900 506 (1/4" ID, 5/8" OD) Non-marring Bearing - NMB005 (1/4" ID, 5/8" OD | 3 603 415 551 | 3 600 100 517 | NA | NA | ||
| 85680M | SBE145 (1/4" ID, 1/2" OD) | 3 603 415 551 | 3 600 100 517 | NA | NA | ||
| 85659M | 3 600 200 514 (1/4" ID, 3/4" OD) Non-marring Bearing - NMB006 (1/4" ID, 3/4" OD | 3 603 415 551 | 3 600 100 517 | NA | NA | ||
| 85267M | SBE115 Bearing | NA | NA | NA | NA | NA |
Router Bit Component Parts
Router Bit Component Parts
Catalog p.230Sold each
| Product # | Description | |
|---|---|---|
| 3600905502 | Ball Bearing | |
| SBE135 | Ball Bearing 3/16 ID x 5/8 OD ★ In stock | |
| SBE120 | Ball Bearing 1/4 ID x 3/4 OD ★ In stock | |
| SBE145 | Ball Bearing 1/4 ID x 1/2 OD ★ In stock | |
| 3603301503 | Nut for Laminate Bit ★ In stock | |
| 3603301509 | Nut for Laminate Bit | |
| 3603301518 | Nut -Template/Trimming Bit | |
| 3603415551 | Head Screw for Router Bits | |
| SE540-38 | Cap Screw for Router Bit ★ In stock |
| Product # | Description | |
|---|---|---|
| SBE115 | Ball Bearing ★ In stock | |
| 3600100517 | Washer for 85217 | |
| SDS115 | Dust Shield for Router Bit ★ In stock | |
| 3600120509 | Dust Shield for Router Bit ★ In stock | |
| 3600200514 | Nylon Bushed B Bearing ★ In stock | |
| SBE110 | Ball Bearing ★ In stock | |
| 3600900506 | Ball Bearing ★ In stock | |
| 3600900507 | Ball Bearing ★ In stock | |
| 3600900525 | Ball Bearing ★ In stock |
Template Guide Compatibility
Catalog p.231RA-Series Template Guides
Specifications
- 1613, 1613EVS, 1614, 1614EVS -The Bosch RA-Series template guides are attached to these routers by using the router's built-in template guide adapter.
- 1613AEVS, 1617, 1617EVS, 1618, 1618EVS, 1619EVS, MRF23EVS, MRP23EVS, MRC23EVS -The Bosch RA-Series template guides are attached to these routers by using the RA1126 Template Guide Adapter (included in the RA1128 and RA1129 Template Guide Sets).
- PR10E and PR20EVS -The Bosch RA-Series template guides are attached to the these routers by placing the template's flange in recess at top of the PR009 Fixed-Base Sub-base (sold separately) and then mounting it to the router.
- PR011 Plunge Base -The Bosch RA-Series template guides are attached to these routers by using the RA1126 Template Guide Adapter (included in the RA1128 and RA1129 Template Guide Sets).
Threaded Template Guides
Catalog p.231Specifications
- See interfaces for threaded template guides below
Quick-Change Toolless Template Guide Adapter
Catalog p.231Specifications
- Available with RA1128 and RA1129 sets (see below)
Sold each
| Product # | Description | |
|---|---|---|
| RA1126 | For use with 1613EVS, 1617-18 Series, 1619EVS, and MR23EVS-Series routers and PR009 and PR011 router attachments. |
Interfaces for Threaded Template Guides
Catalog p.231Specifications
- These interfaces allow Porter-Cable®, Black and Decker®, and similar threaded template guides that fit into a 1-3/8" counter-bore to be used with Bosch routers.
- See description for compatibility.
- RA1100 Interface available with RA1128 and RA1129 Sets (see below).
Sold each
| Product # | Description | |
|---|---|---|
| RA1100 | Allows Porter-Cable®, Black & Decker® and similar threaded template guides to be used with newer Bosch routers. Requires RA1126 adapter. with 1613EVS, 1617-1618 series, MR23EVS and PR011 Plunge Base. Requires PR009 with PR10E and PR20EVS Palm Routers'PR001 Fixed Base. | |
| RA1110 | For use with older Bosch routers that use the Bosch "standard style" template guide adapter system. |
Template Guide Sizes
Catalog p.231Sold each
| Product # | Primary Application | Template Guide Dimensions A | Template Guide Dimensions B | Template Guide Dimensions C | |
|---|---|---|---|---|---|
| RA1107 | General | 5/16" | 7/16" | 3/8" | |
| RA1109 | General | 7/16" | 1/2" | 13/32" | |
| RA1111 | General | 3/16" | 5/8" | 17/32" | |
| RA1115 | General | 3/16" | 3/4" | 21/32" | |
| RA1117 | General | 31/64" | 13/16" | 5/8" | |
| RA1119 | General | 31/64" | 1" | 25/32" | |
| RA1105 | Large Dovetail | 9/64" | 7/16" | 3/8" | |
| RA1113 | Radius Hinge, 1/4" | 1/2" | 5/8" | 17/32" | |
| RA1121 | Radius Hinge, 5/8" | 7/16" | 1-3/8" | 1-19/64" | |
| RA1103 | Small Dovetail | 9/64" | 5/16" | 17/64" | |
| RA1101 | Router Inlay Kit | 3/16" | 5/16" | 1/4" |
Template Guide Sizes
Catalog p.231A = Approximate distance template guide tip extends from bottom of sub-base. B = Outside diameter template guide tip. C = Inside diameter template guide tip. Note: Cut diameter of router bit should be at least 1/16" less than dimension "C" on template guide.
Specifications
- Available individually. See below for RA1128 template guide set.
Template Guide Sets
Catalog p.231Sold each
| Product # | # of Pieces | Includes | |
|---|---|---|---|
| RA1128 | 9 | (1) RA1126 template guide adapter, (1) RA1103, (1) RA1105, (1) RA1109, (1) RA1113, (1) RA1115, (1) RA1121, (1) RA1100 interface and case | |
| RA1129 | 2 | (1) RA1126 template guide adapter, (1) RA1100 interface |
Inlay Kit
Catalog p.231Sold each
| Product # | # of Pieces | Includes | |
|---|---|---|---|
| RA1127 | 2 | (1) RA1101 template guide with offset ring, (1) 85213M router bit plus instructions |
Pilot Panel and Flush Trim Bits
Pilot Panel Bit
Catalog p.231Designed to use for cut-outs on doors, windows, etc. Double fluted and carbide-tipped for smooth cut edge. Bit has a 3/8" cutting diameter x 1" cutting length with a 3/8" shank. 3" overall length.
Sold each
| Product # | Description | |
|---|---|---|
| SE-1705 | 3/8" Double Flute Pilot Panel Bit |
Flush Trim Bits
Catalog p.231An excellent bit for flush trim applications. Solid Carbide and Spiral cut for a very smooth edge on any material. Bits have a 1/4" cutting diameter x 1" cutting length and a 1/4" shank. 3" overall length.
Sold each
| Product # | Description | |
|---|---|---|
| SE-SFTU120 | 1/4" Spiral Upcut Flush Trim Bit |
Router Bits and Accessories
Catalog p.232Skil router bits and accessories are manufactured and designed to the highest quality standards. Router bits are offered individually, in popular cutting profile mixes or in general assortments that meet the needs of a variety of experience levels. Router bit sets offer carbide bits with a variety of popular cutting profiles. 3 piece sets come packaged in new Skil display cases. Larger assortments come packaged in solid wood felt lined cases with tilting storage compartments that protect and organize.
Carbide-Tipped Straight/Mortising Bits
Catalog p.232Sold each
| Product # | Cutting Dia. | Overall Length | Cutting Length | Shank Dia. | Suggest | |
|---|---|---|---|---|---|---|
| 91104 | 3/4" ★ In stock | 2" | 25/32" | 1/4" |
Carbide-Tipped Cove Bit
Catalog p.232Sold each
| Product # | Cutting Dia. | Overall Length | Cutting Length | Shank Dia. | Radius | |
|---|---|---|---|---|---|---|
| 91501 | 1/4" ★ In stock | 2-3/32" | 3/8" | 1/4" | 1/4" |
Carbide-Tipped Round/Roman Ogee Bits
Catalog p.232Sold each
| Product # | Cutting Dia. | Overall Length | Cutting Length | Shank Dia. | Radius | |
|---|---|---|---|---|---|---|
| 91508 | 5/32" ★ In stock | 2-1/8" | 3/8" | 1/4" | 5/32" | |
| 91502 | 1/4" ★ In stock | 2-3/8" | 3/8" | 1/4" | 1/4" |
15 pc. Carbide-Tipped Router Bit Set
Catalog p.232| Product # | Description | |
|---|---|---|
| RBS015MBS |
30 pc. Carbide-Tipped Router Bit Set
Catalog p.232For discontinued Skil bit replacements, cross reference to
| Product # | Description | |
|---|---|---|
| RBS030MBS |
Router Bit Sets
Catalog p.232Sold each
3 pc. Carbide-Tipped Straight Bit Set
| Product # | Description | |
|---|---|---|
| 91001 | (1) 1/4", (1) 1/2", (1) 3/4" |
3 pc. Carbide-Tipped Edge Bit Set
| Product # | Description | |
|---|---|---|
| 91002 | (1) 1/4", (1) 3/8", (1) 1/2" | |
| 91003 | (1) 1/4" roundover bit, (1) 1/4" cove bit, and (1) 5/32" roman ogee bit with bonus hex key, (1) 1/2" replacement bearing |
| Product # | Description | |
|---|---|---|
| 91006 | (3) straight bits, (1) roundover bit, (1) roman ogee bit and (1) corebox bit with bonus hex key, (1) replacement bearing |
| Product # | Description | |
|---|---|---|
| 91012 | (3) straight bits, (1) v-groove bit, (1) corebox bit, (1) dovetail bit, (1) laminate trim bit, (2) roundover bits, (1) cove bit, (1) roman ogee bit and (1) chamfer bit with bonus hex key, (1) replacement bearing |
| Product # | Description | |
|---|---|---|
| 91015 | (3) straight bits, (1) v-groove bit, (1) corebox bit, (2) dovetail bits, (2) roundover bits, (1) beading bit, (2) cove bits, (2) roman ogee bits and (1) chamfer bit with bonus hex key, (1) replacement bearing | |
| 91030 | (4) straight bits, (2) dovetail bits, (1) ogee bit, (1) hinge mortising bit, (1) keyhole bit, (1) ogee bit with fillet, (1) panel pilot bit, (1) laminate trim bit, (1) cove and bead bit, (1) V-groove Bit, (4) roundover bits, (1) chamfer bit, (2) corebox bits, (3) cove bits, (1) rabbeting bit, (1) classical bit, (2) roman ogee bits, (1) half round bit, (1) ovolo bit, (1) replacement bearing and hex key | |
| 91001 | 91002 91003 | |
| 91006 | 91012 91015 91030 |
Precision Saw Blades
Gold Medal Series
Catalog p.233For the finest saw blades in the world, look no further than TENRYU. TENRYU is known around the globe as the premier manufacturer of quality saw blades. Designed for the ultimate performance, TENRYU blades provide the finest cuts. All TENRYU blades are manufactured, using only the very best steel, hardened to withstand heavy loads, and hand hammered for precise leveling and tensioning. Each tooth is perfectly honed, with proprietary cooling methods assisting with creating mirror-like finishes on the carbide teeth. TENRYU guarantees all products against defects in material and workmanship and will repair or replace any product that is inspected and proven to be defective. Please contact us for items not listed or for a full line TENRYU catalog. A top of the line choice for the serious craftsman who wants one superior table saw blade for most all wood working. Fully-hardened, expertly-tensioned steel body for the true accurate cuts. Extra hard carbide resists both abrasive and chemical wear better than standard grades for longer life. Features resin bond-filled expansion slots to absorb any vibration and reduce cutting noise. This could be the best 'all around'blade you have ever used.
Sold per blade
| Product # | Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| GM-25540 | Blade | ||||||
| GM-25540-2 | |||||||
| TU-GM-25540 | 10" | 40 | 5/8" | ATB | 20 | ||
| TU-GM-25540-2 | 10" ★ In stock | 40 | 5/8" | ATB | 20 |
- *Ideal for use on SawStop or other riving knife equipped table saws.
Silencer Series
Catalog p.233Unique ATAF shear face grind for fast and long lasting cuts. Vibration dampening system featuring patented resin bond-filled laser cut body slots. A blade for smooth cuts, cleaner edges, quieter
Sold per blade
| Product # | Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| SL-25560 | cutting and longer sharp-life. Coated blades feature anti-friction PTFE coating for easier feeding |
| Product # | Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| TU-SL-25540 | 10" | 40 | 5/8" | ATAF | 5 |
| Product # | Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| TU-SL-25560 | 10" | 60 | 5/8" | ATAF | 5 |
| Product # | Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| TU-SL-25580 | 10" | 80 | 5/8" | ATAF | 5 | ||
| SL-305100C | TU-SL-30580 12" | 80 | 1" | ATAF | 5 | ||
| TU-SL-305100C | (coated) 12" 100 1" ATAF | 5 |
- and less binding. The hardened slick surface helps prevent pitch build-up.
Rapid Cut Series
Catalog p.233An industrial duty 'work horse'table saw blade. Features large, high grade carbide tips for long life in woodworking applications. Ample side clearance provides for air flow between carbide and workpiece, limiting the likelihood of burning and preventing premature dulling. A good multi- purpose blade for most woodworking needs.
Sold per blade
| Product # | Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| TU-RS-25524CBN | 24 | 5/8" | ATB | 20 | |||
| RS-25548CBN | |||||||
| TU-RS-25548CBN | 10" | 48 | 5/8" | ATB | 20 |
| Product # | Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| TU-RS-25524-U | 10" | 24 | 5/8" | ATB | 20 |
| Product # | Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| TU-RS-25550-2 | 10" | 50 | 5/8" | ATBR | 15 | ||
| TU-RS-25560 | 10" | 60 | 5/8" | ATAF | 10 |
Miter-Pro Series
Catalog p.233Tenryu's ultimate woodworking blade for miter and slide-miter saws. Designed for high performance, smooth cuts and heavy duty applications on miter and slide-miter saws. Specially designed, top quality, micro-grain carbide tips, honed to a precision edge. Rake angle design prevents lifting of workpiece without making the saw overwork. Features additional resin bond- lled expansion slots for quieter cutting.
Sold per blade
| Product # | Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| TU-MP-25580CB | 10" | 80 | 5/8" | ATAF | 0 | ||
| MP-305100CB | |||||||
| TU-MP-30580CB | 12" | 80 | 1" | ATAF | 0 | ||
| TU-MP-305100CB | 12" | 100 | 1" | ATAF | 0 |
Mel-Pro Series
Catalog p.233The most advanced melamine cutting blade with an expertly tensioned body to absorb impact and remains flat and true. The resin filled expansion slots absorb vibration, reduce heat and permit the blade to run quieter than other brands. Expertly cuts melamine and other laminated wood products plus veneer-faced plywood.
Sold per blade
| Product # | Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| ML-255100AB | |||||||
| ML-255100H | TU-ML-25580AB 10" | 80 | 5/8" | ATAFR | 0 | ||
| TU-ML-255100AB | 10" | 100 | 5/8" | ATAFR | 0 |
Pro Series For Wood
Catalog p.234Laser cut, press tempered, individually hammer tensioned, chrome-plated bodies bring the cutting edge to the workpiece with unparalleled precision. Fine grain carbide tips are given the tooth configuration to do the job right. Pro Series blades are also made to handle non-ferrous metal cutting, plastics, or solid surface materials. These blades are made to satisfy the most demanding craftsmen.
Sold per blade
| Product # | Blade Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| TU-PR-255CBN | |||||||
| TU-PR-25560CBN | 10" | 60 | 5/8" | ATB | 20 |
Industrial Blade Series for Table Saw - Wood
Catalog p.234Each blade features select grade of carbide tip for better performance. Large European style tips. Heavy, European plate style resists deflection during cutting. Resin bond, laser slots to absorb and eliminate vibration to produce a cleaner, quieter, more efficient cut. Excellent blade life.
Sold per blade
| Product # | Blade Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| TU-1W-25524CBD1 | |||||||
| TU-1W-25560D1 | TU-IW-25524CBD1 10" | 24 | 5/8" | ATB | 20 | ||
| TU-IW-25560D1 | 10" | 60 | 5/8" | TCG | 10 |
Gold Medal Dado Set
Catalog p.234This dado set produces super-clean dado edges with a flat bottom surface in wood materials and in melamine. Features fully heated-treated saw plates for superior endurance under heavy loads. Super ne carbide grade for long life and easy resharpening. This is a 6-piece set for 1/4"-13/16"width dadoing.
Sold per blade
| Product # | Blade Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| TU-GMD-20340 | 8" | 40 | 5/8" | ATBR | 0 | ||
| GMD-20340 | *All Tenryu sawblades and dado sets are combinable for |
Pneumatic Tools
Portable Touch-up Sander
Catalog p.234A professional sanding tool that produces a finish approaching hand-sanding. The pneumatic drum provides a cushion of air that will always conform to the contoured shape of your work. The hand-grip has ball bearings that provide for fast and easy handling. These drums feature a 3/8-24 female thread designed to fit most 3/8" drills minus the chuck. Can be used with any air tool or drill running approximately 2600 RPM.
Sold each
| Product # | Blade Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| PD-16H | |||||||
| PD-156 | SR-PD-16H Touch-up Sander with 1" x 6" Drum * | ||||||
| PD-28H | SR-PD-156 Touch-up Sander with | 1 1/2" x 6" Drum * | |||||
| PD-39H | |||||||
| SR-PD-28H | Touch-up Sander with 2" x 8" Drum * | ||||||
| SR-PD-39H | Touch-up Sander with 3" x 9" Drum * |
- Air Tool not included. * Air Tool not included.
Sioux Straight Drill
Catalog p.234Recommended tool for above Touch-up Sander. High torque with three planetary gear reduction system provides quiet, smooth, vibration-free performance.
Sold each
| Product # | Blade Diameter | Teeth | Bore | Grind | Rake | Kerf | |
|---|---|---|---|---|---|---|---|
| ST-5434C | 5434CKL 3/8" Straight Drill, | 2500 rpm, Non-reversible, Keyed Chuck | |||||
| ST-5434CKL | 3/8" Straight Drill, | 2500 rpm, Non-reversible, Keyless Chuck | |||||
| 5434C |
Pneumatic and Solid Rubber Sanding Drums and Accessories
Pneumatic Sanding Drums
Catalog p.235Operator-regulated, inflatable drums, conforms abrasive sleeve to contoured work.
Sold each
| Product # | Diameter | Width | |
|---|---|---|---|
| SR-PSD-39-114 | Sanding Drum | 3" x | |
| SR-PSD-49-114 | Sanding Drum | 4" x | |
| SR-PSD-69-114 | Sanding Drum | 6" x | |
| PSD-39-114 | |||
| SR-PSD-89-114 | Sanding Drum | 8" x | |
| SR-125X100 | Sanding Drum | 1 1/4" to 1" Bushing (Set) | |
| SR-125X075 | Sanding Drum | 1 1/4" to 3/4" Bushing (Set) |
| Product # | Diameter | Width | |
|---|---|---|---|
| SR-100X6RT | 1" | x 6" | |
| SR-100X6CJ | 1" | x 6" | |
| SR-150X6RT | 1 1/2" | x 6" | |
| SR-150X6CJ | 1 1/2" | x 6" | |
| SR-200X8RT | 2" | x 8" | |
| SR-200X8CJ | 2" | x 8" | |
| SR-300X9RT | 3" | x 9" | |
| SR-300X9CJ | 3" | x 9" | |
| SR-400X9RT | 4" | x 9" | |
| SR-400X9CJ | 4" 6" | x 9" x 9" | |
| SR-600X9CJ | 6" | x 9" | |
| SR-800X9RT | 8" | x 9" | |
| SR-800X9CJ | 8" | x 9" |
- PSD-69-114 Replacement Parts for Pneumatic Drums
- All size sleeves available.
Solid Rubber Sanding Drums
Catalog p.235True-running, precision ground, extruded "live" rubber drums. Will not "heat-up" or crack. Leaves a smooth and clean sanded surface. Quick-lock feature allows sleeve to be held in place, or removed by simply turning the cylinder crank.
Sold each
| Product # | Drum Size | Shank Size | |
|---|---|---|---|
| CL-QL848 | 1/2" x 3" | 3/8" | |
| CL-QL1648 | 1" x 3" | 3/8" | |
| CL-QL2448 | 1 1/2" x 3" | 3/8" | |
| CL-QL4848 | 3" x 3" | 3/8" |
Solid Rubber Sanding Drum Kits
Catalog p.235Sold per kit
| Product # | Drum Size | Shank Size | |
|---|---|---|---|
| CL-QLK-3 |
- Kit Includes:
- Drums: 1/2" x 3", 1" x 3", 1 1/2" x 3"
- (all drums have 3/8" quick-lock shank)
- Sleeves: One fine (120 grit) and one coarse (50 grit) for each drum size.
Sanding Sleeves
Catalog p.235Sold each
| Product # | Grit | Size | |
|---|---|---|---|
| CL-848C | 50X (Coarse) 1/2" | x 3" | |
| CL-848M | 80X (Medium) 1/2" | x 3" | |
| CL-848F | 120X (Fine) 1/2" | x 3" | |
| CL-1648C | 50X (Coarse) 1" | x 3" | |
| CL-1648M | 80X (Medium) 1" | x 3" | |
| CL-1648F | 120X (Fine) 1" | x 3" | |
| CL-2448C | 50X (Coarse) 1 1/2" | x 3" | |
| CL-2448M | 80X (Medium) 1 1/2" | x 3" | |
| CL-2448F | 120X (Fine) 1 1/2" | x 3" | |
| CL-4848C | 50X (Coarse) 3" | x 3" | |
| CL-4848M | 80X (Medium) 3" | x 3" |
Saw Blade Accessories
Blade Support Collars
Catalog p.236Provides saw blade stability to help reduce vibration, noise and deflection. One set includes 2 collars.
Sold per set
| Product # | Description | Size | |
|---|---|---|---|
| GS-BSC035 | Blade Support Collars 3 1/2" dia x 5/8" bore |
Table Saw Inserts
Catalog p.236Sturdy, zero clearance table saw inserts are precision machined from melamine-faced high-density phenolic laminate, ideally suited for this application. Maintains exceptional flatness and has top accessible leveling screws for ease of adjustment. Features a pre-cut starter pocket to allow easier blade cut-through, and a finger hole for easy removal.
Sold each
| Product # | Description | |
|---|---|---|
| LC-PM-1 | Insert for Powermatic #66 | |
| LC-PM-6 | Insert for Powermatic #PM2000 (Not PM2000B) with slot for blade guard | |
| LC-PM-7 | Insert for Powermatic #PM2000 (Not PM2000B), Dado insert | |
| LC-JT-2L | Insert for 10" Jet Xacta Cabinet Saw | |
| LC-JT-164 | Insert for 10" Jet and Powermatic Contractors Saw | |
| LC-DL1U | Insert for Delta Cabinet Saw |
GlideCote Table and Tool Surface Lubricant
Catalog p.236Bostik GlideCote™ is the perfect addition to your shop. Maximize your tool's longevity with Bostik GlideCote™ 10.75 oz Aerosol. Designed for woodworkers and professionals, this high-performance spray reduces friction and prevents rust, ensuring smoother cuts and enhanced tool efficiency. Ideal for table saws, planers, and other woodworking tools, GlideCote™ helps minimize wear and tear, resulting in longer-lasting equipment and reduced maintenance costs. The easy-to-use spray formula protects surfaces, reduces drag, and improves overall tool performance. Compared to the more traditional paste wax used for this purpose GlideCote is 30% slicker and easier to apply. Contains no petroleum oil or silicone and will not stain wood or interfere with finishes and glues.
Sold each
| Product # | Description | Case Qty. | |
|---|---|---|---|
| BS-GLIDECOTE | 10.75 oz Table and Tool Surface Lubricant | 12 |
Lami-Lube III Dry Coating Lubricant
Catalog p.236Reduces friction, inhibits resin build-up and prolongs tool life. Contains no silicone and will not affect wood finishes. Ideal product to use on table tops, workbenches or saw tops to create slick working surface.
Sold each
Fluting Cutters for Table Saws
Fluting Cutters for Table Saws
Catalog p.236Fluting cutters for table saws are four wing cutters with 5/8" bore and 6 1/2" diameters. Can be used for continuous wood pull by tilting the saw arbor. (Shown in actual size.)
Sold per cutter
| Product # | Description | |
|---|---|---|
| LR-35-C | * 3/8" radius fluting cutter ★ In stock | |
| LR-36-C | * 5/16" radius fluting cutter R = Radius ★ In stock | |
| LR-37-C | * 1/4" radius fluting cutter ★ In stock | |
| LR-37-C-3/8 | * 3/16" radius fluting cutter ★ In stock | |
| LR-38-C | * 1/8" radius fluting cutter ★ In stock |
- (1/2 of diameter)
- ie: 1/4" Radius =
- 1/2" flute.
- *Non-Stock. Please allow 1 week delivery.
- 3/8" R 5/16" R 1/4" R 3/16" R 1/8" R
The Magic Saw Molder
The Magic Saw Molder
Catalog p.237Blade replacement turns a table saw into a molder. Co-st Cutters has introduced an anti- kickback molding head for table saws. The Magic Molder is designed to be installed in place of the saw blade on left- or right-tilt table saw with 5/8" arbor, that can accept a dado head set. The Magic Molder does not replace a shaper or a router table, but enhances a table saw. It's main purpose is to covert a table saw into a molder without having to buy a molding machine or a planer/molder. Refer to profile chart when ordering Molder Plugs.
Specifications
- Specifications
- 5/8" Arbor
- Carbide Tipped -7" Diameter
- Safe! Quiet! Anti-kickback! Vibration Free!
- Professional Quality
- Quick and Easy to use
- Variety (80+ Profiles)
- Affordable! Versatile!
Sold per head
Sold per pair
| Product # | Description | |
|---|---|---|
| LR-MM-2 | * Magic Saw Molder Head ★ In stock |
- Refer to Profile Chart on page 222 and indicate pattern number.
Magic Shaper Heads
Magic Shaper Heads
Catalog p.237Use the same Profile Plugs as the Magic Saw Molder on your shaper. The new Magic Shaper Head runs on your shaper utilizing the same system of interchangeable Magic Molder Pr ofile Plugs that you purchase for your Magic Saw Molder.
Specifications
- Specifications
- Steel Heads
- Anti-kickback
- Chip Limiter
- Carbide Tipped
- 1" wide Stackable
- Available with 1 1/4" Bore
- Bushings available to reduce to 3/4" Bore
Sold per head
Sold per pair
| Product # | Description | |
|---|---|---|
| LR-MSH125 | * Magic Shaper Head, 1 1/4" Bore ★ In stock |
- Refer to Profile Chart on page 222 and indicate pattern number.
Custom Molder Plugs
Custom Molder Plugs
Catalog p.237Custom Molder Plugs are available for your Magic Saw Molder or Magic Shaper Head. Submit one to one scale drawing or actual wood sample.
Sold per pair
| Product # | Description | |
|---|---|---|
| LR-PC | 1" Wide Custom Magic Molder Plugs |
Saw and Tool Accessories
Excel Master Drill Press Table
Catalog p.239A drill press table designed to fit the needs of any size shop, especially when doing production operations. Not only does it greatly enlarge the table surface, it also provides a fence and a stop to work against. The Excel Master Table utilizes the Neat-Stop and rail system, which eliminates the need for makeshift blocks and clamps and helps improve quality, safety and productivity. Designed to fit any drill press.
Sold each
| Product # | Description | |
|---|---|---|
| MV-EX-48 | -Approximate table size: 24" x 19" x 1" 1 MV-1050 and 1 MV-1010 | |
| MV-EX48 | Excel Master Table ★ In stock |
- Specifications:
Neat-Stop and Rail System
Catalog p.239An affordable and neat way to do constant length cut-offoperations on all types of saws, router tables, etc. Light in weight, strong in design, and it works. The Neat-Rail is easily fastened by a special nut and stud and features a groove for sawdust and a recessed area for 1/2" wide stick down measuring tape. The #1050 Neat-Stop has a spring actuated flip-stop which is always set unless the operator chooses to depress it with the material he is cutting. The #1010 Neat-Stop is without a flip-stop and can be used as a filler or a back-up block on the Neat-Stop Rail. Both the #1010 and #1050 are held securely in place by a hand knob and can easily be moved. The #1080 comes with the spring actuated flip-stop and adjustable handle, making this ideal for fast, single handed adjustments. The #1090 comes with a spring actuated flip-stop and snap lock lever. Ideal for fast, single-handed adjustments in high
Sold each
| Product # | Description | |
|---|---|---|
| MV-106 | production areas and can be adjusted for a tighter grip on the Neat-Rail. The #1500 features | |
| MV-106-2 | 2 ft extruded Neat Rail with 2 Fasteners | |
| MV-106-4 | 4 ft extruded Neat Rail with 3 Fasteners ★ In stock | |
| MV-106-6 | 6 ft extruded Neat Rail with 4 Fasteners ★ In stock | |
| MV-106-8 | 8 ft extruded Neat Rail with 5 Fasteners ★ In stock | |
| MV-206 | Neat Rail Splicer | |
| MV-1010 |
| Product # | Description | |
|---|---|---|
| MV-1010 | Neat-Stop without flip-stop (Used as a back-up block) | |
| MV-1050 | Neat-Stop with spring actuated flip-stop and knob | |
| MV-1080 | Neat-Stop with spring actuated flip-stop and adjustable lever | |
| MV-1050 | MV-1080 80 MV-1090 Neat-Stop with spring actuated flip-stop and snap lock lever | |
| MV-1500 | Neat-Stop with flip-stop and adjustable lever | |
| MV-TS203 | Heavy Duty Timber Stop fits 2" x 3" Rail ◊ |
- a 3" wide flip down stop and adjustable lever, making this ideal when cutting multiple small
- mouldings, etc. at once. You'll appreciate this system's simplicity and performance.
- Heavy Duty t Ti Timber b Stop available for 1 1/2" x 3" Rail. Please inquire.
Adhesive-Backed Rules
Catalog p.239Sold each
| Product # | Color | Width | Length | Reading | |
|---|---|---|---|---|---|
| MV-1090 | |||||
| MV-1500 | 500 Note: Large selection of Rules available for numerous applications. Available in narrow to | ||||
| OR-1/2FW048L | White | 1/2" | 4' | Left to right | |
| MV-TS203 | OR-1/2FW048R White | 1/2" | 4' | Right to left | |
| OR-1/2FW072L | White | 1/2" | 6' | Left to right | |
| OR-1/2FW072R | White | 1/2" | 6' | Right to left | |
| OR-1/2FW144L | White White White | 1/2" 1/2" 3/4" | 12' 12' 6'(vinyl) | Left to right Right to left Left to right | |
| OR-3/4IFFRW072R | White Yellow Yellow ★ In stock | 3/4" 3/4" 3/4" | 6'(vinyl) 25' 16' | Right to left Left to right Dual | |
| FC-PS-STICK16 | White | 7/8" | 16' | Reversible (for Left or Right) | |
| PS-STICK16 |
- Metal adhesive-backed rules are flat .006" thick tempered steel and made in one continuous
- length. Sticks well to any clean, dry and smooth surface. Can be cut to desired length.
- wide widths and short to long lengths in vertical as well as horizontal readings. Available
- in fractional, metric, half-scale, centering, floor tapes and hand tapes. Dials, protractors,
- calipers, etc. Call for more information.
- *Available in vinyl only. Vinyl rules are tough, strong and accurate, and will not wrinkle or
- stretch when applied in accordance with manufacturer's specifications.
Accu-Fence Systems
Catalog p.240Powermatic's Accu-Fence System offers unmatched accuracy. The positive lock system allows it to be set only once instead of searching for position. Laminated side panels can be adjusted or replaced in minutes. This fence system may be added to virtually any make or model of table saw.
Sold each
| Product # | Description | |
|---|---|---|
| PM-2195080B | Accu-Fence - fence assembly only - no rails - 43 3/16" side panels ★ In stock | |
| PM-2653031B | Accu-Fence - rail assembly only - 50" to R. 12" to L. (for 2195080B fence) ★ In stock | |
| PM-2000B-507 | Replacement side panel for Accu-Fence 2195079B (37 3/8" long) | |
| PM-3000B-507 | Replacement side panel for 2195080B (43 3/16" long) |
| Product # | Description | |
|---|---|---|
| PM-2653031Z | *, ** Accu-Fence - rail ass. only - 50" to R. and 12" to L. (for 2195080 & 2195079Z fence) | |
| PM-XF-20 | ** Replacement knob |
| Product # | Description | |
|---|---|---|
| 2195079B | PM-2195079B Accu-Fence - fence assembly only - no rails - 37 3/8" side panels |
- Accu-Fence Accu-Fence
- 2195080B 2195080B New Style Accu-Fence Assemblies
- 2195079B
T-Square Cut-offSaw Stop
Catalog p.240This stop eliminates the need of cumbersome C-clamps. Designed to glide effortlessly along a 1 1/2" wide fence. With just a twist to the wrist the stop will be securely in place. A popular stop for use on radial or miter table systems of 90 degree straight cuts. Features dual pointer for use on either side of machine.
Sold each
| Product # | Description | |
|---|---|---|
| BS-78-989 | Dual Pointer Cut-offStop | |
| BS-1350189 | Replacement Hairline Pointer Lens | |
| BS-1350188 | Replacement Knob Assembly (still available) |
Cut-offSaw Stop
Catalog p.240Set your saw up for convenient and precision accuracy. Comes with 2 magnifying hairline pointers to use on the right or left side of the saw. Features a quick sliding clamp mechanism for instant positioning. Comes completely assembled and ready to go. Works on fence rails from 1 1/4" to 1 3/4" thick.
Sold per unit
| Product # | Description | |
|---|---|---|
| WI-W1109 | Dual Pointer Cut-offSaw Stop | |
| AD-8125 | Replacement Knob | |
| WI-PX1109002 | Replacement Magnify Lens |
Universal Mobile Bases
Catalog p.240These bases fit a variety of machines and are available for light weight or heavy machines. Quick- snap adjustment - no tools needed. Two fixed and two swivel casters provide easy maneuverability.
Sold each
| Product # | Description | min. | max. | |
|---|---|---|---|---|
| 708118 | ||||
| 708119 | Extension rails extend the length of the base for machines with long and narrow footprints. | |||
| JT-708118 | Universal Mobile Base -600 lb. Cap. | 18"x18" | 24"x24" | |
| JT-708119 | Universal Mobile Base -1200 lb. Cap. 18" Extension Rail 36" Extension Rail | 24"x24" | 34"x34" | |
| JT-708117 | ** 50" Extension Rail |
- **Available while supplies last.
Bandsaw Accessories
Carter Bandsaw Guides
Catalog p.241These all ball-bearing guides are compact and rugged in design. The ball bearings are lubricated and sealed for life. Support roller stud is easily adjustable for various size blades. These units are superior to all other 3-roller guides except the extra heavy duty Carter Guidall 400. Carter guides are guaranteed against defects in material and workmanship. Machine Size: 14" - 30" Blade Size: 1/8" - 3/4" Mounting Hole: 7/16"
Sold each
| Product # | Description | |
|---|---|---|
| CP-500-3U | Upper Guide | |
| CP-500-32L | Lower Guide |
- Off-set mounting studs available for most bandsaws including older models.
Bandsaw Guide Conversion Kits
Catalog p.241Sold per kit
| Product # | Machine | |
|---|---|---|
| CP-DEL14 | Delta 14" | |
| CP-DEL14HEX | Delta 14" Hex | |
| CP-DEL20 | Delta 20" | |
| CP-DEL20OLD | Delta 20" Old | |
| CP-GR16 | Grizzly 16" | |
| CP-GR16NEW | Grizzly 16" New | |
| CP-GR18 | Grizzly 18" | |
| CP-JET14 | Jet 14" | |
| CP-SMC18 | SCM Mini-Max 18" |
- Kits available for most bandsaws. Please inquire.
Bandsaw Tires
Catalog p.241Carter bandsaw tires are made from high quality 100% natural rubber. Outstanding performance and long wearing. The high-strength, specially-formulated, and heat resistant adhesive is easy to apply. Bonded parts have immediate strength. Permanent drying process requires 24 to 48 hours.
Sold per tire
| Product # | Wheel Diameter | Width Before Attachment | |
|---|---|---|---|
| CP-10075 | 10" | 3/4" | |
| CP-12106 | 12" | 1 1/16" | |
| CP-14106 | 14" | 1 1/16" | |
| CP-16131 | 16" | 1 5/16" | |
| CP-18150 | 18" | 1 1/2" | |
| CP-20162 | 20" | 1 5/8" | |
| CP-24175 | 24" | 1 3/4" | |
| CP-26200 | 26" | 2" |
- Bandsaw tires available for up to 42" bandsaws.
Bandsaw Tire Adhesive
Catalog p.241Sold per tube
| Product # | Wheel Diameter | Width Before Attachment | |
|---|---|---|---|
| CP-1300 | Rubber Gasket Adhesive | 5 oz. tube |
Bandsaw Blades
Catalog p.241Quality carbon steel blades for fine woodworking. Smooth cutting. Fit many brands of bandsaws. Bandsaw blades available in various widths, in lengths over 5 feet long and for most applications. Also available in 100'and 250'coil stock.
Sold per blade
| Product # | Size | Teeth per Inch | Fits Tool Model | |
|---|---|---|---|---|
| CP-93525-W | 93 1/2" x 1/4" | 6 | Jet JWBS-14 | |
| CP-93538-W | 93 1/2" x 3/8" | 6 | Jet JWBS-14 | |
| CP-9625-W | 96" x 1/4" | 6 Powermatic #141 | ||
| CP-9638-W | 96" x 3/8" | 6 Powermatic #141 | ||
| CP-9825-W | 98" x 1/4" | 6 Powermatic #043 | ||
| CP-9838-W | 98" x 3/8" | 6 Powermatic #043 | ||
| CP-10225-W | 102" x 1/4" | 6 Powermatic #44 | ||
| CP-13325-W | 133" x 1/4" | 6 | Jet JWBS-18 | |
| CP-13338-W | 133" x 3/8" | 6 | Jet JWBS-18 | |
| CP-13725-W | 137" x 1/4" | 6 | Jet JWBS-18QT | |
| CP-13738-W | 137" x 3/8" | 6 | Jet JWBS-18QT | |
| CP-15025-W | 150" x 1/4" | 6 Jet JWBS-20, NEW JWBS-18 | ||
| CP-15038-W | 150" x 3/8" | 6 Jet JWBS-20, NEW JWBS-18 |
- Above blades are in stock. Blades available for all tool models.
Powermatic and Jet Machines
Powermatic PM2000B 10" Table Saw
Catalog p.242Powermatic and Jet machines are a leader in performance, durability and value, and are of the finest available. From heavy industrial usage to the contractor and home hobbyist, Powermatic and Jet have the tool you need. Precision made castings and absolute accuracy are just an indication of the kind of performance you can expect. Large selection of machinery and accessories available. Ask about machines not listed. Full line catalogs available. This award-winning saw comes totally equipped and backed by a 5-year warranty. This saw sets a new standard for innovation with an array of patented features and massive body design. Heavy cast- iron base with integrated hydraulic caster system. Precision cast-iron tabletop with front edge bevel. Integrated Digital Read-out for precise bevel cuts and a newly designed Arbor lock for quick and easy blade change. Comes standard with the 50" Accu-Fence System, left and right cast-iron extension wings, blade guard and anti-kick pawls. Includes 30 1/2" x 36" extension with legs and motor cover.
| Product # | Description | |
|---|---|---|
| 23150K | ||
| 25350K | ||
| PM-23150K | 3 HP, 1 PH, 230V motor and magnetic controls ★ In stock | |
| PM-25350K | 5 HP, 3 PH, 230/460V (wired 230V) motor and magnetic controls ★ In stock | |
| PM-2000B-126 | PM-2000B-MGA | |
| 2000B-MGA | Replacement Miter Gauge | |
| 2000B-126 | Push Stick |
- PM-
- PM-
Powermatic Sliding Table Attachment
Catalog p.242This steel constructed frame, table mounting brackets and tube legs create a robust platform and supports large materials, making it easy for one-person operation. The extruded aluminum cross-cut fence slides on the table and quickly adjusts to varying angles. Maximum table travel is 62 1/2" and miter angle adjusts from 0° to 50° with 6 hard stops. Features a quick-locking fence lever that easily locks and secures the fence. Will fit the PM2000B 10" table saw.
| Product # | Description | Crosscut Capacity | |
|---|---|---|---|
| PM-1794860K | ** Sliding Table Kit | 39" at front, 41" to 49" at back |
- 1794860K
Powermatic Model 64B 10" Artisan Saw
Catalog p.242A premier table saw for the contractor, the craftsman, or the home hobbyist. The Powermatic Accu-Fence system allows for precise cutting with a capacity of either 30" or 50" to right and 12" to left of blade. Solid cast iron extensions expand the saws work surface. Complete with blade guard and splitter, riving knife, deluxe T-slot miter gauge, blade and dado insert, dust collector shroud, stand and hinged motor cover.
| Product # | Description | |
|---|---|---|
| PM-1791230K | 1 1/2 HP, 1 PH, 115/230V (wired 115V) motor with 50" fence ★ In stock |
Jet 10" PROSHOP II Table Saw with Riving Knife
Catalog p.242A contractor's style table saw featuring a heavy-duty cast iron table with T-style miter slot and steel base. Features a newly designed arbor lock to change blades quickly and easily, a quick release riving knife, improved dust shroud for greater dust collection. Comes standard with ProShop fence system, extension wings, miter gauge, dado insert and low profile riving knife. Units with 52" fence come standard with extension table and legs.
| Product # | Description | |
|---|---|---|
| 725005K | JT-725004K* 1 3/4 HP, 1 PH, 115V motor, with 30" fence | |
| 725001K | JT-725005K* 1 3/4 HP, 1 PH, 115V motor, with 52" fence |
| Product # | Description | |
|---|---|---|
| JT-725000K | 1 3/4 HP, 1 PH, 115V motor, with 30" fence ★ In stock | |
| JT-725001K | 1 3/4 HP, 1 PH, 115V motor, with 52" fence ★ In stock |
- Free freight on Jet, Powermatic
- Order must be prepaid, and shipping to
- a business to qualify for free freight.
- Notice: As equipment ages, there is at times a need to replace parts. If you are in need of parts for your
- Jet or Powermatic equipment, please call JPW Tech Support at 1-800-274-6846 or go online. They can
- assist you with determining which part (s) you will need. ADC does not make part recommendations. If
Jet 20" Woodworking Bandsaw
Catalog p.243A true resawing workhorse. This bandsaw is capable of handling blade widths from 1/8" to 1 1/2". Precision roller bearing blade guides and direct-reading blade tension scale. 708754B comes with foot brake as a standard feature.
| Product # | Description | |
|---|---|---|
| JT-708754B | 3 HP, 1 Ph, 230V motor * | |
| JT-714850 | 5 HP, 1 Ph, 230V motor, New Style * |
- J
- J
Jet J 18" Woodworking Bandsaw
Catalog p.243This very popular bandsaw carries all the same features as the 20" bandsaw listed above except for the foot brake.
| Product # | Description | |
|---|---|---|
| JT-714700 | 1 3/4 HP, 1 Ph, 115/230V (wired 115V) motor, quick tension release ◊ ★ In stock | |
| JT-714750 | 3 HP, 1 Ph, 230V ◊ ★ In stock |
Jet 14" Deluxe Woodworking Bandsaw
Catalog p.243Features upper and lower micro-adjustable blade guides, blade tensioning scale, and durable nine-
| Product # | Description | |
|---|---|---|
| 708754B | spoke wheel. | |
| 714700 | JT-708115K* 1 HP, 1 Ph, 115/230V (wired 115V) motor |
Jet 14" SFX Woodworking Bandsaw
Catalog p.243Features a deeper table with a massive 360 sq. in. of cast iron work surface for greater work piece support. Over 13" of resaw capacity for cutting large pieces of wood. Tool-less, independently adjustable, upper and lower ball bearing blade guides. Large machined aluminum fence surface with easily visible measurements for the most accurate cutting. Heavy duty base for maximum stability when sawing large work pieces. M Model # Description Each J HP, 1 Ph,
| Product # | Description | Case Qty | |
|---|---|---|---|
| JT-714400K | * | ||
| 115/230V | (wired 115V) motor |
Ball B Bearing Blade Guide Set
Catalog p.243Durable dual bearing system. Micro-adjustable above and below table. Three bearing contact points maximize support and minimize friction. Kit contains upper and lower guide assemblies, mounting
Sold per set
| Product # | Description | |
|---|---|---|
| 708115K | studs, adapter blocks and all mounting hardware. Fits most import 14" bandsaws with round upper | |
| 714400K | ||
| JT-708127 | Ball bearing blade guide set | |
| 708127 |
- shaft.
- See page 239 for additional bandsaw accessories.
- four-sided knife inserts
Jet Model 35X Shaper
Catalog p.243Large precision ground cast iron table predrilled for power feeder mounting. Independently adjustable left and right extruded aluminum fences with micro adjust control. Comes standard with 1 1/4" spindle with reversible speeds. Also available with 5 HP, 1PH and 3PH motors.
| Product # | Description | |
|---|---|---|
| JT-708323 | 3 HP, 1 PH, 230V motor ★ In stock |
Jet Model 25CS Shaper
Catalog p.243Features a large 25" x 18" solid cast iron table with an additional 25" x 7" extension. Four fully adjustable hold-downs on table and fence help hold workpieces steady while shaping. Comes with 1/2" and 3/4" interchangeable spindles, 1/4" and 1/2" router collets, T-slot mitre gauge.
| Product # | Description | |
|---|---|---|
| JT-708322 | 3 HP, 1 PH, 230V motor ◊ ★ In stock | |
| 708322 |
- 708323
- Available while supplies last.
- Free freight on Jet, Powermatic
- Order must be prepaid, and shipping to
- a business to qualify for free freight.
- Notice: As equipment ages, there is at times a need to replace parts. If you are in need of parts for your
- Jet or Powermatic equipment, please call JPW Tech Support at 1-800-274-6846 or go online. They can
- assist you with determining which part (s) you will need. ADC does not make part recommendations. If
Powermatic Model 719T Tilt Table Mortiser
Catalog p.244A mortiser of heavy-duty cast iron construction and a powerful 1 hp motor for the most demanding jobs. The heavy rack and pinion system utilizes a spring loaded six position adjustable handle. The large 20 1/4" x 7" table will adjust to any angle between 0 and 35° and can also move left to right and forward and back. Adjustable linear stops and flip down stop allow for precision repeatability. Equipped with 1/2" drill chuck and key.
| Product # | Description | |
|---|---|---|
| 1791091 | PM-1791264K* 1 HP, 1 Ph, 115/230V (wired 115V) motor |
- 17
Powermatic Mortiser Accessories
Catalog p.244Sold each
| Product # | Description | |
|---|---|---|
| PM-1791091 | 1/4" Chisel and bit | |
| PM-1791094 | 1/2" Chisel and bit | |
| PM-1791092 | 5/16" Chisel and bit | |
| PM-1791095 | 3/4" Chisel and bit | |
| PM-1791093 | 3/8" Chisel and bit |
- 1791092
Southeast Tool Chisel and Bits - 1/4" - 5/8" have 3/4" shoulder on chisel, 3/4" has 1 1/8"
Catalog p.244| Product # | Description | |
|---|---|---|
| SEHMC250 | 1/4" Chisel and Bit 1/2" Chisel and Bit ◊ | |
| SEHMC625 | 5/8" Chisel and Bit ◊ | |
| SEHMC750 | 3/4" Chisel Only ◊ |
Powermatic Model PM2800 18" Drill Press
Catalog p.244A variable speed drill press designed with the woodworker in mind. Loaded with convenient features that other dill presses do not offer. The twin LED lights are designed not to cast shadows on the workpiece. The twin lasers help pinpoint exactly on the workpiece. Tilting table expands from 16"x 14" to 16"x 26". Variable speed system adjusts quickly and easily. (400 - 3000 RPM) 5/8" keyless chuck, 6" spindle travel.
| Product # | Description | |
|---|---|---|
| PM-1792800B | 1 HP, 1 Ph, 115/230 (wired 115V) motor, 6" quill travel ★ In stock | |
| PM-1792820 | 1 HP, 1 Ph, 115/230 Gear Driven (150-3600 RPM) ★ In stock |
Jet 17" Floor Mount Drill Press
Catalog p.244Features sixteen speed spindle design providing 230 - 3630 RPM and a 1/2" diameter external positive depth stop with dual-nut locking feature for quick adjustment. Adjustable tension spindle return spring, 5/8" drilling capacity, 4 3/8" spindle travel. 14 1/2" x 18 1/2" table ensures adequate support for all your projects. Features laser guide system to help pinpoint drilling location, and a built-in LED work light.
| Product # | Description | |
|---|---|---|
| JT-716300 | 3/4 HP, 1 Ph, 115V motor ★ In stock | |
| 716300 | ||
| 716250 | Jet 15" Floor Mount Drill Press | |
| JT-716250 | 3/4 HP, 1 Ph, 115V motor ★ In stock |
- Features 16 spindle speeds ranging from 200-3630 rpm. Side depth stop adjustment is fast and
- precise. Spindle travel is 3 1/8". Features 5/8" chuck, laser guide system and LED work light.
- Available while supplies last.
- Free freight on Jet and Powermatic
- Order must be prepaid, and shipping to a business to
- qualify for free freight.
- Notice: As equipment ages, there is at times a need to replace parts. If you are in need of parts for your
- Jet or Powermatic equipment, please call JPW Tech Support at 1-800-274-6846 or go online. They can
- assist you with determining which part (s) you will need. ADC does not make part recommendations. If
Jet Oscillating Spindle Sander
Catalog p.245Floor Model Oscillating Spindle Sander is the perfect solution for the radius pieces you can't send with your edge sander. Has baffles under the table to improve dust collection and 4" dust port. Integrated storage provides designated slots for spindles and table inserts.
| Product # | Description | |
|---|---|---|
| JT-723950 | Floor Model Oscillating Spindle Sander ◊ ★ In stock | |
| 708447 | Jet Model OES-80CS Oscillating Sander | |
| 723950 | ||
| JT-708447 | 1 1/2 HP, 1PH, 115/230V (wired 115V) motor ◊ ★ In stock |
- 6" X 89" oscillating belt sander sands in both horizontal and vertical position or at any angle in between.
- Quick release lever and tracking control dial are conveniently located for replacing and tracking belts.
- Cast iron table moves up or down. Features an adjustable outer drum support table for contour sanding.
Powermatic Powerfeeders
Catalog p.245The Powermatic Powerfeeder units are universally adaptable to a variety of woodworking machines. The variable head positioning makes it adaptable to a wide range of woodworking set-ups. Soft but tough rubber driving wheels are chain connected for continuous and consistent drive. Complete with stand and all mounting hardware.
Sold each
| Product # | Description | |
|---|---|---|
| PM-1790818 | 1/4 HP, 1 PH, 115V, 3 wheel (JR. Feeder) | |
| PM-1790811 | 1 HP, 3 PH, 230V, 4 wheel 1 HP, 1 PH, 115V, 4 wheel ★ In stock | |
| PM-6289118 | Powerfeeder replacement wheels |
Replacement Rollers for Powerfeeders
Catalog p.245"Super Feed" high traction, precision molded tires mounted on diecast and fabricated aluminum "Super Feed" hubs without adhesives or bonding. Tires are formulated for increased toughness, traction and abrasion resistance. These tough, long-lasting tires give better feed control for higher output and are available for powerfeeders, edgebanders, etc. We stock tires and hubs for Powermatic feeders either assembled or unassembled. The #70 yellow tire is a firm long-wearing tire suitable for unfinished wood such as oak, pine and etc. The #50 blue tire is a softer tire to provide more traction for slick material such as melamine, vinyl and etc.
Sold each
| Product # | Description | |
|---|---|---|
| WR-SFTH-75 | #70 yellow tire and hub assembly | |
| WR-SFTH-55 | #50 blue tire and hub assembly | |
| WR-SFT-70 | #70 yellow tire only (4 5/8" x 1 3/4" wide) | |
| WR-SFT-50 | #50 blue tire only (4 5/8" x 1 3/4" wide) | |
| WR-SFH-1 | Aluminum Hub (fits both #70 and #50 tires) | |
| WR-SFMT-1040 | Tire mounting tool |
Conversion Web Kit
Catalog p.245Replace the tires on your powerfeeder with these solid polyurethane belts. Assures the very best control for feeding short work pieces. Available for 3 roll powerfeeders only. Kit includes belts, hubs, required tool and hardware. Note: Smaller sizes available for Feeders measuring 10"-10 1/4" center to center of outside wheels.
Sold per kit
Sold per belt
| Product # | Description | |
|---|---|---|
| WR-SFB-1001 | Replacement belt | |
| WR-1001-01A | 3 roll conversion web kit |
- When converting a roller feed to a belt feeder,
- measuring dimension "X" with no tension in the
- rollers.
- (10 5/8"-11"), Belt Conversion Kit #1001-01A
- will fit on your 3 or 4 roll feeder.
- Free freight on Jet, Powermatic
- Order must be prepaid, and shipping to
- a business to qualify for free freight.
- Available while supplies last.
- Notice: As equipment ages, there is at times a need to replace parts. If you are in need of parts for your
- Jet or Powermatic equipment, please call JPW Tech Support at 1-800-274-6846 or go online. They can
- assist you with determining which part (s) you will need. ADC does not make part recommendations. If
- them for you. All special order items are non-returnable. Thanks for understanding.
Powermatic and Jet Machines and Accessories
Jet Cyclone Dust Collectors
Catalog p.246The cyclone's 2 stage separation provides more CFM than comparable horsepower single stage units. Heavy debris is pulled down and captured in steel drum before debris stream reaches the filter. Features quick release levers on the steel drum, a double paddle manuel cleaning system that quickly cleans the pleated filter, swivel casters and a remote control with timer settings for automatic shutoff.
| Product # | Description | |
|---|---|---|
| JT-717520 | 2 HP, 1 Ph, 230V motor ★ In stock | |
| JT-717530K | 3 HP, 1 Ph, 230V motor ★ In stock |
Powermatic Model PM 1900TX Dust Collector
Catalog p.246Dust collectors help reduce the fine dust particles that can pose a health risk as well as keep the work area free of dust buildup. Large 10 cu. ft. bag capacity. An air flow of 1900 CFM is strong enough to use with planers, wide belt sanders, table saws and most other woodworking machinery. Features the exclusive TurboCone which improves chip separation to prevent clogging the filter and increases pack efficiency of the collector bag. Multiple connection port capabilities allows use as a central dust collection system for the entire woodworking shop.
| Product # | Description | |
|---|---|---|
| 717520 | 717530K | |
| PM-1792071K | 3 HP, 1 Ph, 230V motor ★ In stock | |
| PM-1792073K | 3 HP, 3 Ph, 230V motor ★ In stock |
Jet Model 1100VX Dust Collector
Catalog p.246Features quick-connect collection bags with elastic band for easy installation. Strong enough to handle collection of wood chips and sawdust. 1,100 CFM capacity. Vortex cone aids in quick fallout of chips into the collector bag instead of clogging the filter bag.
| Product # | Description | |
|---|---|---|
| JT-708657K | 1 1/2 HP, 1 Ph, 115/230V (wired 115V) motor with vortex cone ★ In stock | |
| 708657K | you do not want to order your parts from JPW, please provide us with part numbers and we will order |
- Free freight on Jet, Powermatic
- Order must be prepaid, and shipping to a
- business to qualify for free freight.
- Notice: As equipment ages, there is at times a need to replace parts. If you are in need of parts for your
- Jet or Powermatic equipment, please call JPW Tech Support at 1-800-274-6846 or go online. They can
- assist you with determining which part (s) you will need. ADC does not make part recommendations. If
- them for you. All special order items are non-returnable. Thanks for understanding.
Jet Dust Collection Accessories
Catalog p.246All Jet plastic fittings have antistatic compound added for reducing static electrical charge. Jet offers one of the largest selections of accessories for designing just about any dust collection system. We
Sold each
| Product # | Description | |
|---|---|---|
| JT-JW1031 | 4" dia. x 10'black flex hose ★ In stock | |
| JT-JW1032 | 4" dia. x 20'black flex hose ★ In stock | |
| AD-M6772-1 | 4-5" Stainless Steel Clamp 4" dia. wire hose clamps | |
| JT-JW1019 | 4" dia. flex hose splice | |
| JT-JW1007 | 4" dia. plastic blast gate | |
| JT-JW1142 | 4" dia. aluminum blast gate 4" dia. elbow | |
| JT-JW1013 | 4" dia. "T" fitting | |
| JT-JW1015 | 4" dia. "Y" fitting | |
| JT-JW1043 | 4" Straight connector for plastic fittings |
Additional handling charge applies. Refer to page 286 for freight rates.
- M6772-1
- JW1031 have a few in stock as listed below.
- JW1032
- JW1013 JW1015
Material Handling Equipment
Jet JTX Series Pallet Truck
Catalog p.247Heavy duty pallet truck offers 8,000 pound capacity and 210° turning radius. Comes equipped with 8" x 2" poly over aluminum steer wheels featuring double sealed bearings, one piece cast iron pump and entry/exit rollers. Overall dimensions are 27" wide by 48" long with a 3 1/4" lowered height. Two year warranty.
Sold each
| Product # | Description | |
|---|---|---|
| JT-140800 | 8,000 lb. Pallet Truck (in stock) ◊ |
Jet Flat Top Cart
Catalog p.247Heavy duty resin utility cart has a flat top and bottom shelf. This cart is 44"W x 25"L and can handle up to 500 lbs. loaded evenly across both shelves. Comes with 2 swivel and 2 ridgid castors.
Sold each
| Product # | Description | |
|---|---|---|
| JT-141017 | Flat Top 2 shelf Cart | |
| 141017 | assist you with determining which part (s) you will need. ADC does not make part recommendations. If |
- Notice: As equipment ages, there is at times a need to replace parts. If you are in need of parts for your
- Jet or Powermatic equipment, please call JPW Tech Support at 1-800-274-6846 or go online. They can
- them for you. All special order items are non-returnable. Thanks for understanding.
5,500 lb. Pallet Truck
Catalog p.247A heavy-duty pallet truck with 5,500 lb. lifting capacity. Equipped with 48" forks featuring entry/ exit rollers and dual front load wheels. Heavy duty steel steering wheels with polyurethane rims. Quick lift (QL) lifts three times as fast on loads up to 500 lb.
Sold each
| Product # | Description | |
|---|---|---|
| AD-27485500 | Pallet truck (in stock) ◊ | |
| AD-27485500-QL | Pallet Truck (in stock) 27"w. x 48"L. Quick Lift ◊ | |
| AD-20485500 | Pallet Truck (in stock) 20 1/2"w. x 48"L. ◊ |
Polymer Mobile Carts
Catalog p.247Industrial strength carts ideal for many industrial and commercial material handling applications. These rugged and durable heavy-duty carts offer a hefty 550 lb. load capacity, and feature a set of 2 swivel and 2 rigid heavy duty casters. Available in gray only. For an extra smooth and quiet rolling cart, consider exchanging the casters for our Super-Glide Casters listed on page 169 of this catalog.
Sold per cart
| Product # | Description | |
|---|---|---|
| QS-PC4026-33 | Recessed Top, 2 Shelf Rolling Cart, 40"L. x 26"w. x 32 1/2"h. | |
| QS-PFTC4026-33 | Flat Top, 2 Shelf Rolling Cart, 40"L. x 26"w. x 32 1/2"h. |
- Oversize Package charge applies.)
- Refer to page 286 for freight rates.
